Speed Proportional Steering Solenoid Over-Temperature

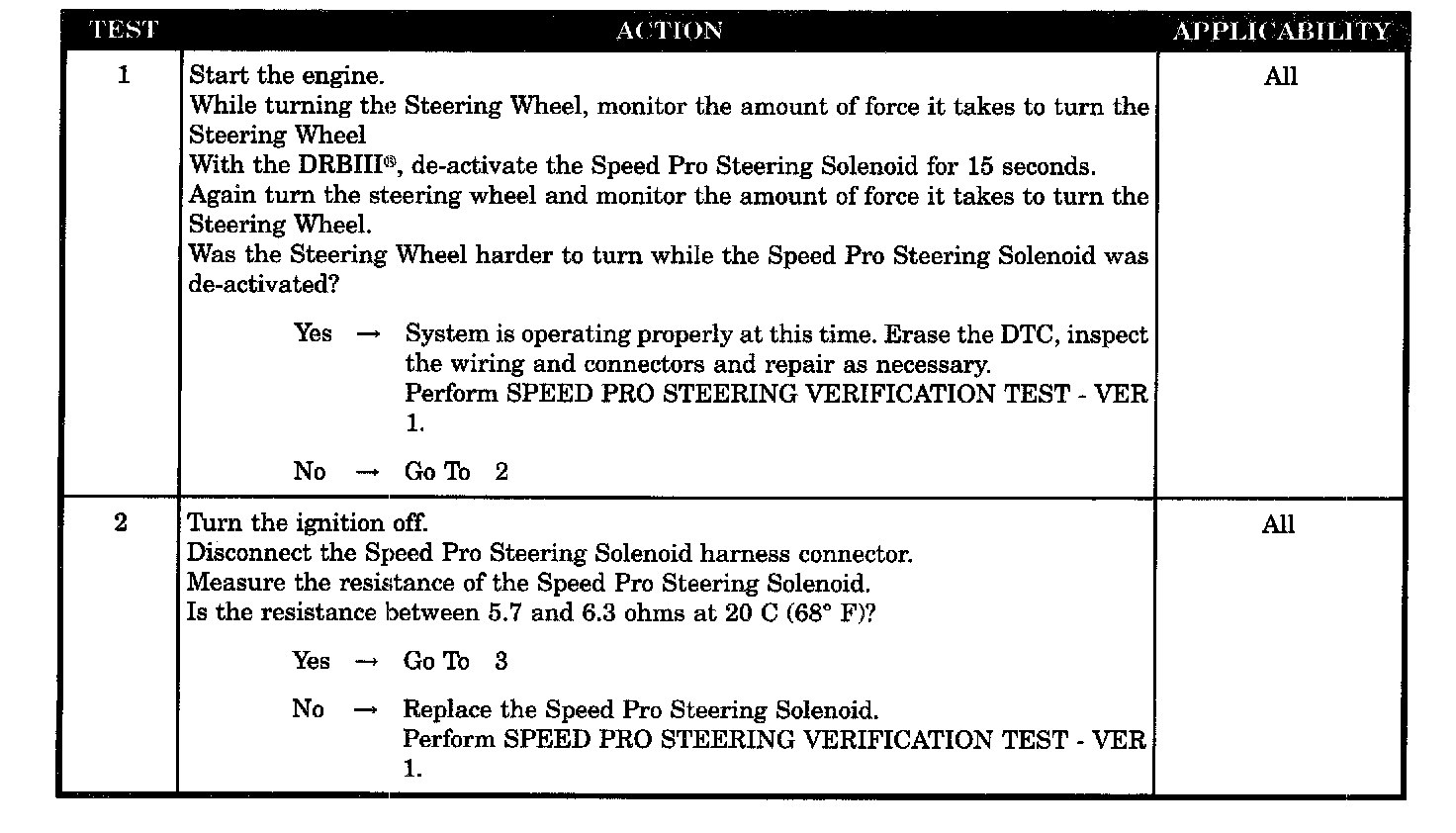

Test 1 - 2:

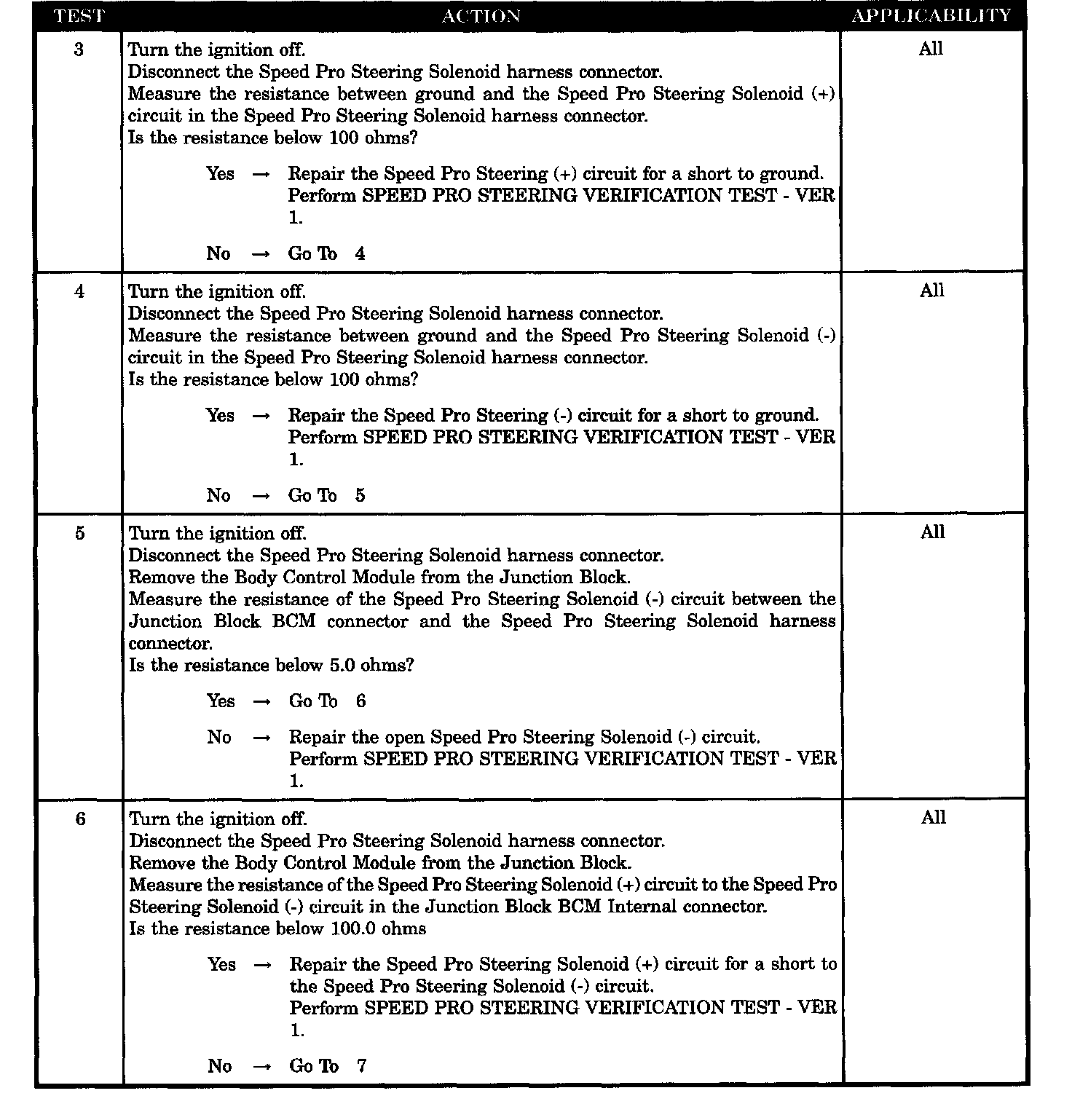

Test 3 - 6:

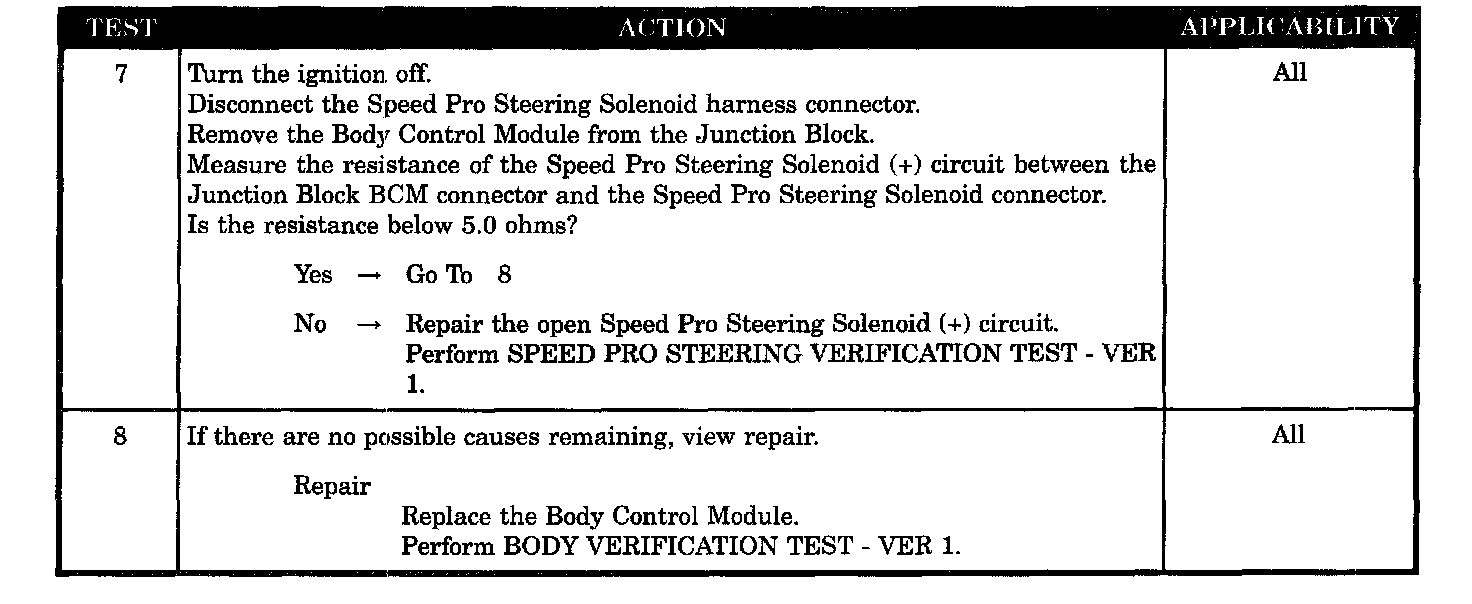

Test 7- 8:

SYMPTOM
SPEED PRO STEERING SOLENOID CIRCUIT OPEN/SHORTED TO GROUND

WHEN MONITORED
With ignition on.

SET CONDITION
BCM detects no current flowing through the speed pro steering solenoid when it attempts to drive it.

POSSIBLE CAUSES
- Speed pro steering solenoid (-) circuit open
- Speed pro steering solenoid (-) circuit short ground
- Speed pro steering solenoid (+) circuit open
- Speed pro steering solenoid (+) circuit short ground
- Speed pro steering solenoid (+) circuit shorted to (-) circuit
- Open/shorted speed pro steering solenoid
- Speed proportional steering check open/short
- Body control module
