No PCI Transmission

Test 1:

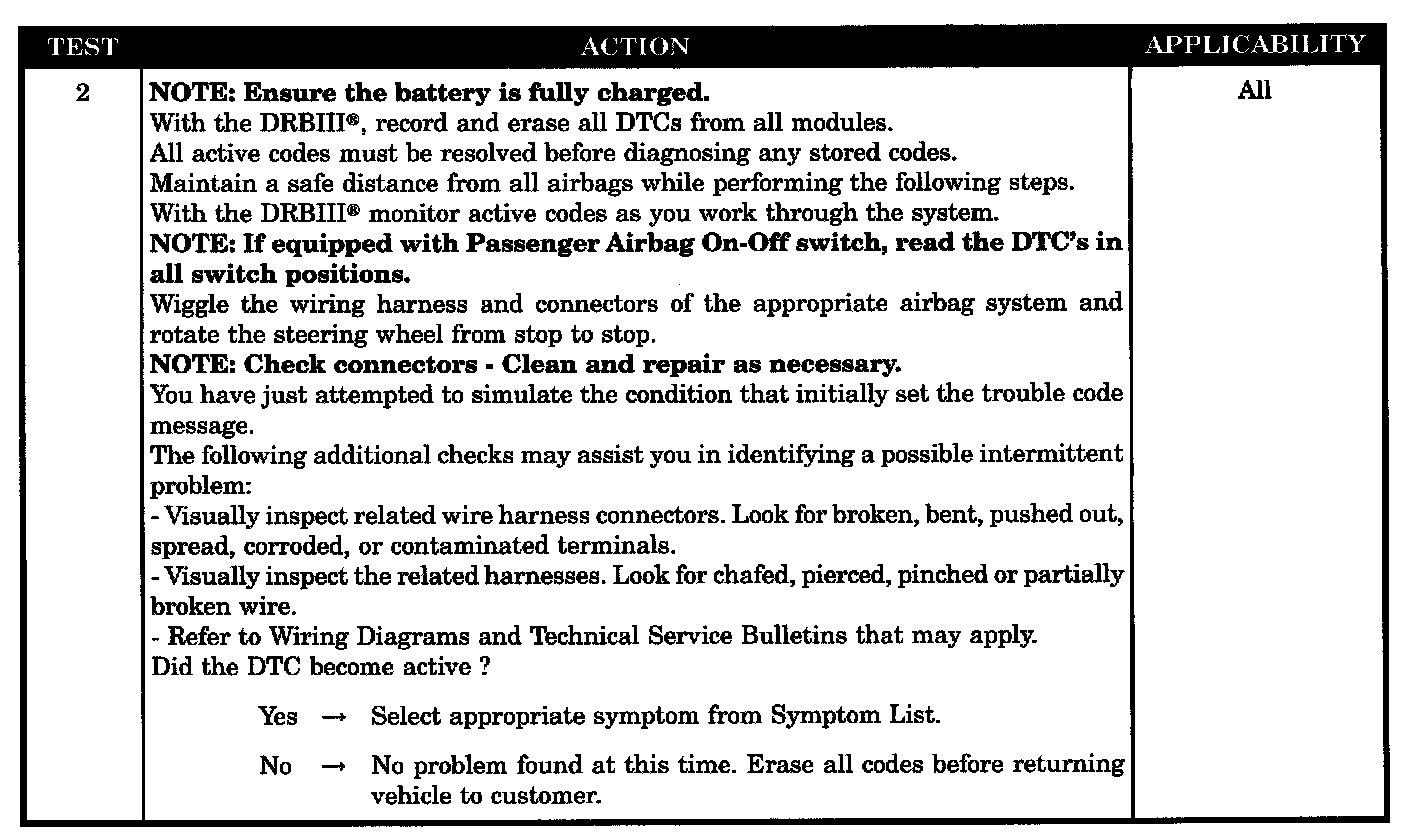

Test 2:

SYMPTOM
NO PCI TRANSMISSION

WHEN MONITORED
With the ignition on and the module transmitting information on the PCI BUS.

SET CONDITION
The code will set if the on-board diagnostic cannot detect the module transmitting information on the PCI BUS for 4 consecutive seconds. NOTE: Any PCI Bus Failure will may cause a stored code to set.


POSSIBLE CAUSES
- Airbag Control Module - ACM
- Left Side Impact Airbag Control Module - LSIACM
- Right Side Impact Airbag Control Module - RSIACM
- Stored code or intermittent condition
- Active code present
