Passenger Door Central Lock (Arm)/Unlock (Disarm) Switch Failure

Test 1 - 2:

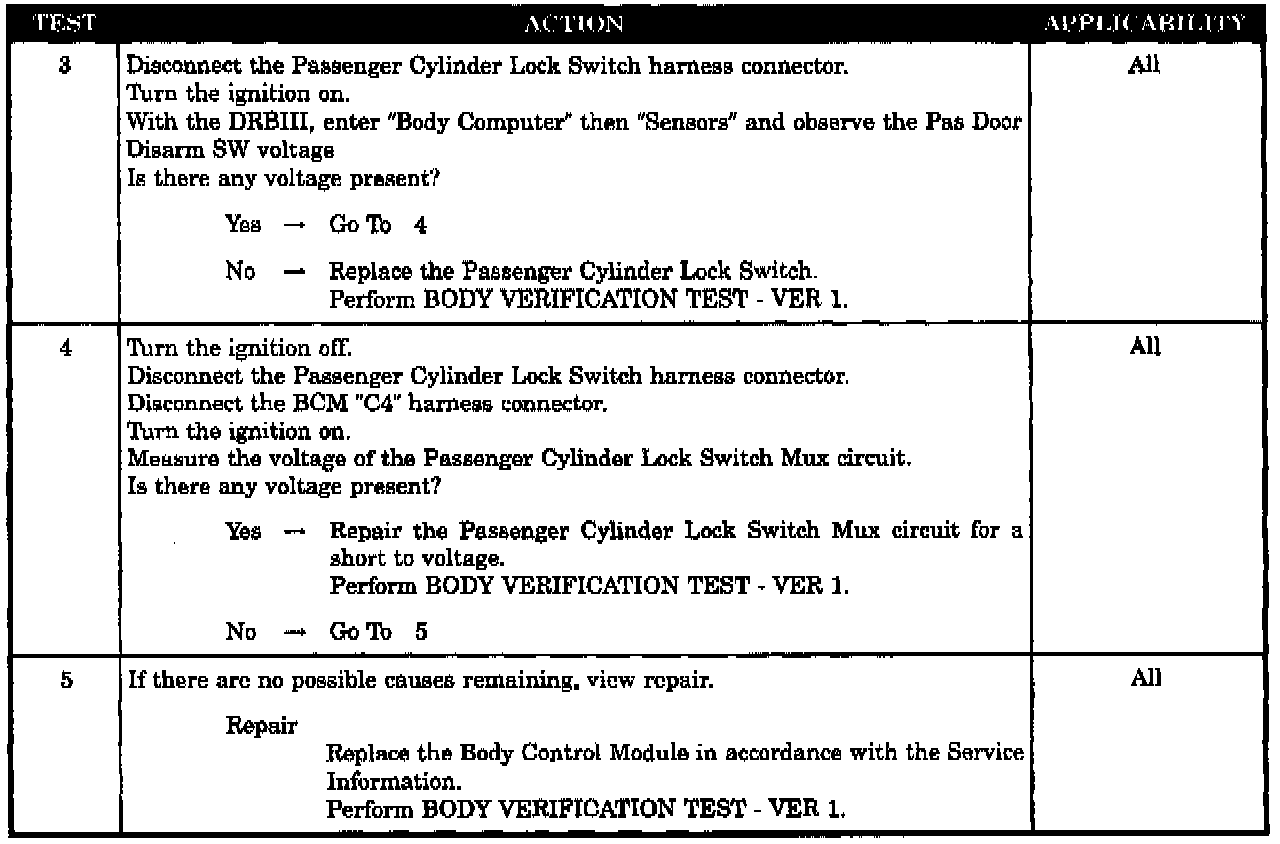

Test 3 - 5:

SYMPTOM
PASSENGER DOOR CENTRAL LOCK (ARM)/UNLOCK (DISARM) SWITCH FAILURE

WHEN MONITORED
Continuously

SET CONDITION
The BCM detects a signal on the input for over 10 seconds.

POSSIBLE CAUSES
- CHECKING DTC PRIORITY
- PASSENGER CYLINDER LOCK SWITCH BINDING
- PASSENGER CYLINDER LOCK SWITCH SHORTED TO VOLTAGE
- PASSENGER CYLINDER LOCK SWITCH MUX CIRCUIT SHORTED TO VOLTAGE
- BODY CONTROL MODULE - PASSENGER CYLINDER LOCK SWITCH FAILURE
