Driver Door Central Lock (Arm)/Unlock (Disarm) Switch Failure

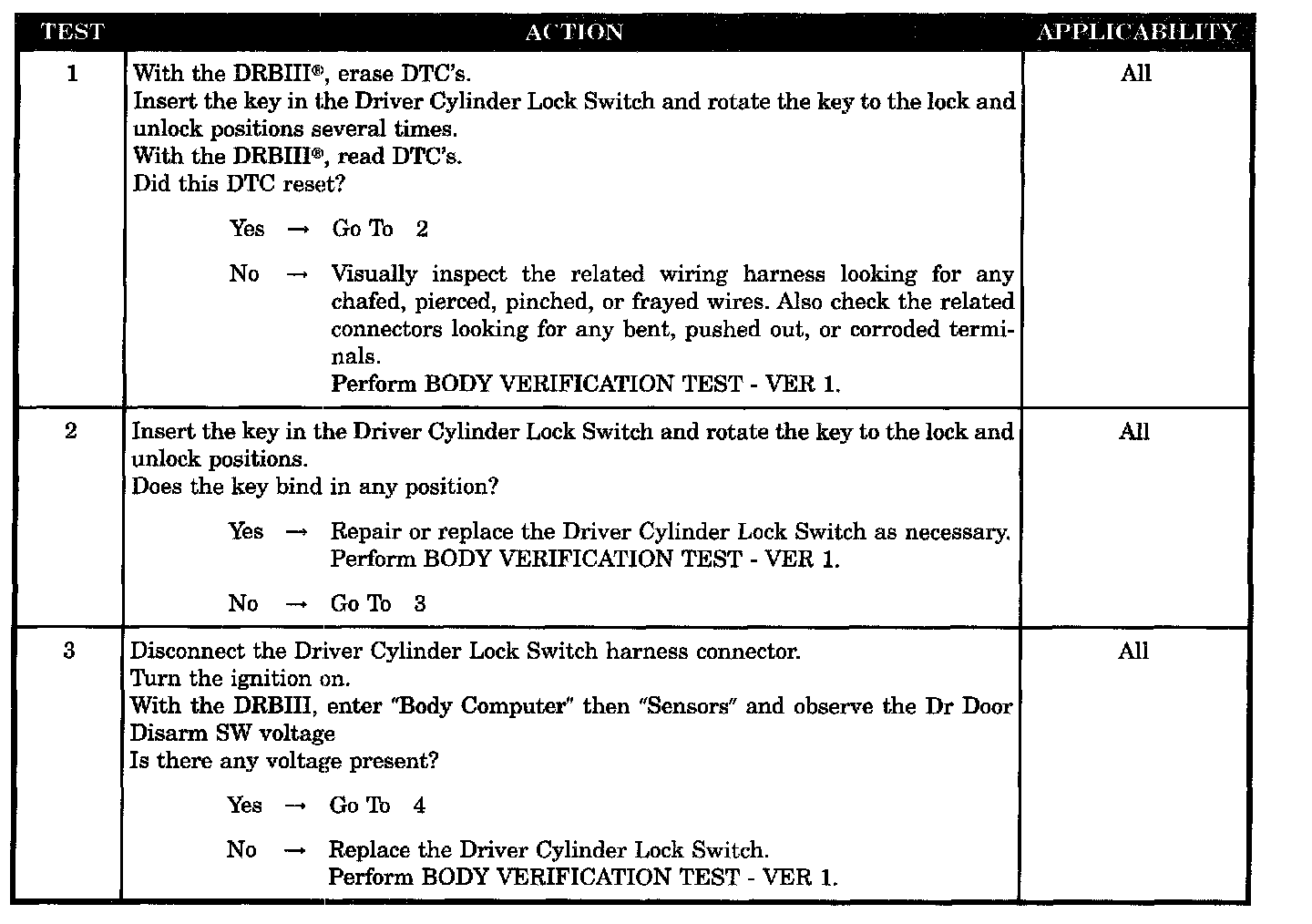

Test 1 - 3:

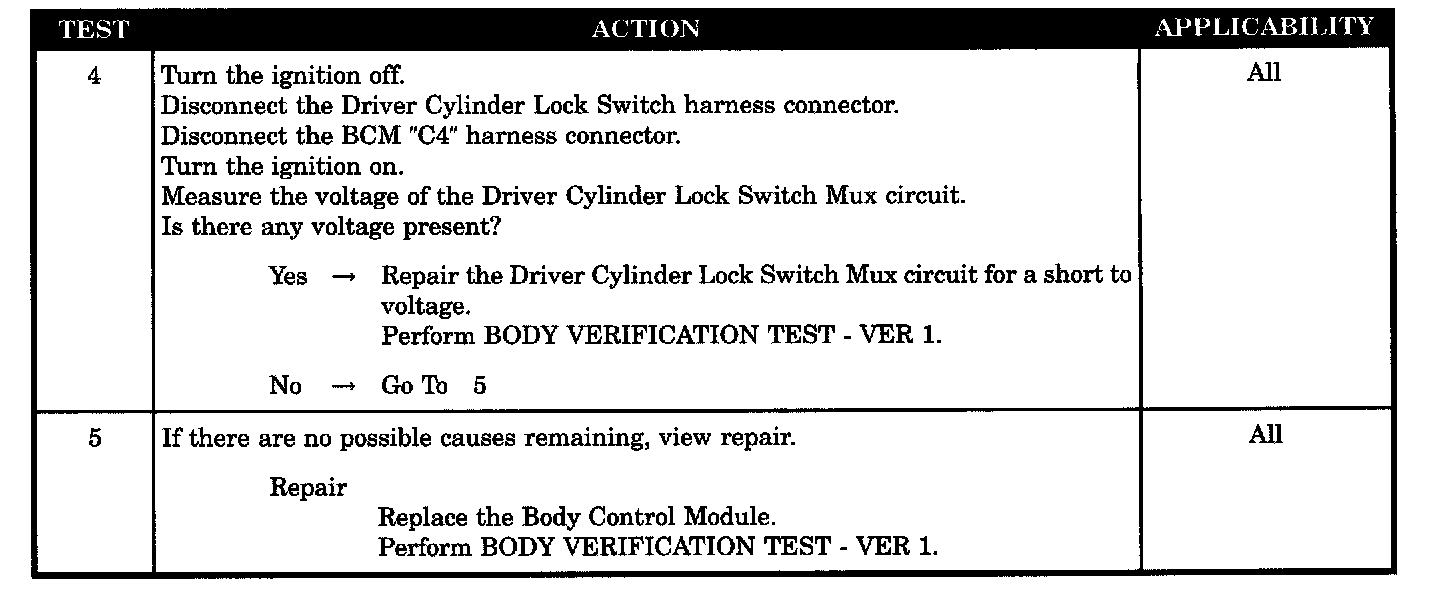

Test 4 - 5:

SYMPTOM
DRIVER DOOR CENTRAL LOCK (ARM)/UNLOCK (DISARM) SWITCH FAILURE

WHEN MONITORED
Continuously

SET CONDITION
The BCM detects a signal on the input for over 10 seconds.

POSSIBLE CAUSES
- Checking DTC priority
- Binding driver cylinder lock switch
- Driver cylinder lock switch shorted to voltage
- Driver cylinder lock switch MUX circuit shorted to voltage
- Body control module-driver cylinder lock switch failure
