A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Overhead Console
>>
No PCM Messages Received
No PCM Messages Received

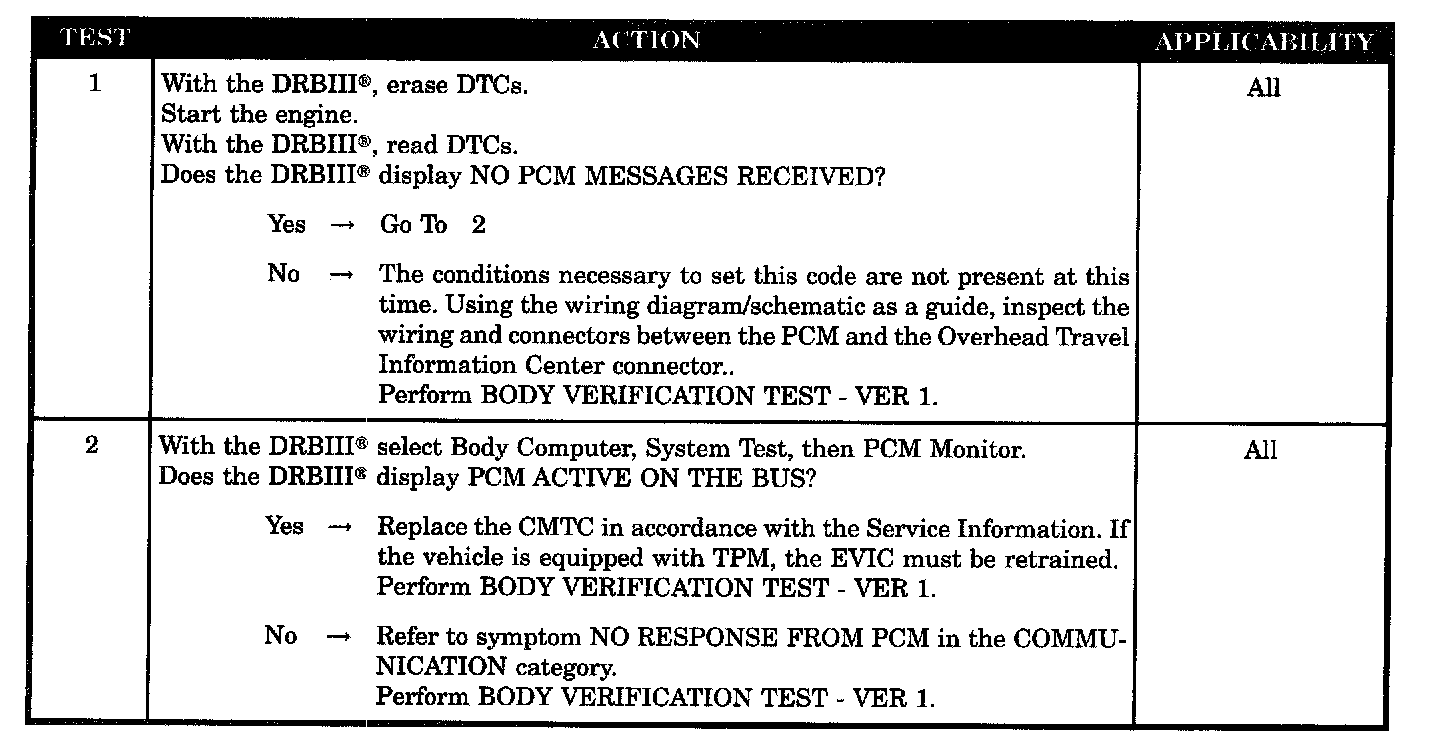

Test 1 - 2:
SYMPTOM
NO PCM MESSAGES RECEIVED
POSSIBLE CAUSES
-
Intermittent condition
-
No response - PCI BUS - PCM
-
Compass/mini-trip computer
