Overhead Console
>>
No BCM Messages Received
No BCM Messages Received

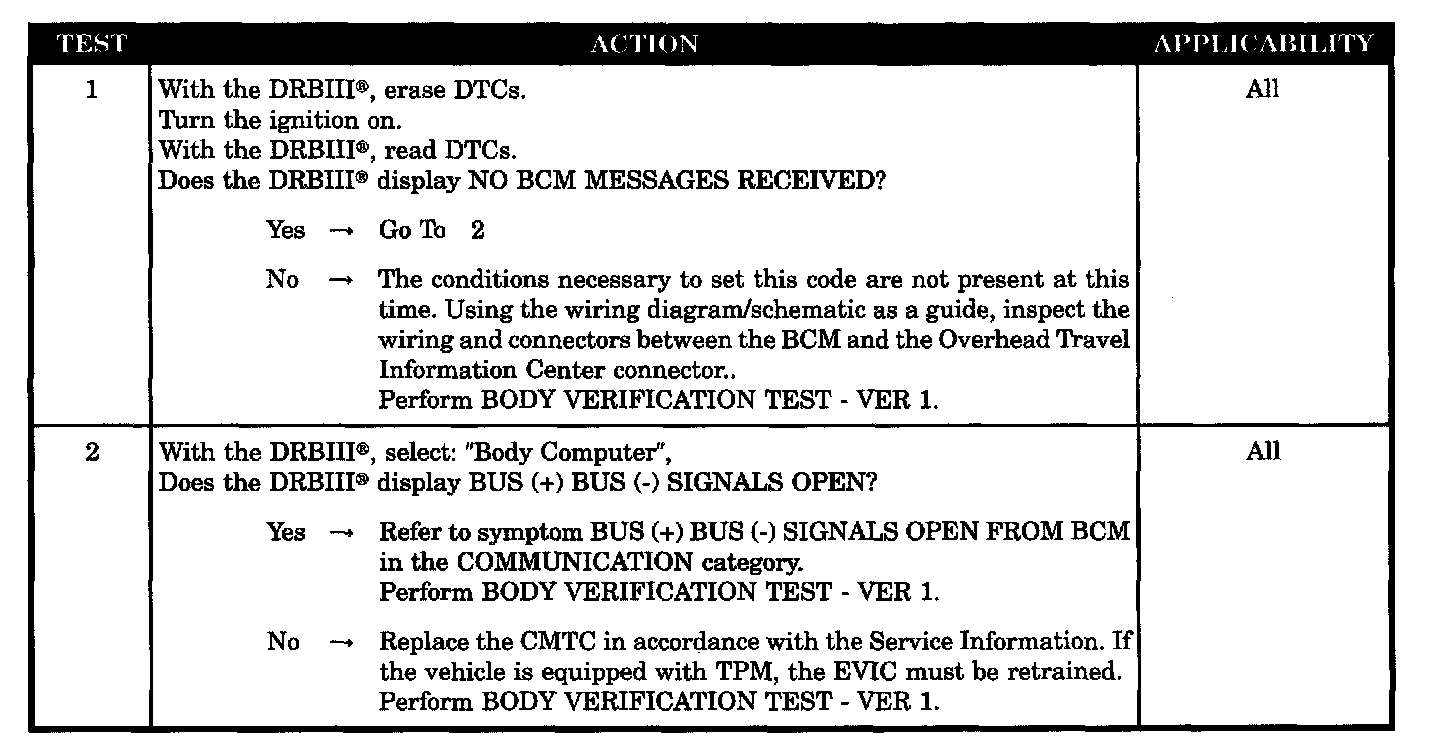

Test 1 - 2:
SYMPTOM
NO BCM MESSAGES RECEIVED
POSSIBLE CAUSES
-
Intermittent condition
-
No response - PCI BUS - BCM
-
Compass/mini-trip computer
