Home >> Chrysler >> 2002 >> Concorde V6-2.7L VIN R >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Overhead Console >> Compass Test Failure

Compass Test Failure

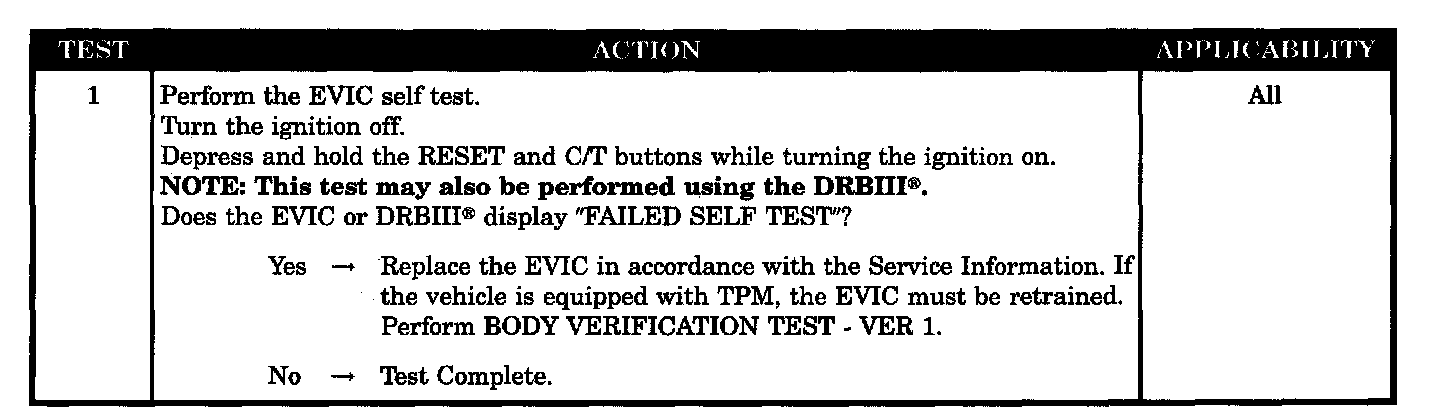

Test 1:

SYMPTOM
COMPASS TEST FAILURE

POSSIBLE CAUSES
- Electronic vehicle information center
