Rear Riser Sensor Out of Range High

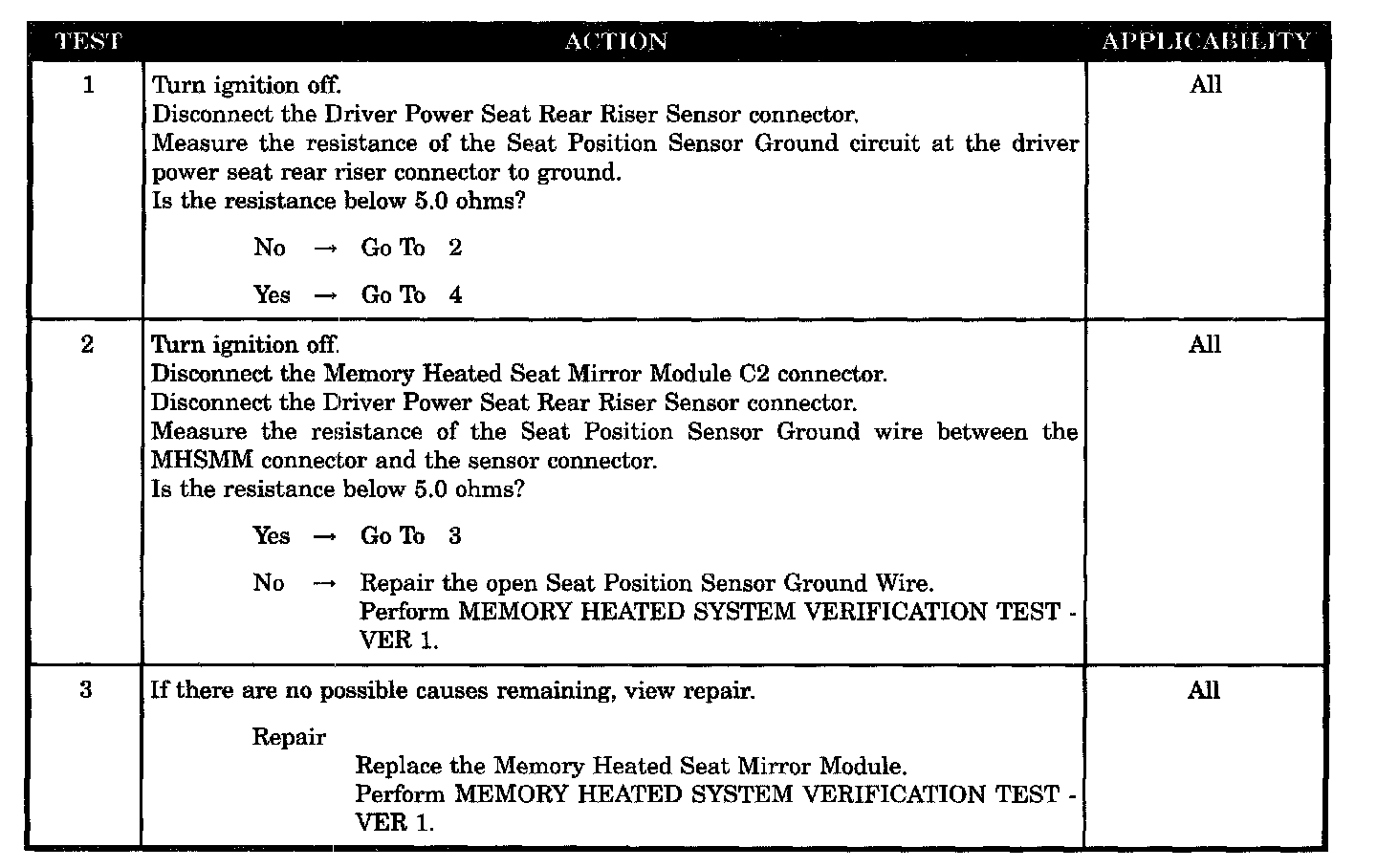

Test 1 - 3:

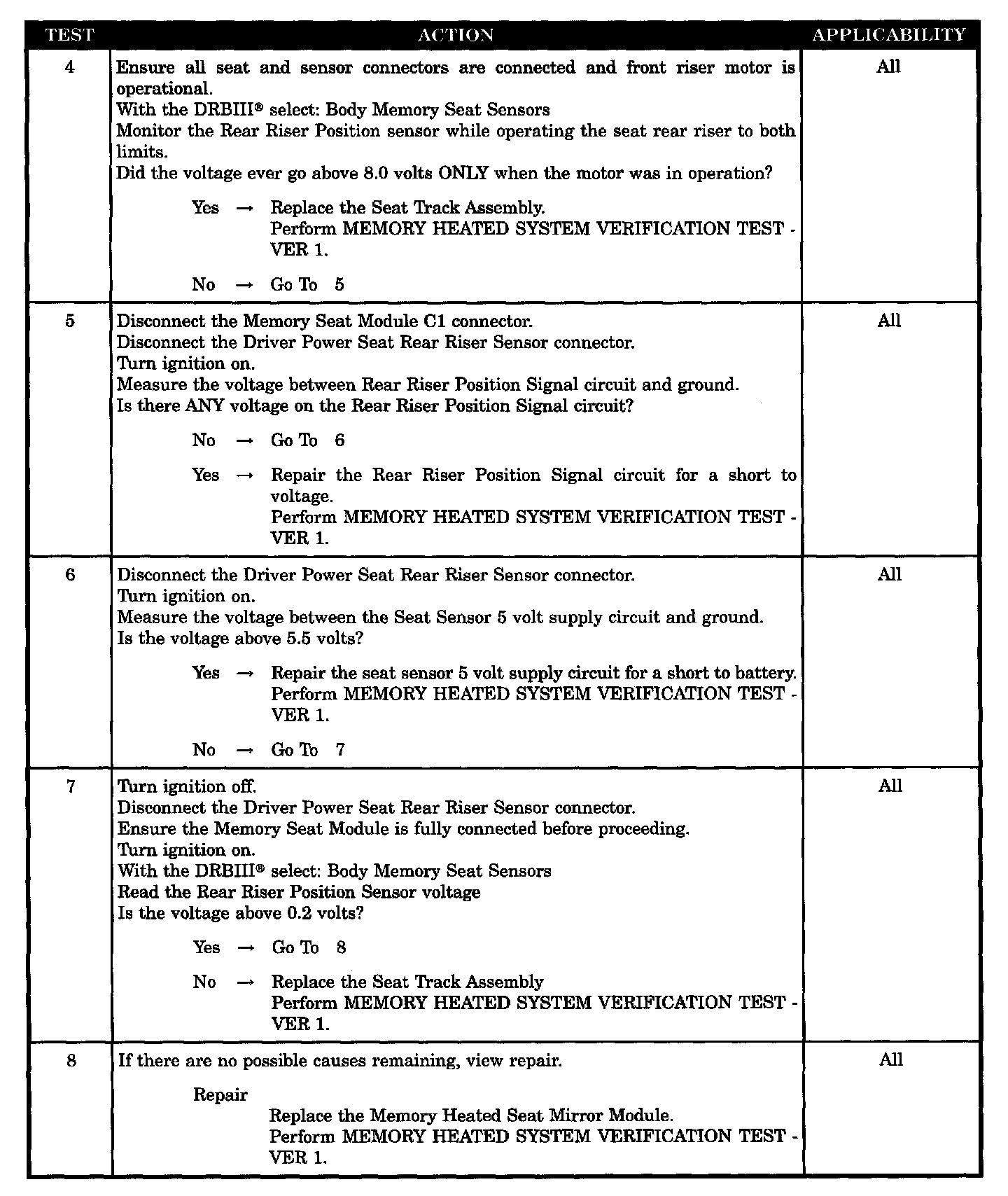

Test 4 - 8:

SYMPTOM
REAR RISER SENSOR OUT OF RANGE HIGH

WHEN MONITORED
Ignition on.

SET CONDITION
This condition is immediately set when the seat motor potentiometer feeds a value higher than the Memory Heated Seat/Mirror Module has stored in EEPROM.

POSSIBLE CAUSES
- Seat sensor ground wire open
- Rear riser sensor high
- Rear riser position signal shorted to voltage
- Seat sensor 5 volt supply shorted to battery
- Rear riser position signal shorted to motor
- Memory heated seat mirror module
- Memory heated seat mirror module
