Rear Riser Down Position Stuck

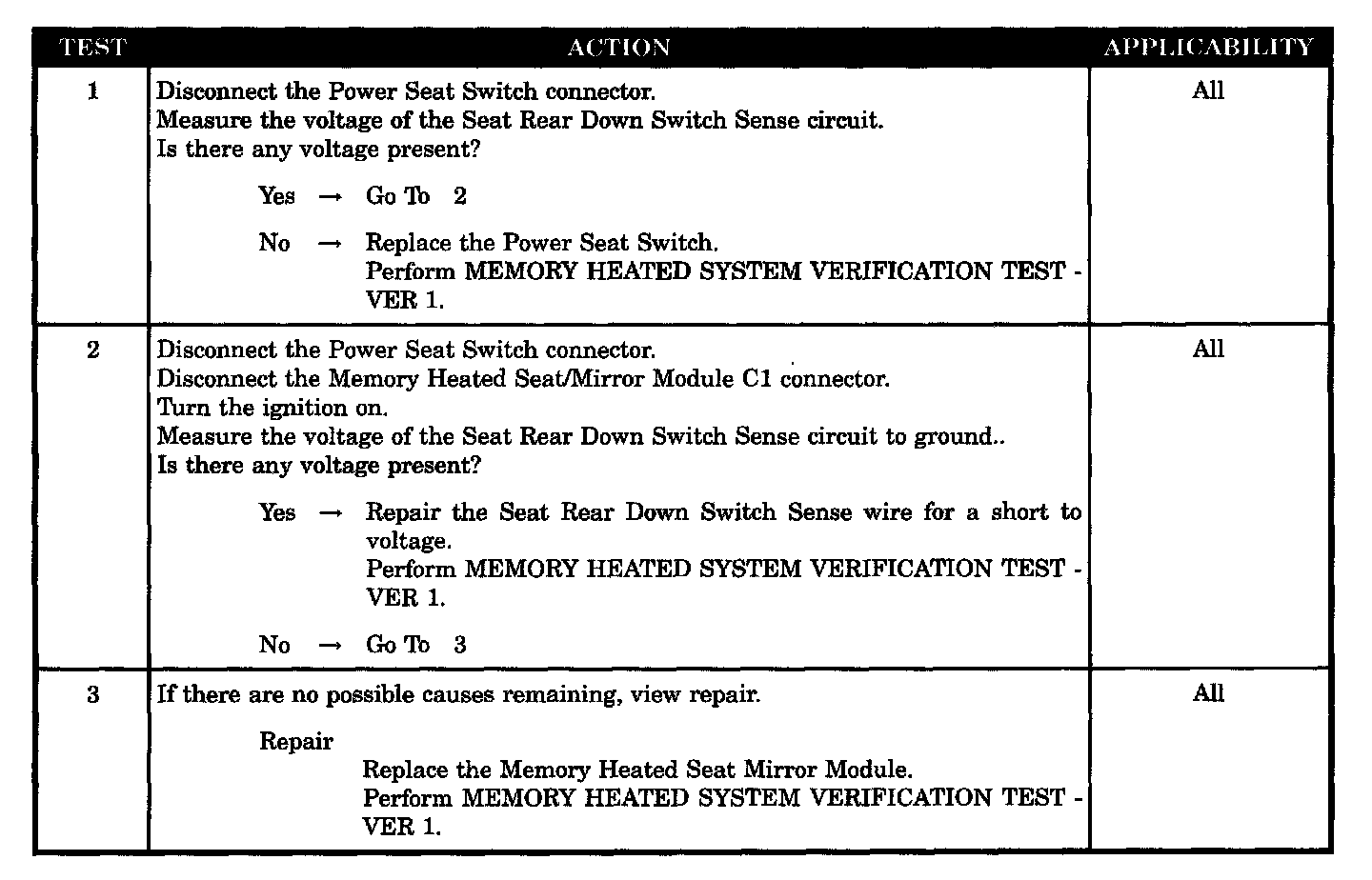

Test 1 - 3:






SYMPTOM
REAR RISER DOWN POSITION STUCK

WHEN MONITORED
Ignition on.

SET CONDITION
If the seat switch is active for 30 seconds, this code will set and the MHSMM will ignore the input until the state has changed. Once the stuck condition is removed, the seat will resume to normal operation. Code will remain for 20 ignition cycles.

POSSIBLE CAUSES
- Seat rear down switch sense wire shorted to voltage
- Driver power seat switch
- Memory heated seat mirror module
