Front Riser Sensor Out of Range High

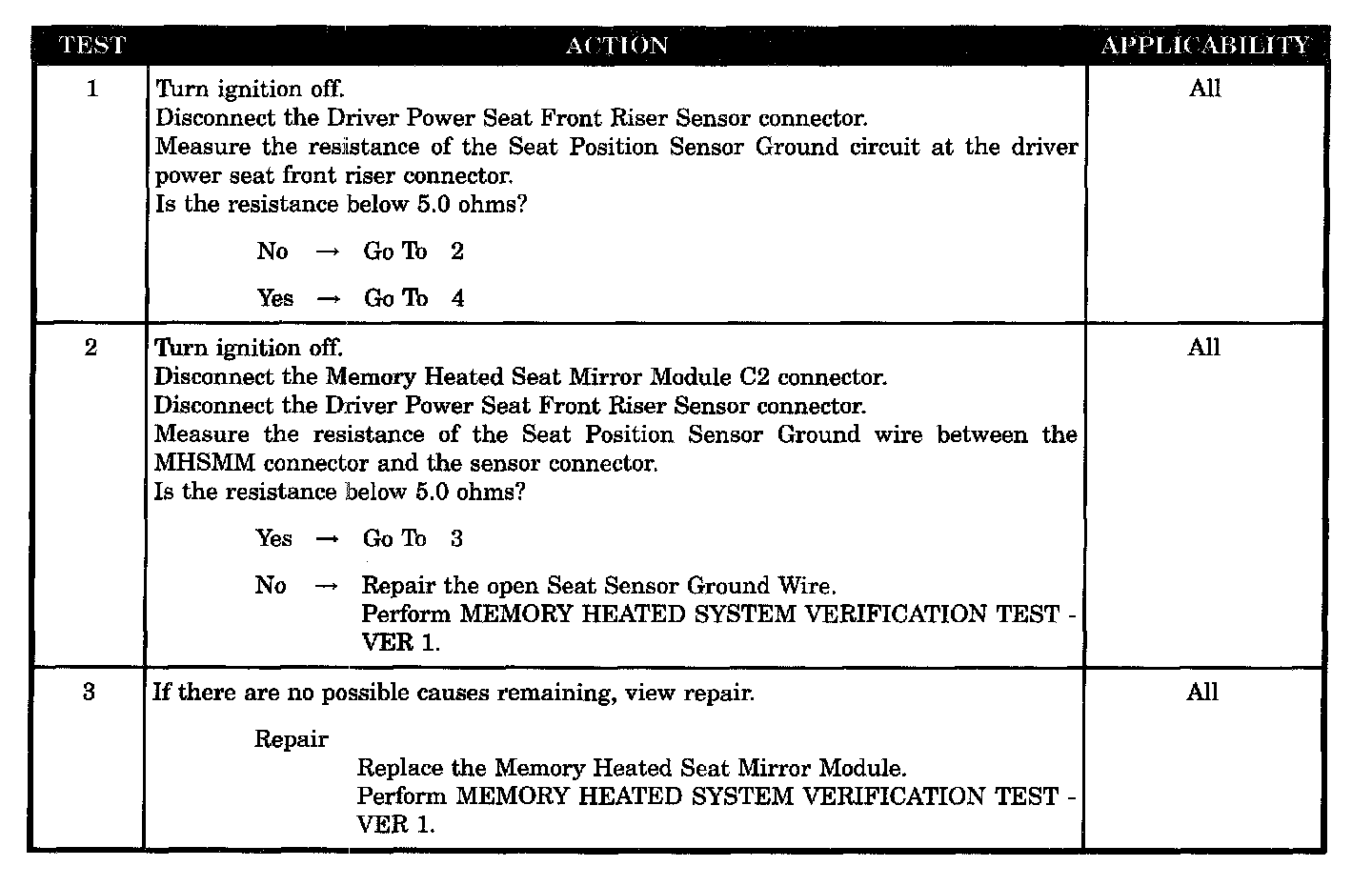

Test 1 - 3:

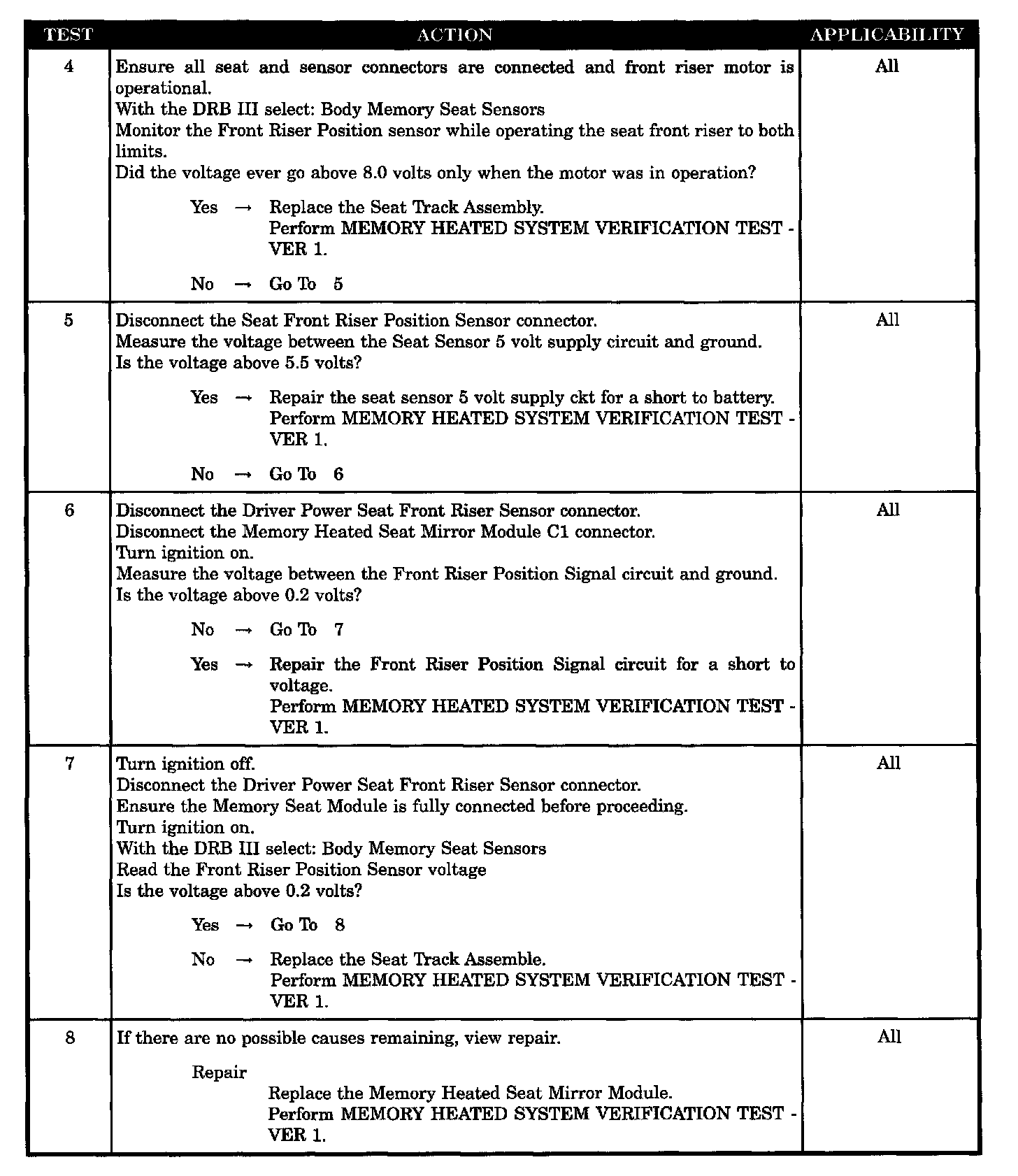

Test 4 - 8:

SYMPTOM
FRONT RISER SENSOR OUT OF RANGE HIGH

WHEN MONITORED
Ignition on.

SET CONDITION
This condition is immediately set when the seat motor potentiometer feeds a value higher than the Memory Seat Module has stored in EEPROM.

POSSIBLE CAUSES
- Seat sensor ground wire open
- Front riser sensor signal shorted to motor
- Front riser POS signal circuit shorted to voltage
- Front riser sensor high
- Seat sensor 5 volt supply shorted to battery
- Memory heated seat mirror module
- Memory heated seat mirror module
