Mode Door Stall Test Failure

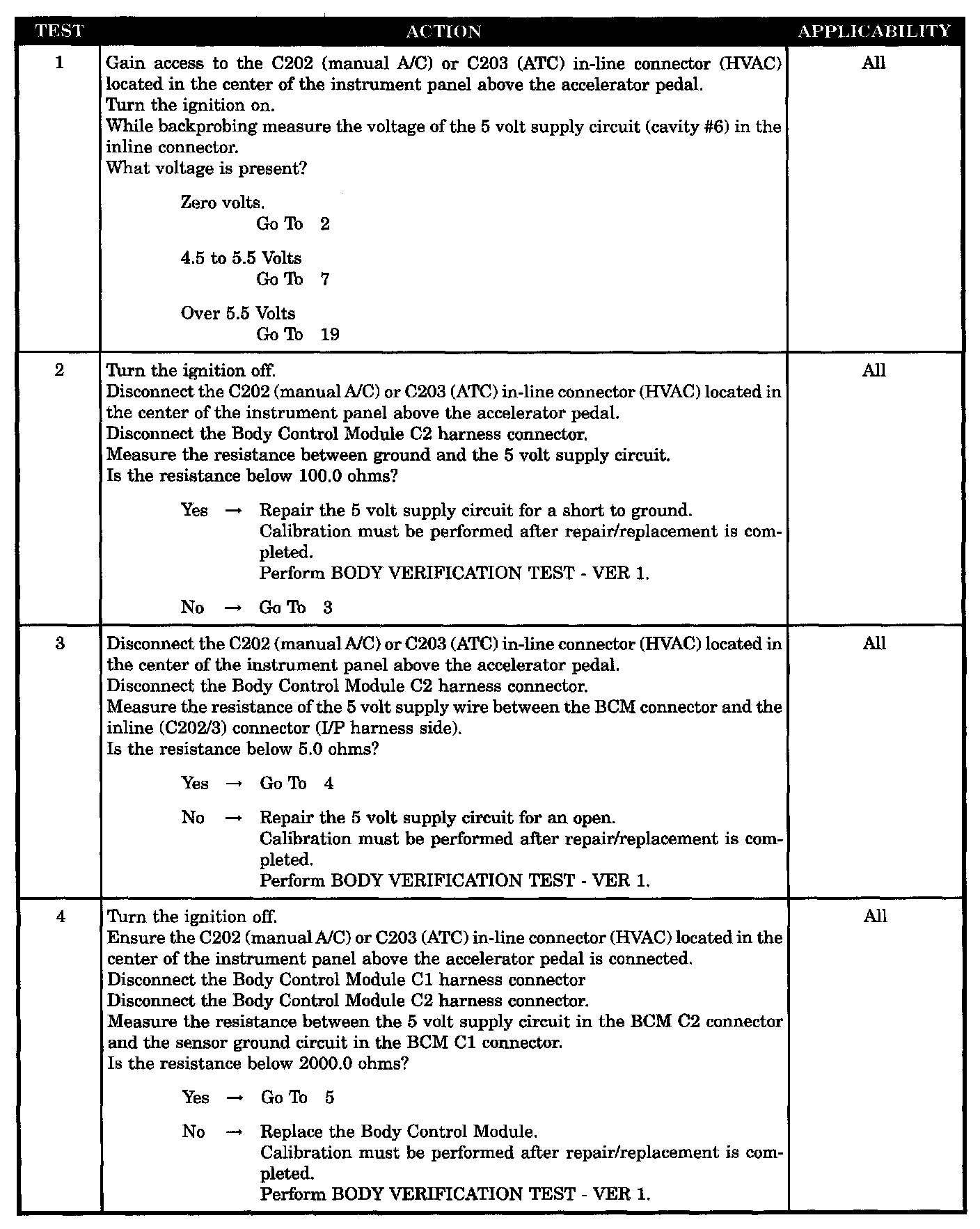

Test 1 - 4:

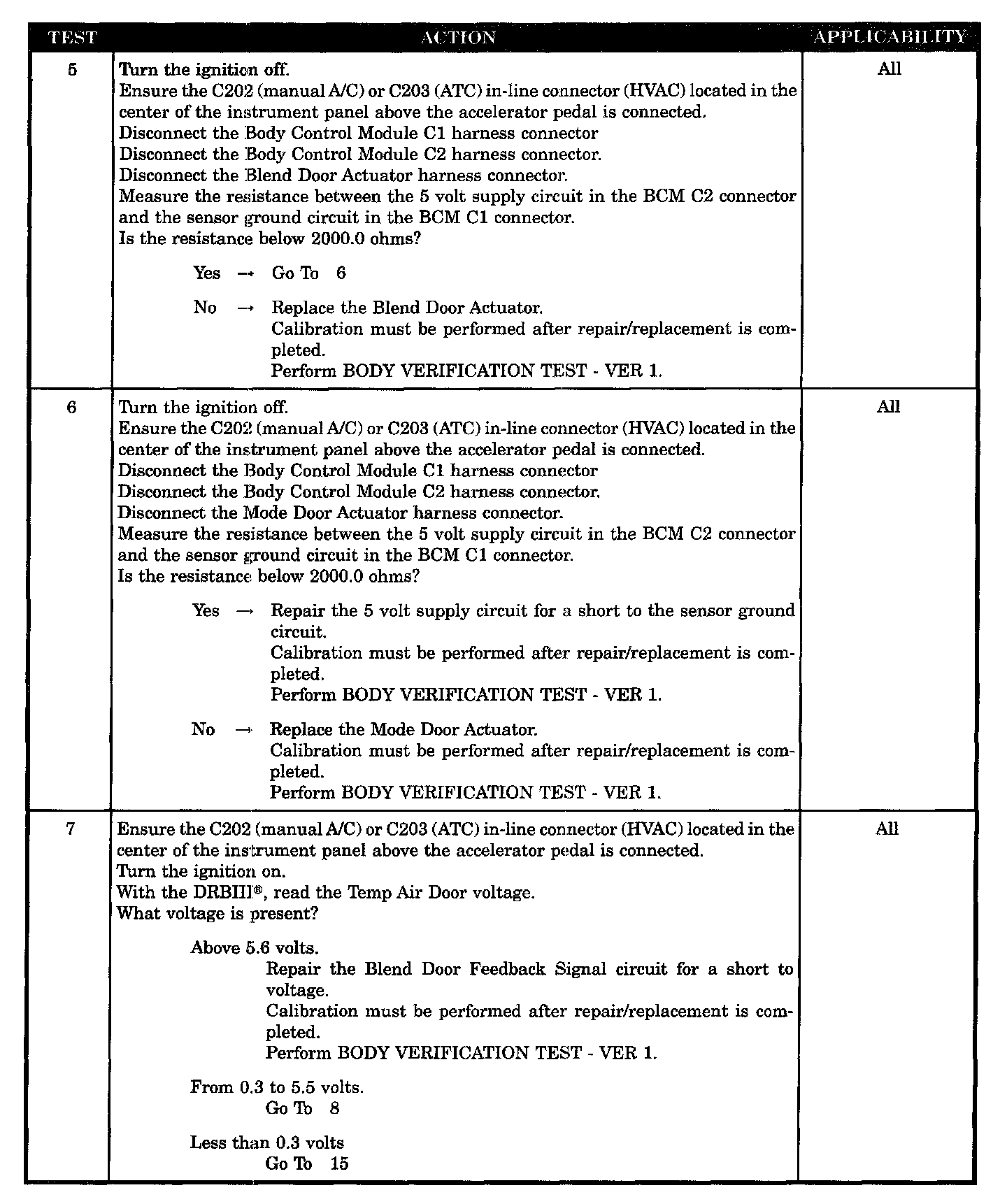

Test 5 - 7:

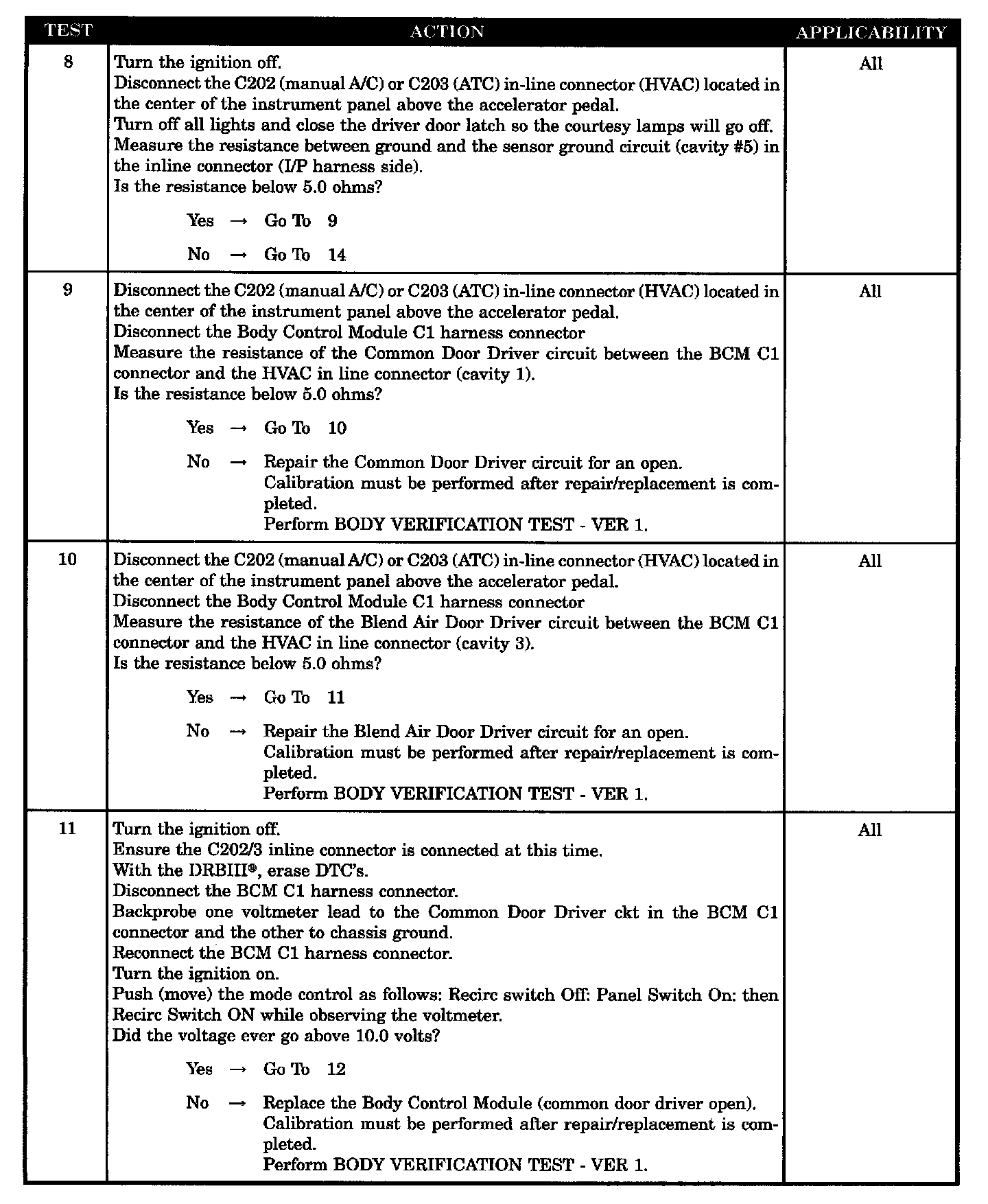

Test 8 - 11:

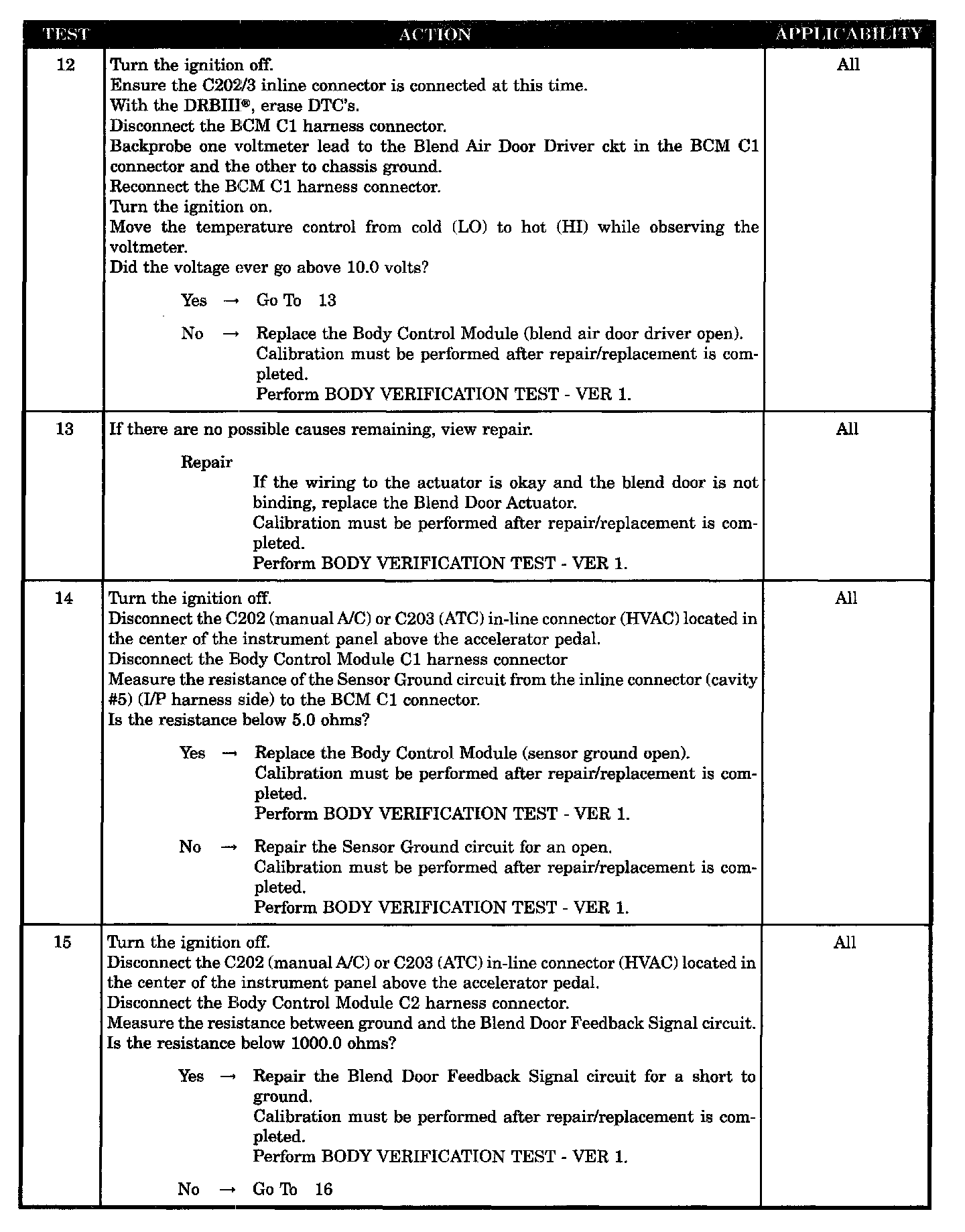

Test 12 - 15:

Test 16 - 18:

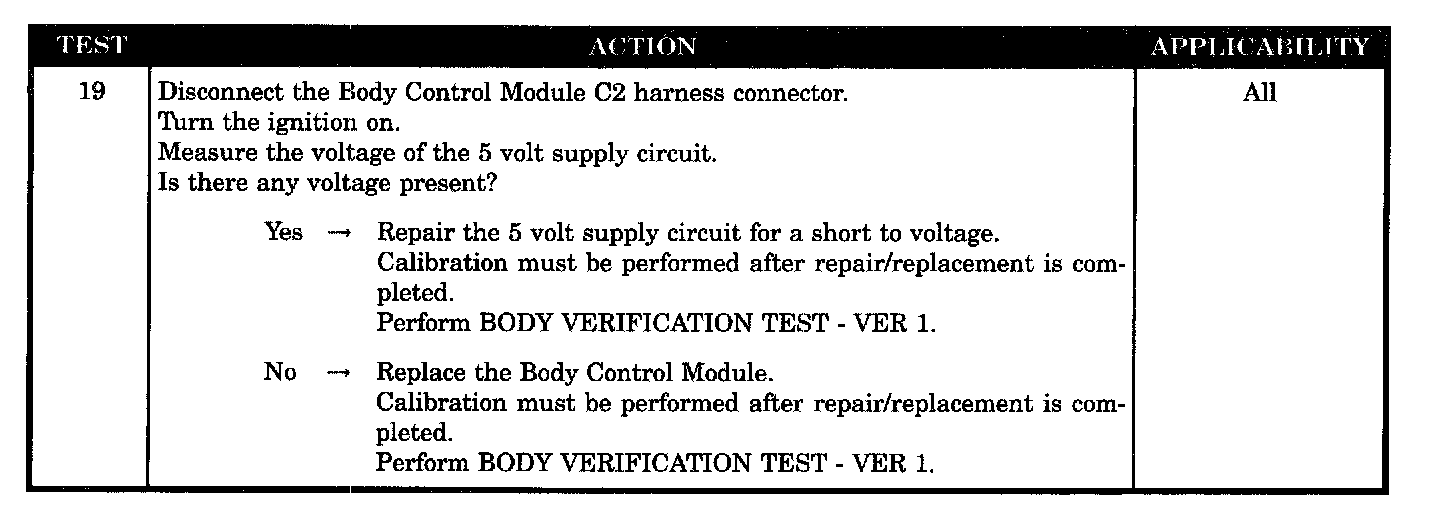

Test 19:

SYMPTOM
MODE DOOR STALL TEST FAILURE

WHEN MONITORED
During HVAC motor calibration.

SET CONDITION
The BCM is unable to detect the end of travel for the blend door.

POSSIBLE CAUSES
- 5 volt supply circuit shorted to ground
- 5 volt supply circuit open
- 5 volt supply circuit shorted to sensor ground
- Blend door actuator shorted to sensor ground
- Mode door actuator shorted to sensor ground
- 5 volt supply circuit shorted to sensor ground
- Mode door feedback signal circuit shorted to battery
- Common door driver wire open
- Mode air door driver wire open
- Body control module-common door driver
- Body control module-blend door driver
- Mode door actuator
- Sensor ground wire open
- Body control module
- Mode door feedback signal circuit shorted to ground
- Mode door feedback signal circuit open
- Mode door feedback signal circuit shorted to sensor ground
- Body control module - feedback signal open/shorted
- Mode door actuator
- 5 volt supply circuit shorted to voltage
- Body control module-5 volt supply high
