Head Status RX Failure

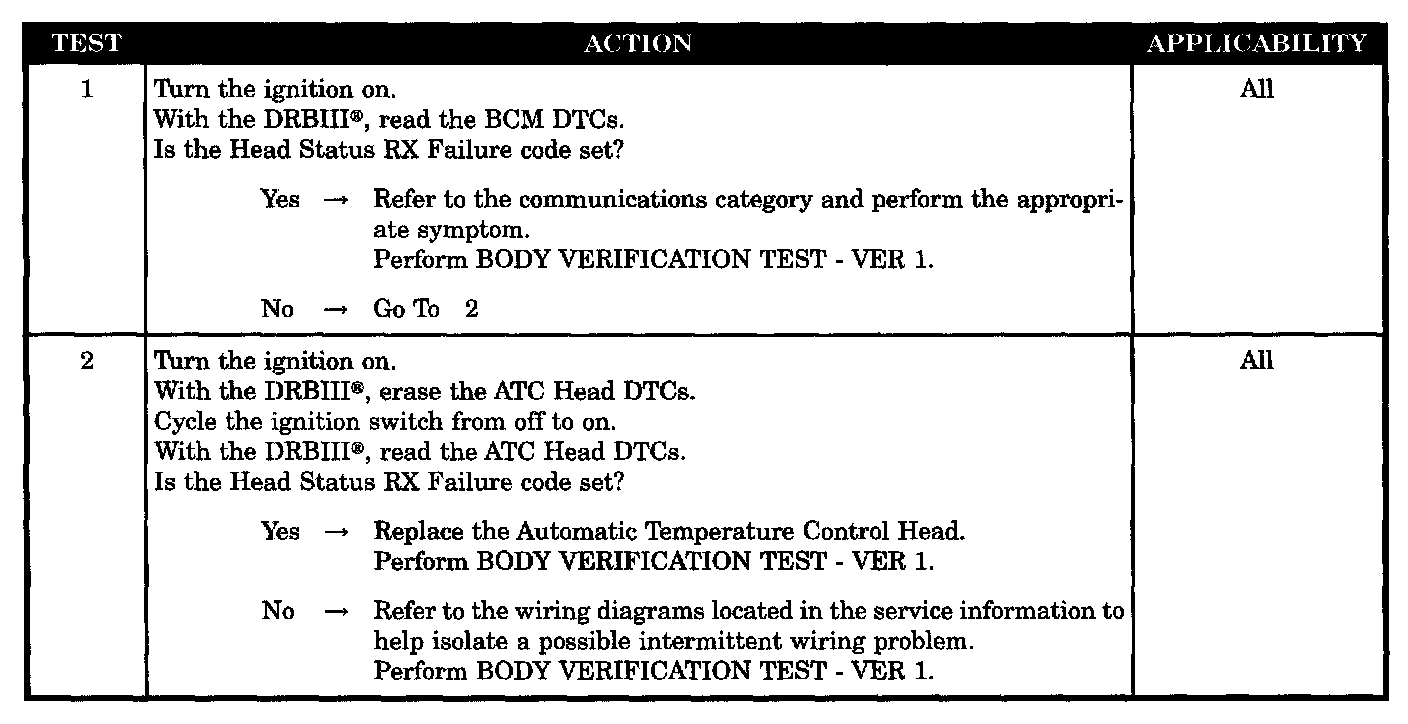

Test 1 - 2:






SYMPTOM
HEAD STATUS RX FAILURE

POSSIBLE CAUSES
- Check BCM codes
- Automatic temperature control head
- Harness/intermittent wiring
