A/C Control Mode Door Input Open/Shorted to Battery (MTC)

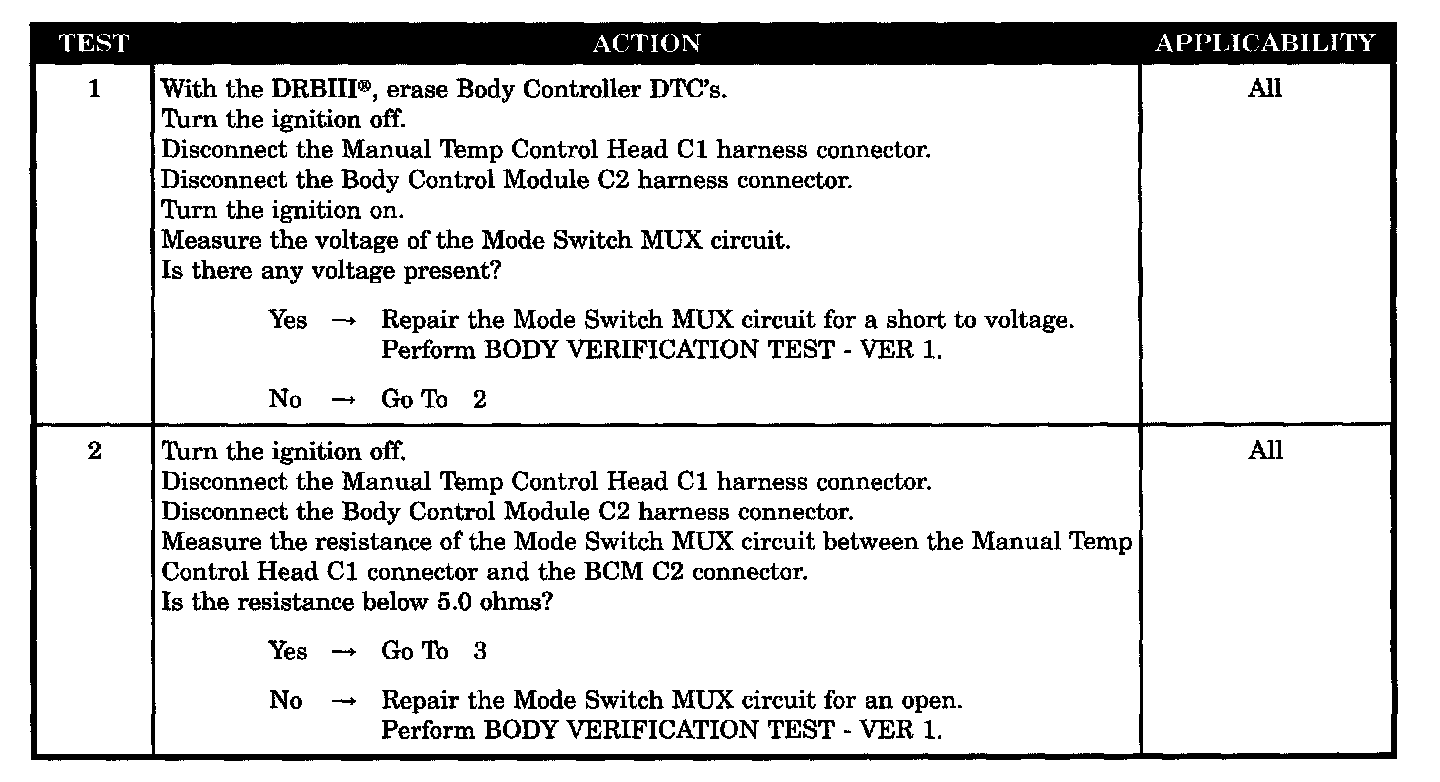

Test 1 - 2:

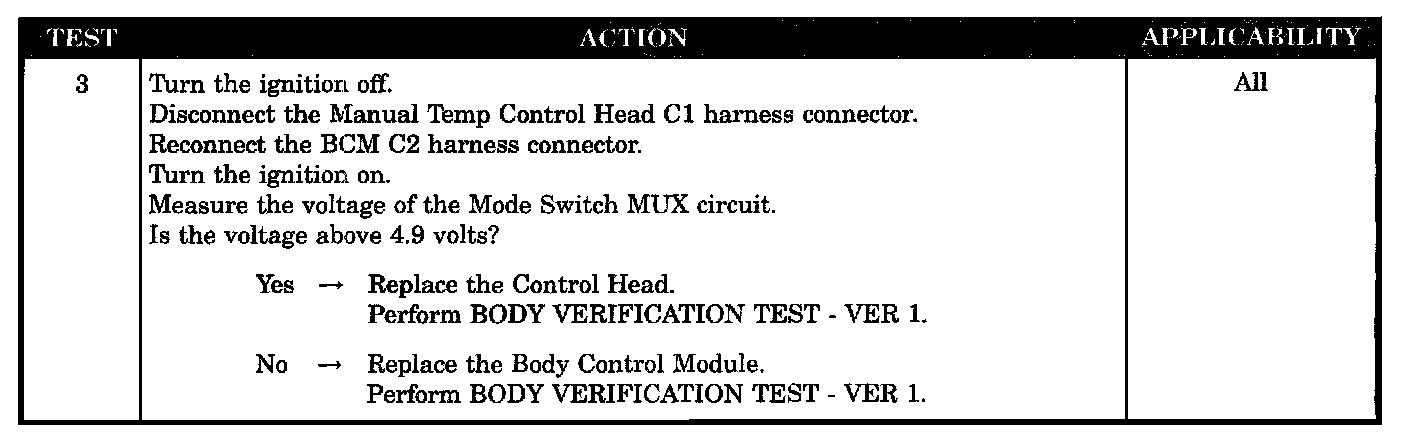

Test 3:

SYMPTOM
A/C CONTROL MODE DOOR INPUT OPEN OR SHORTED TO BATTERY (MANUAL A/C)

WHEN MONITORED
With the ignition on.

SET CONDITION
The BCM detects an abnormally high voltage on its mode request input.

POSSIBLE CAUSES
- Mode switch MUX circuit shorted to battery
- Mode switch MUX circuit open
- Control head - mode MUX open
- Body control module - mode switch MUX open
