Passenger Thermistor Out of Range High

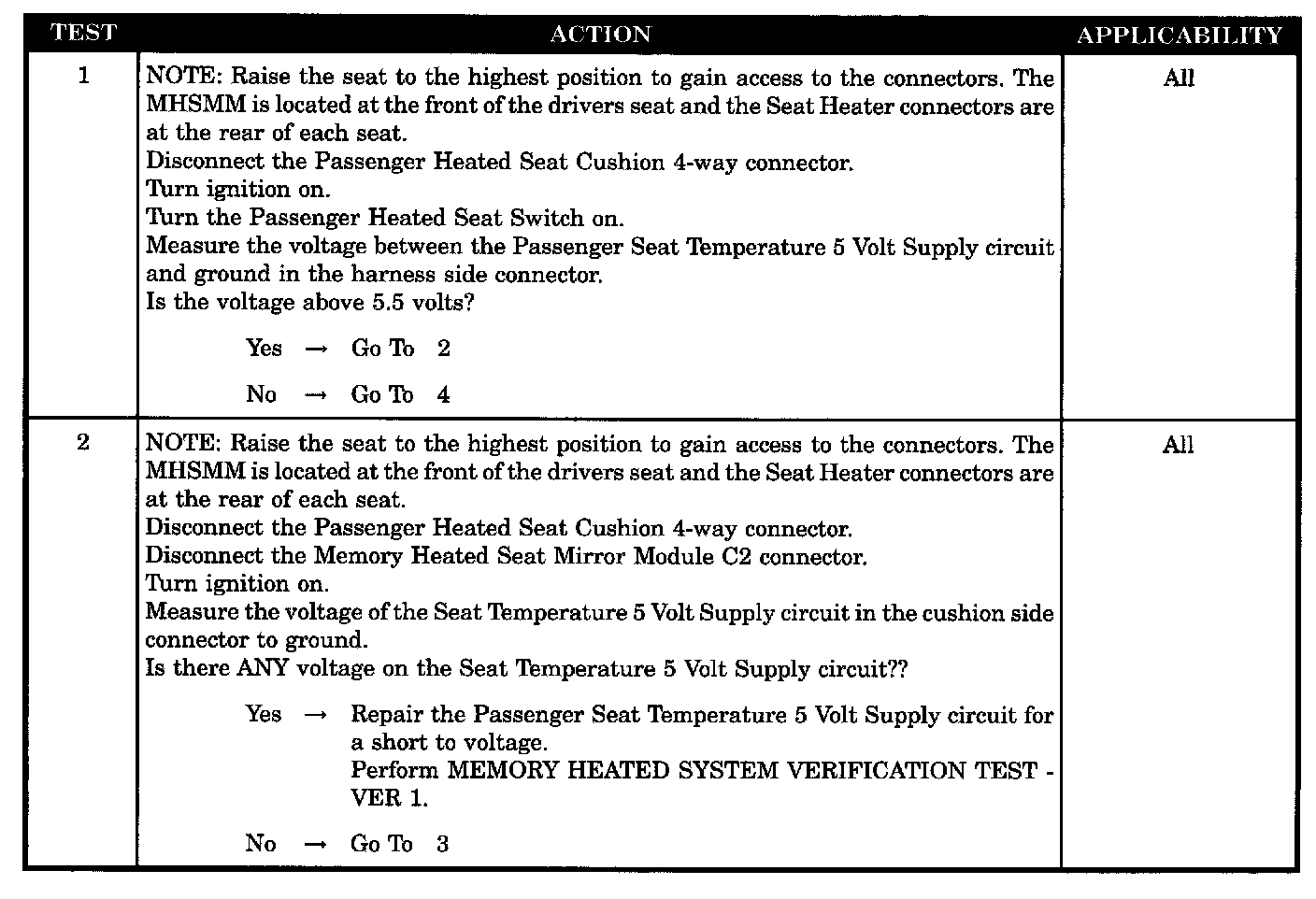

Test 1 - 2:

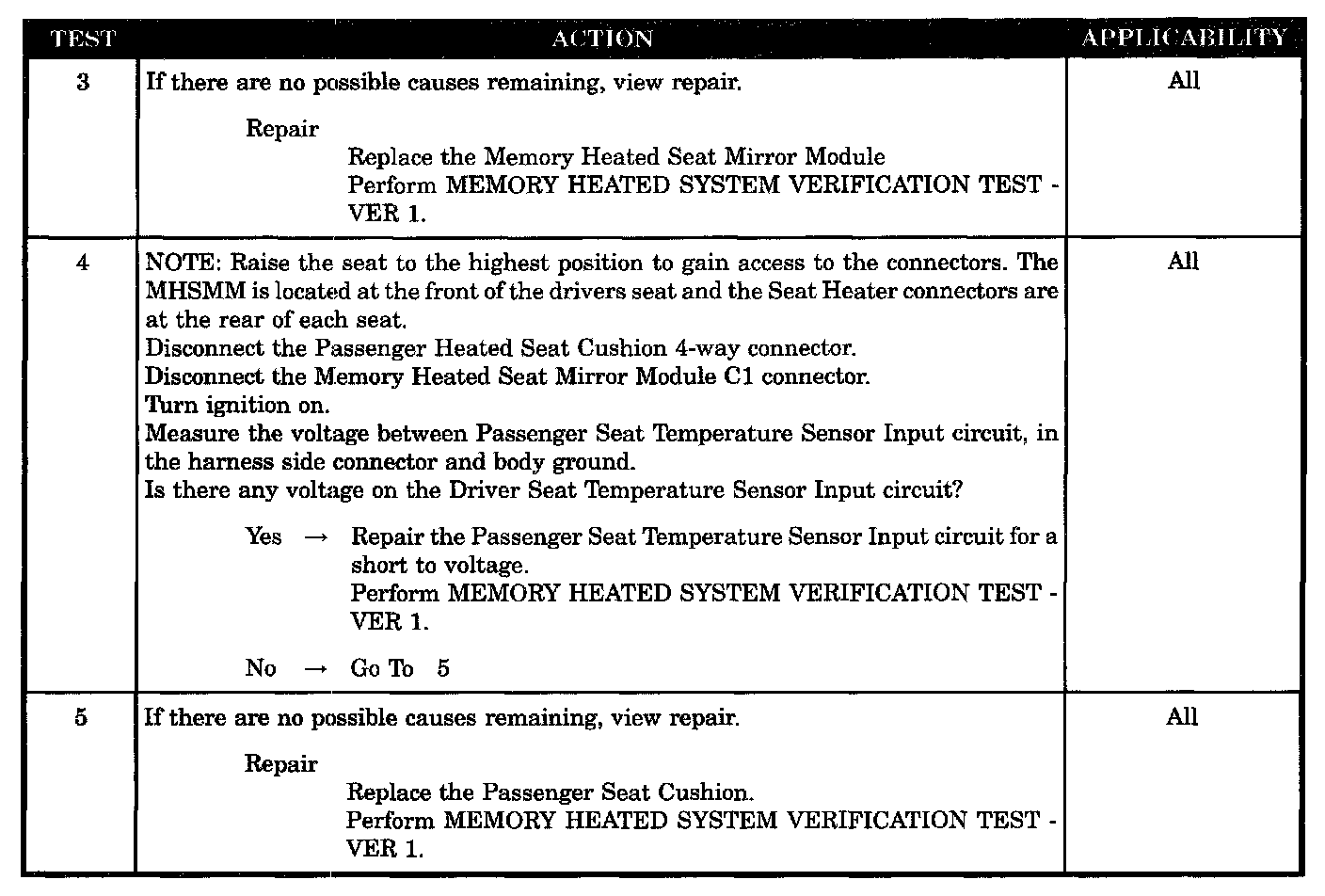

Test 3 - 5:

SYMPTOM
PASSENGER THERMISTOR OUT OF RANGE HIGH

WHEN MONITORED
Ignition on, during the heated seat operation.

SET CONDITION
This code is immediately set when the Heated Seat Module senses a greater value than the value stored in EEPROM.

POSSIBLE CAUSES
- Passenger seat temp sensor input circuit shorted to voltage
- Passenger seat temperature 5 volt supply wire shorted to voltage
- Passenger seat temperature sensor
- Memory heated seat mirror module
