Passenger Seat Heat Output Shorted to Ground

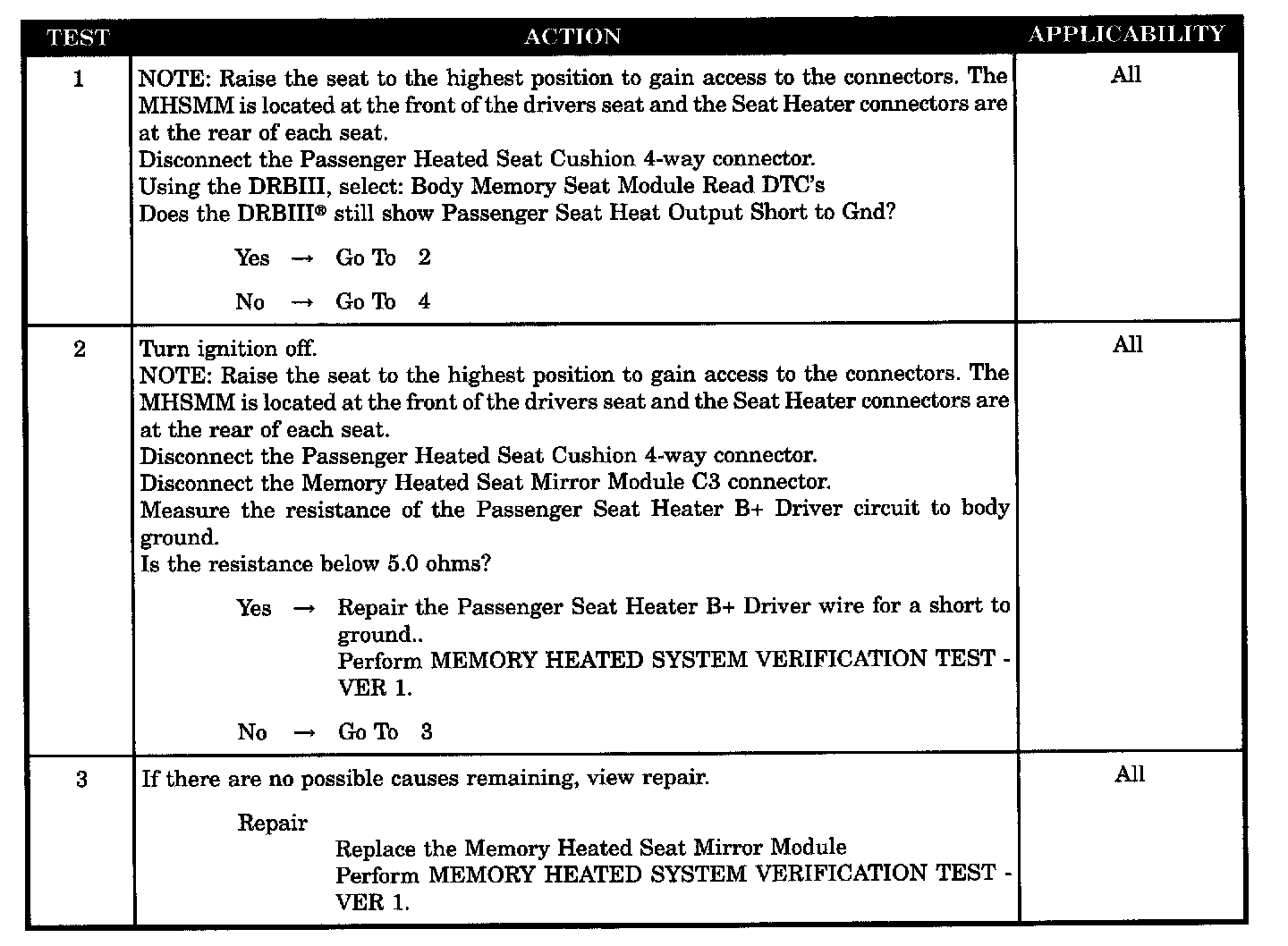

Test 1 - 3:

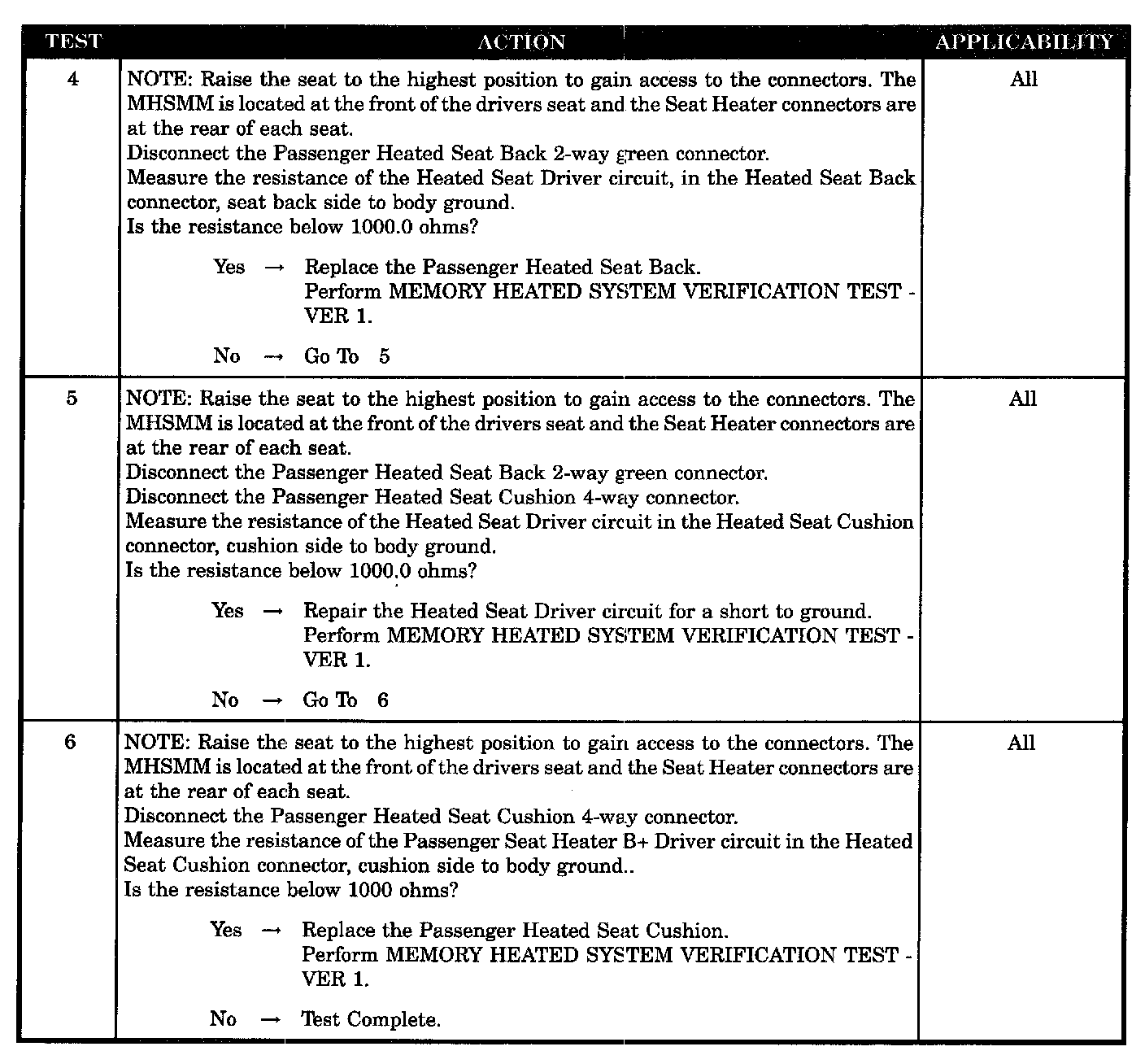

Test 4 - 6:

SYMPTOM
PASSENGER SEAT HEAT OUTPUT SHORTED TO GROUND

WHEN MONITORED
Ignition on, during the heated seat operation,

SET CONDITION
This code is set immediately after the Memory Heated Seat/Mirror Module detects an output shorted to ground.

POSSIBLE CAUSES
- Heated seat driver circuit shorted to ground
- Passenger heated seat cushion shorted to ground
- Passenger seat back heater short ground
- Passenger seat heater B+ driver wire shorted to ground
- Memory heated seat mirror module
