Driver Thermistor Out of Range Low

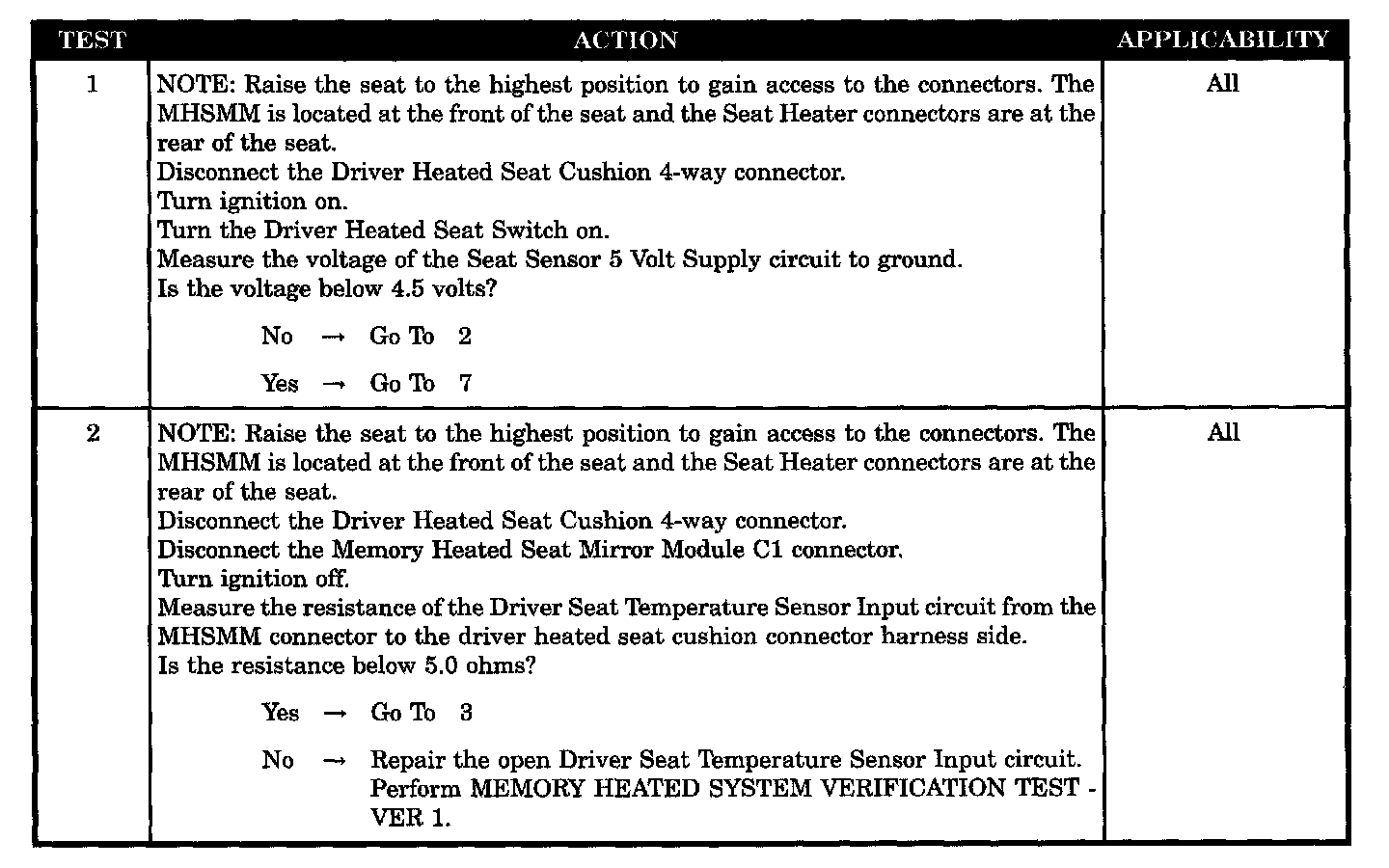

Test 1 - 2:

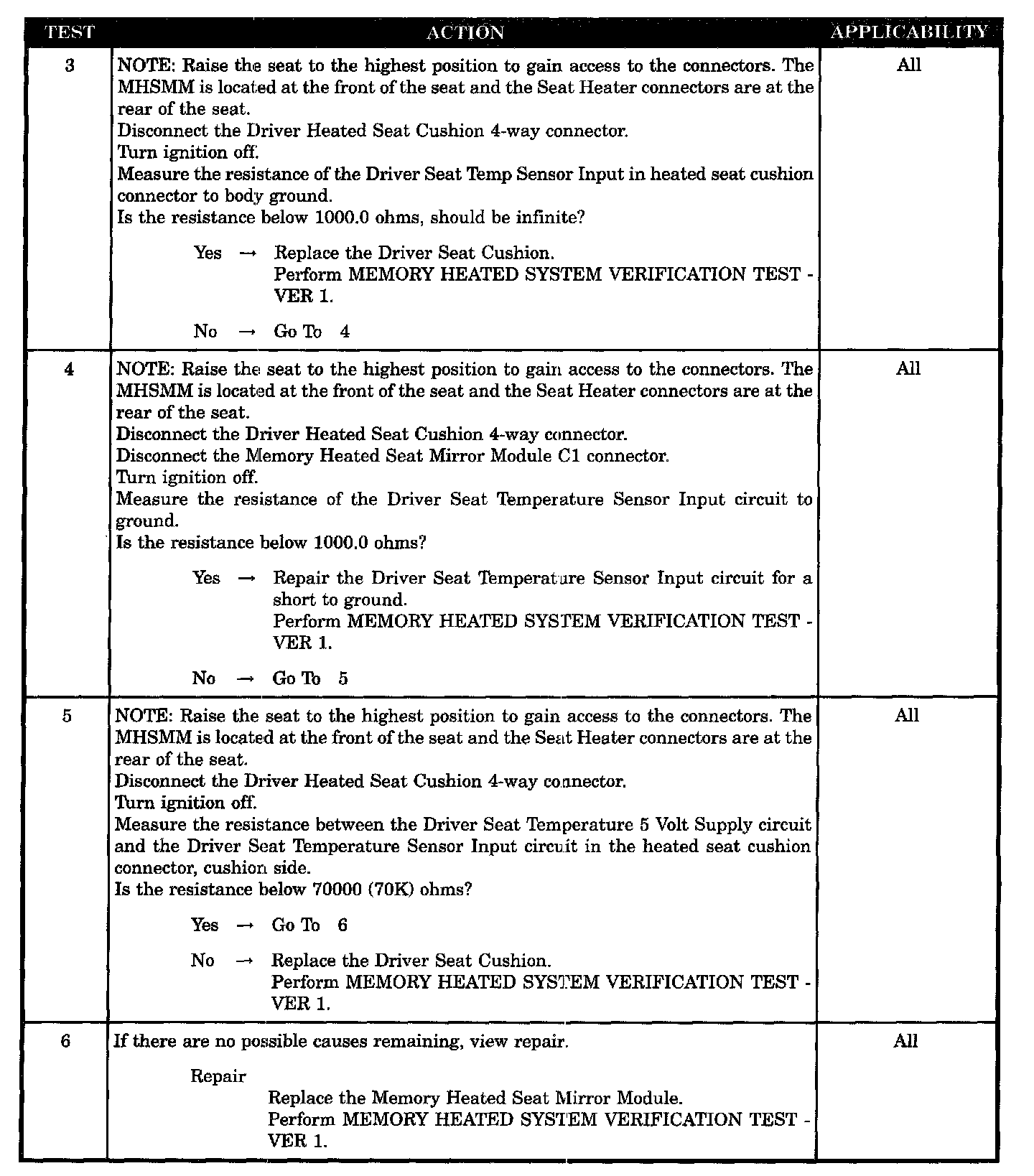

Test 3 - 6:

Test 7 - 9:

SYMPTOM
DRIVER THERMISTOR OUT OF RANGE LOW

WHEN MONITORED
Ignition on, during the heated seat operation.

SET CONDITION
This code is immediately set when the Memory Heated Seat/Mirror
Module senses a lesser value than the value stored in EEPROM.

POSSIBLE CAUSES
- Driver seat temp sensor input open
- Driver seat temp sensor input shorted to ground
- Driver seat heater sensor open
- Driver seat temp sensor shorted to ground
- Seat temperature 5 volt wire open
- Driver seat temperature 5 volt supply shorted to ground
- Memory heated seat mirror module
- Memory heated seat mirror module
