Driver Thermistor Out of Range High

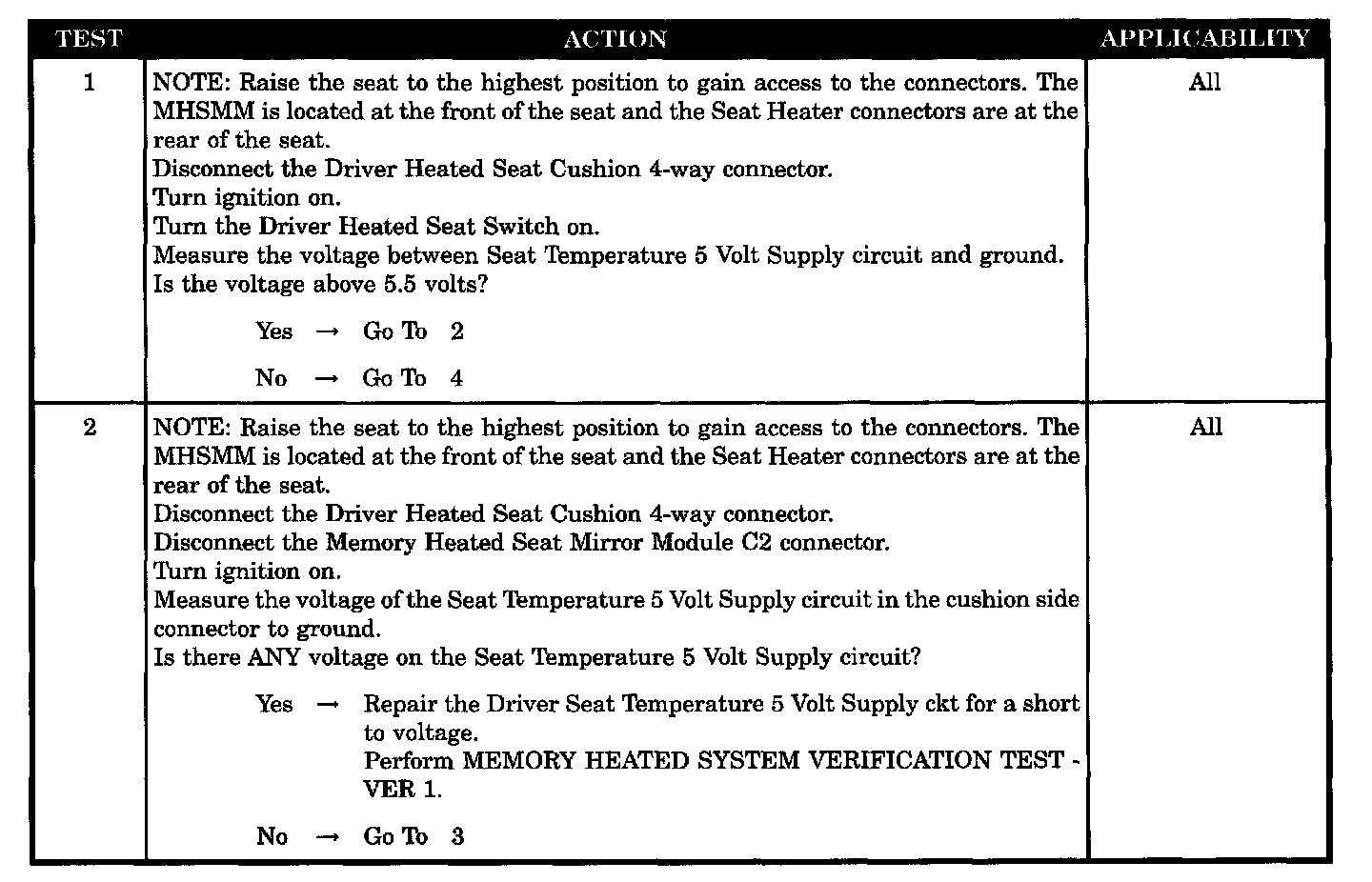

Test 1 - 2:

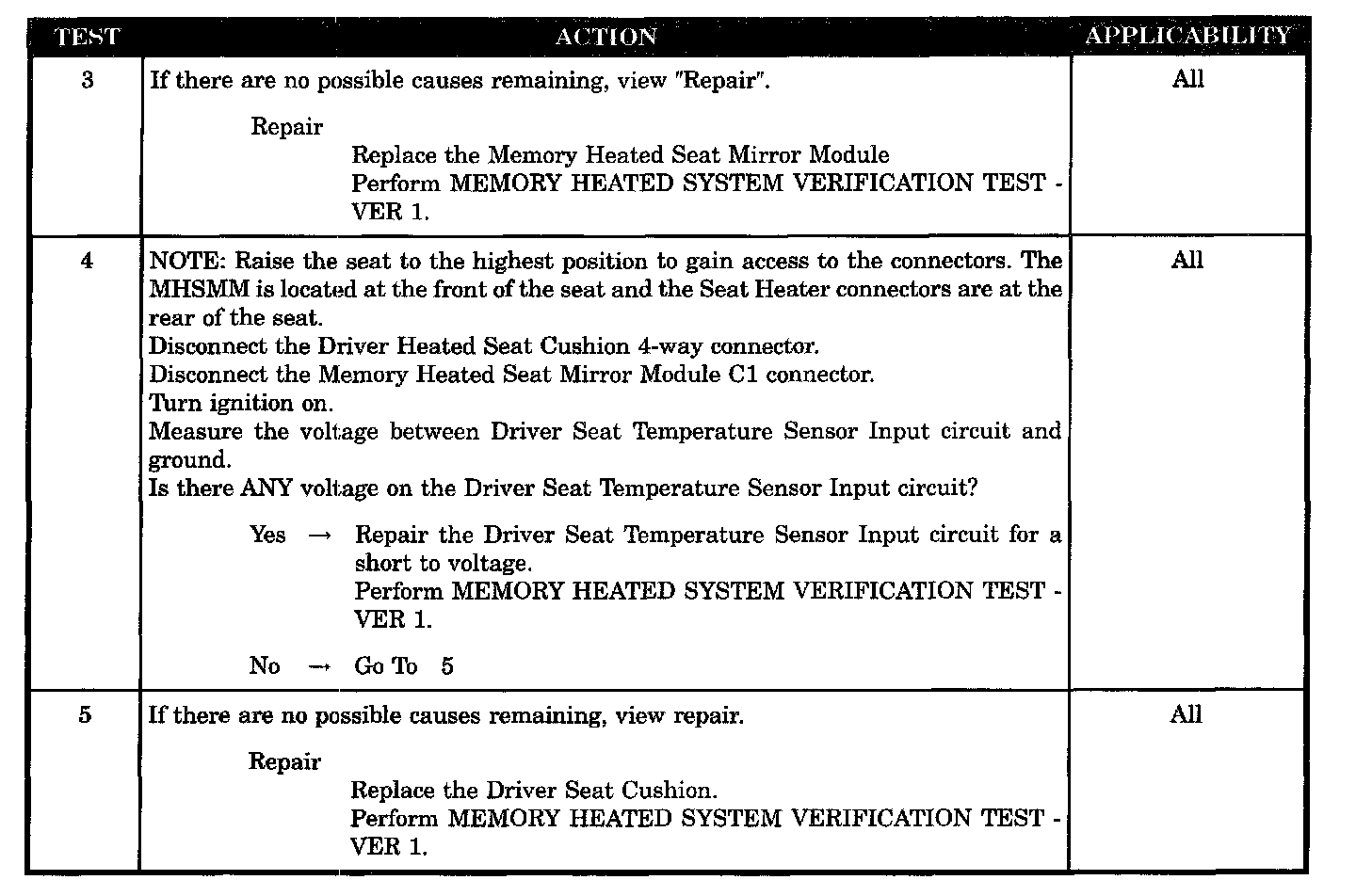

Test 3 - 5:

SYMPTOM
DRIVER THERMISTOR OUT OF RANGE HIGH

WHEN MONITORED
Ignition on, during the heated seat operation.

SET CONDITION
This code is immediately set when the Memory Heated Seat/mirror Module senses a greater value than the value stored in EEPROM.

POSSIBLE CAUSES
- Driver seat temperature sensor
- Driver seat temp sensor input circuit shorted to voltage
- Driver seat temperature 5 volt supply wire shorted to voltage
- Memory heated seat mirror module
