Driver Seat Heat Output Shorted to Ground

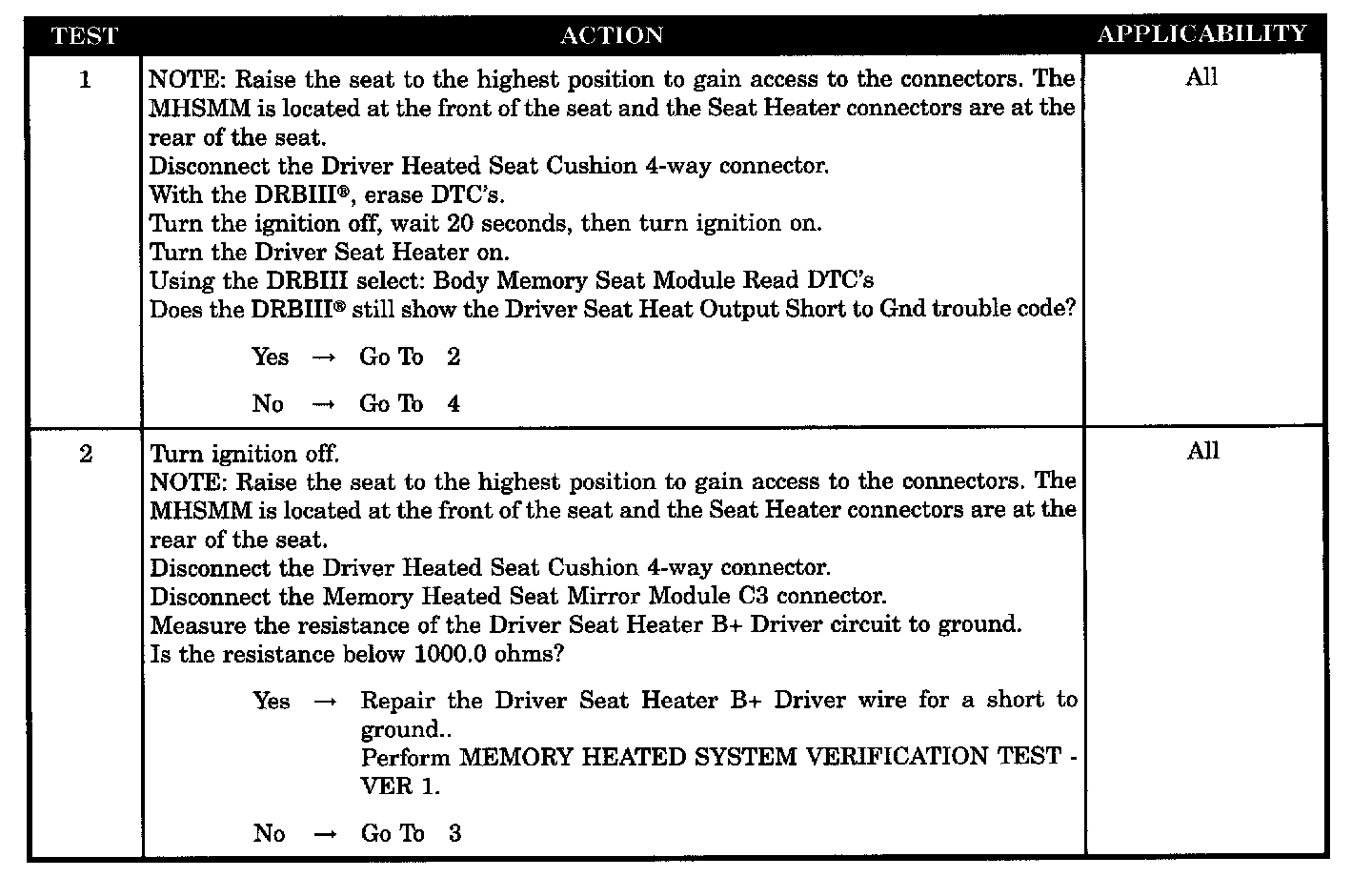

Test 1 - 2:

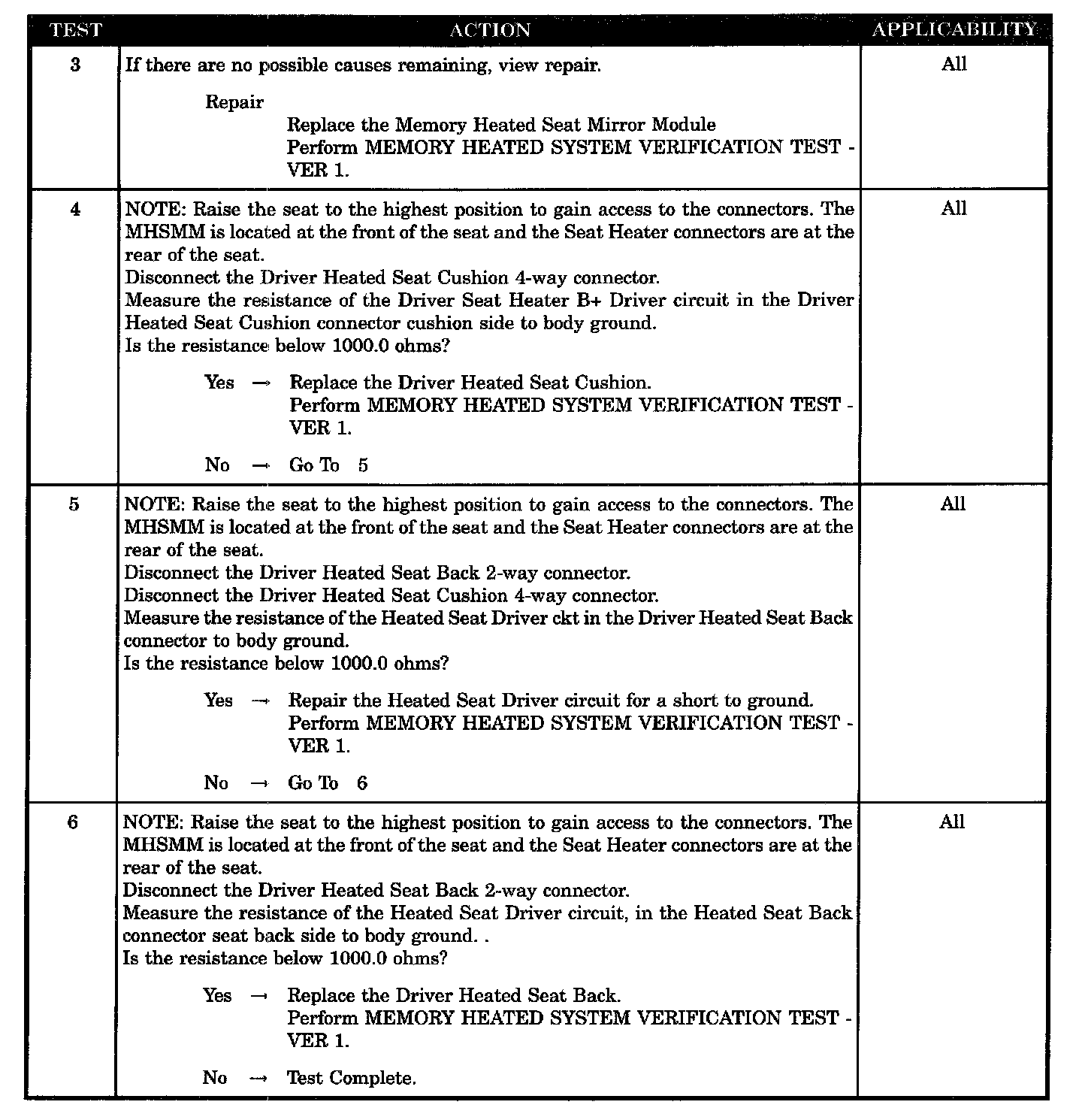

Test 3 - 6:

SYMPTOM
DRIVER SEAT HEAT OUTPUT SHORTED TO GROUND

WHEN MONITORED
Ignition on, during the heated seat operation.

SET CONDITION
This code is set immediately after the Heated Seat Module detects an output shorted to ground.

POSSIBLE CAUSES
- Heated seat driver circuit shorted to ground
- Driver seat back heater short ground
- Driver heated seat cushion shorted to ground
- Driver seat heater B+ driver wire shorted to ground
- Memory heated seat mirror module
