Driver Seat Heat Output Open

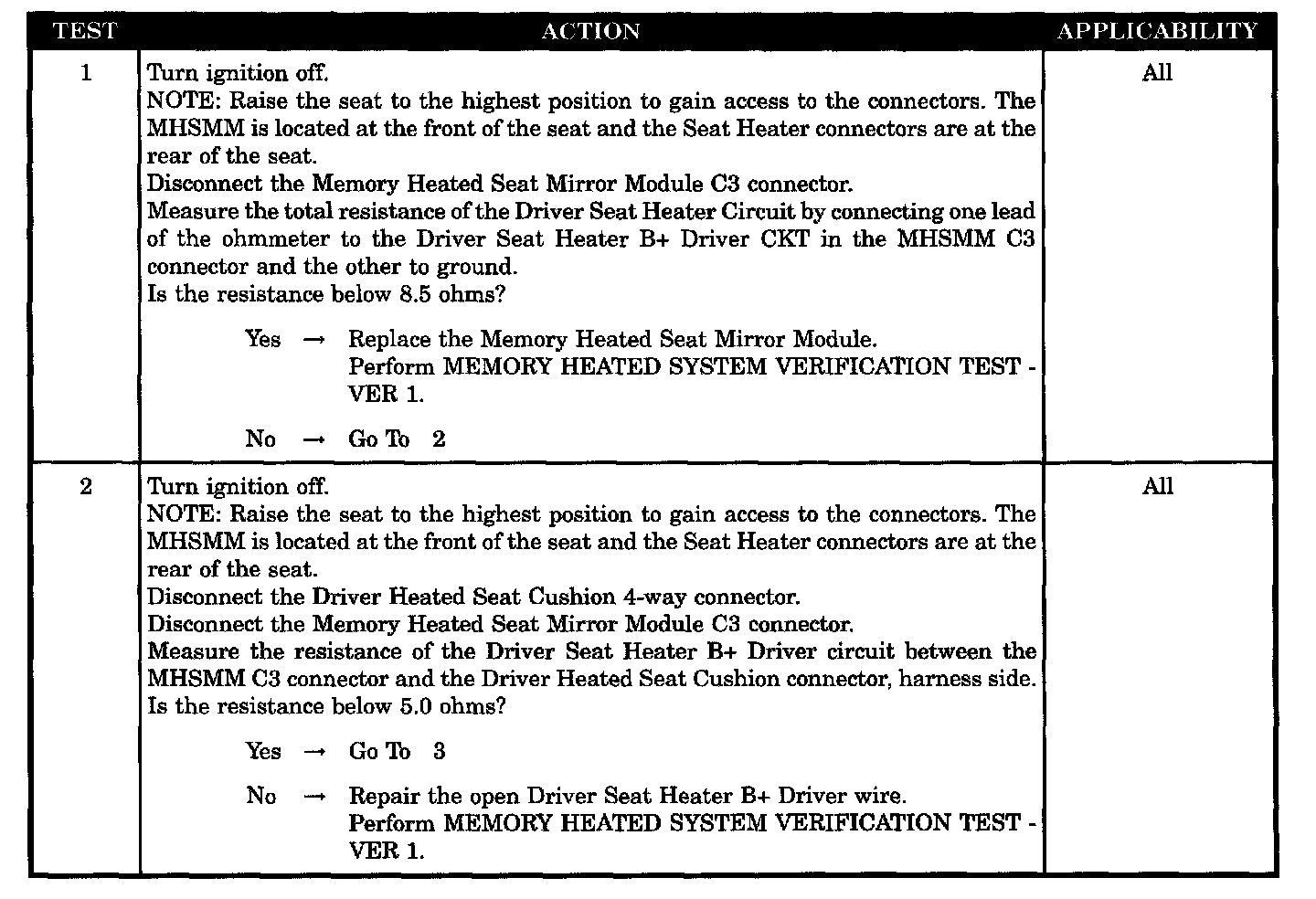

Test 1 - 2:

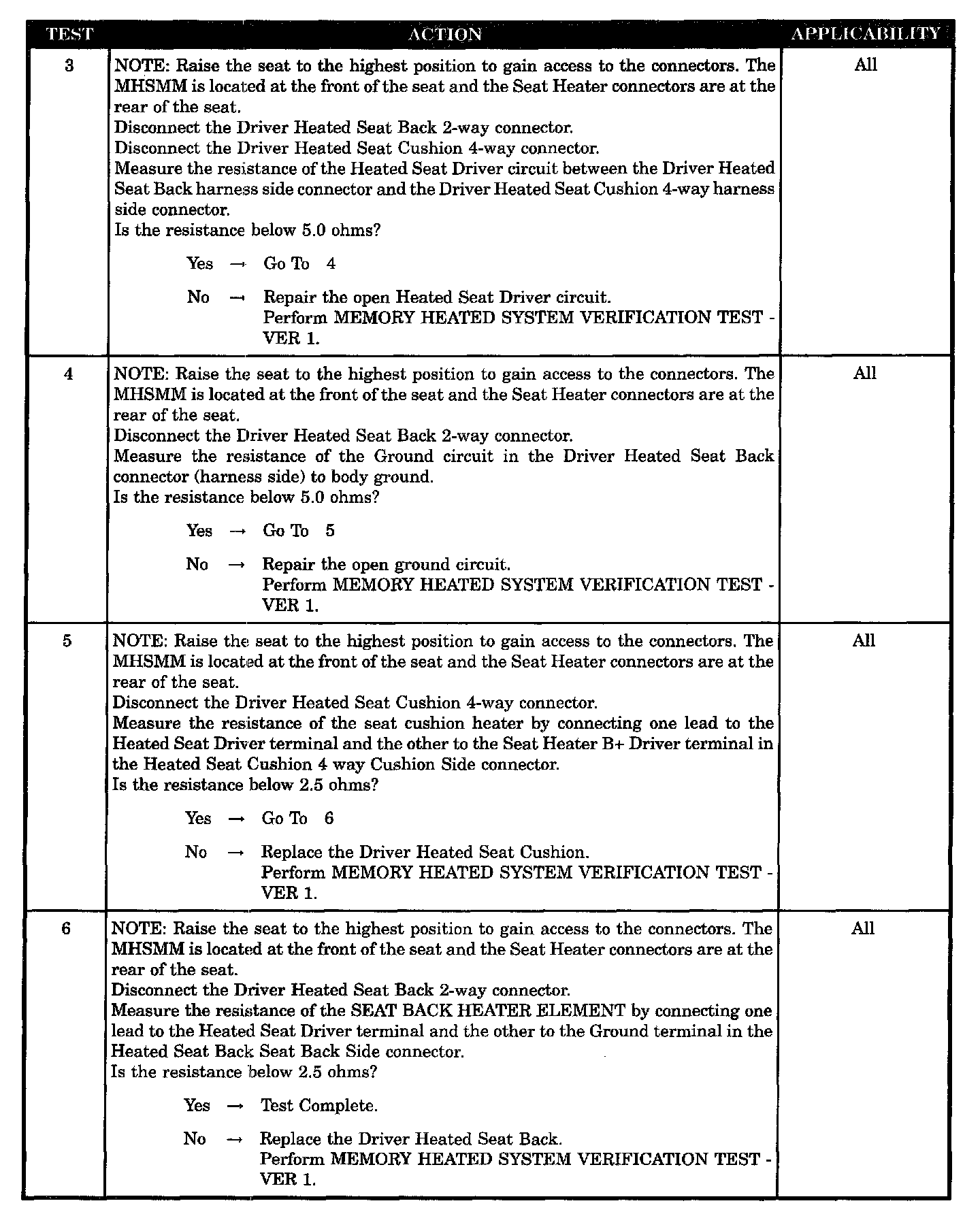

Test 3 - 6:

SYMPTOM
DRIVER SEAT HEAT OUTPUT OPEN

WHEN MONITORED
Ignition on, during the heated seat operation.

SET CONDITION
This code is set immediately after the Memory Heated Seat/Mirror
Module loses the seat heat element output.

POSSIBLE CAUSES
- Driver seat heater B+ driver wire open
- Heated seat driver circuit open
- Driver seat heater ground circuit
- Driver heated seat cushion open
- Driver seat back heater open
- Driver seat heater system open
