Left Rear Door Ajar Circuit Open
Left Rear Door Ajar Circuit Open

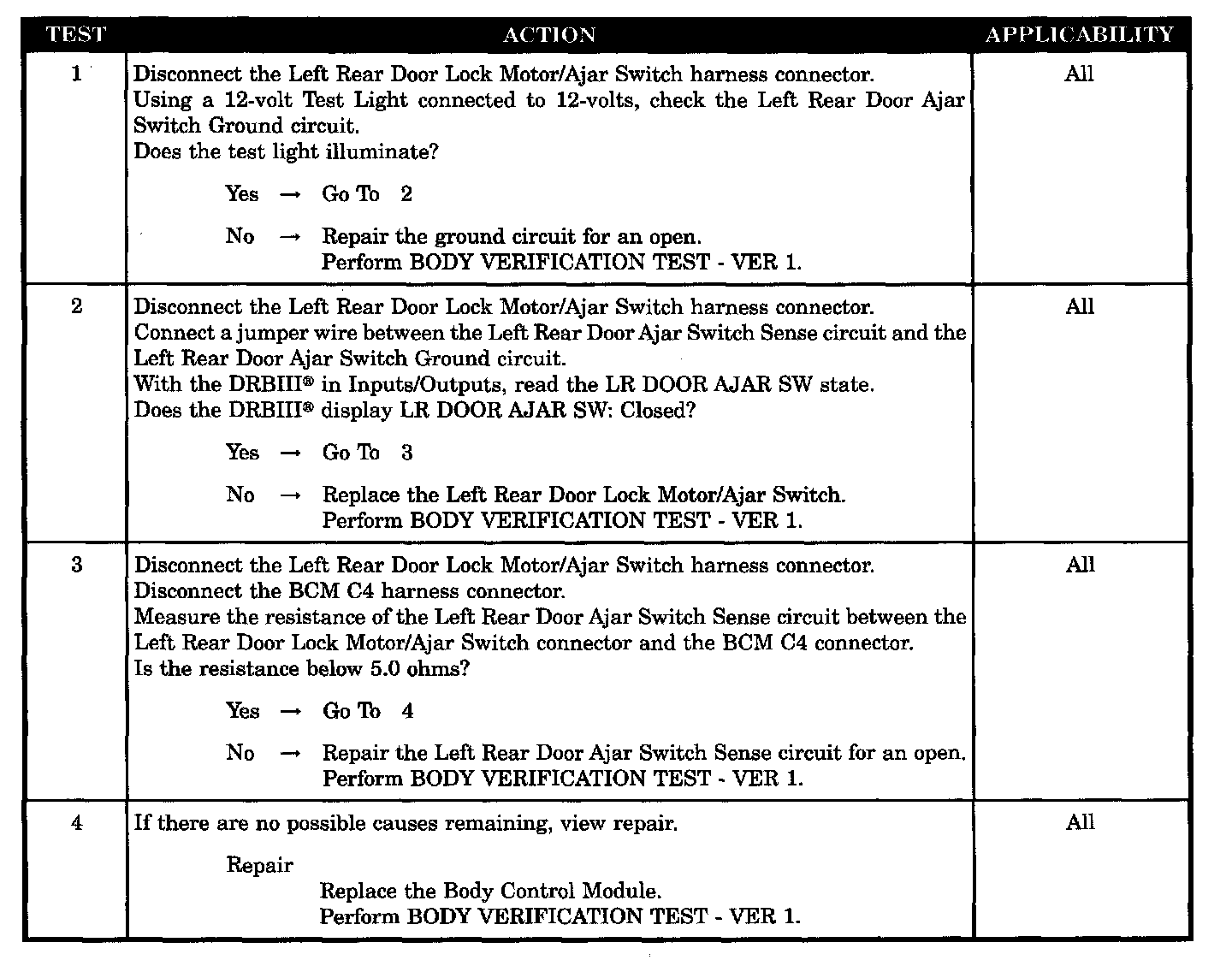

Test 1 - 4:
SYMPTOM
LEFT REAR DOOR AJAR circuit OPEN
POSSIBLE CAUSES
-
Ground circuit open
-
Left rear door ajar switch sense circuit open
-
Left rear door lock motor/ajar switch open
-
Body control module
