Bus +/- Signal Open From SKIM

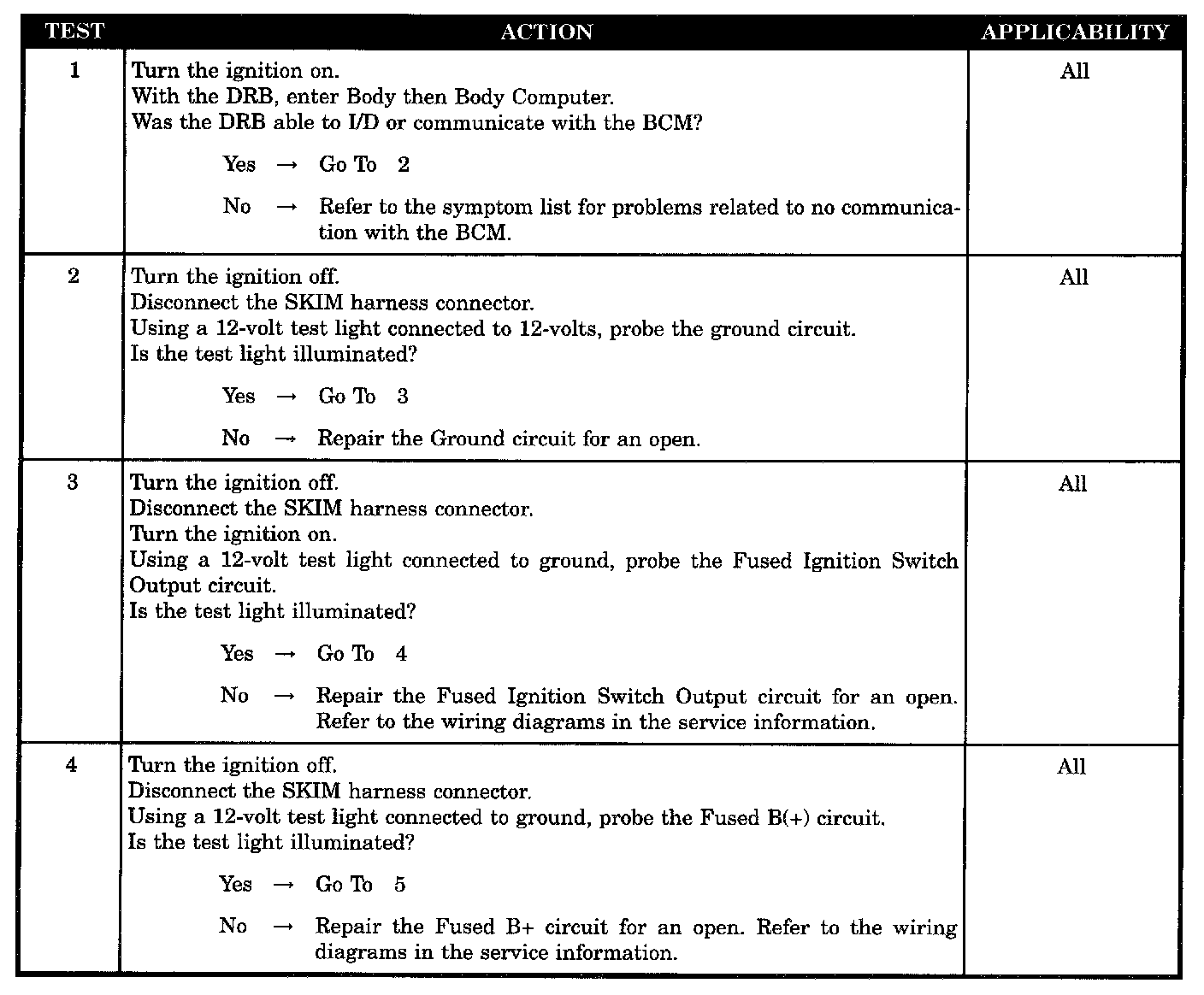

Tests 1 - 4:

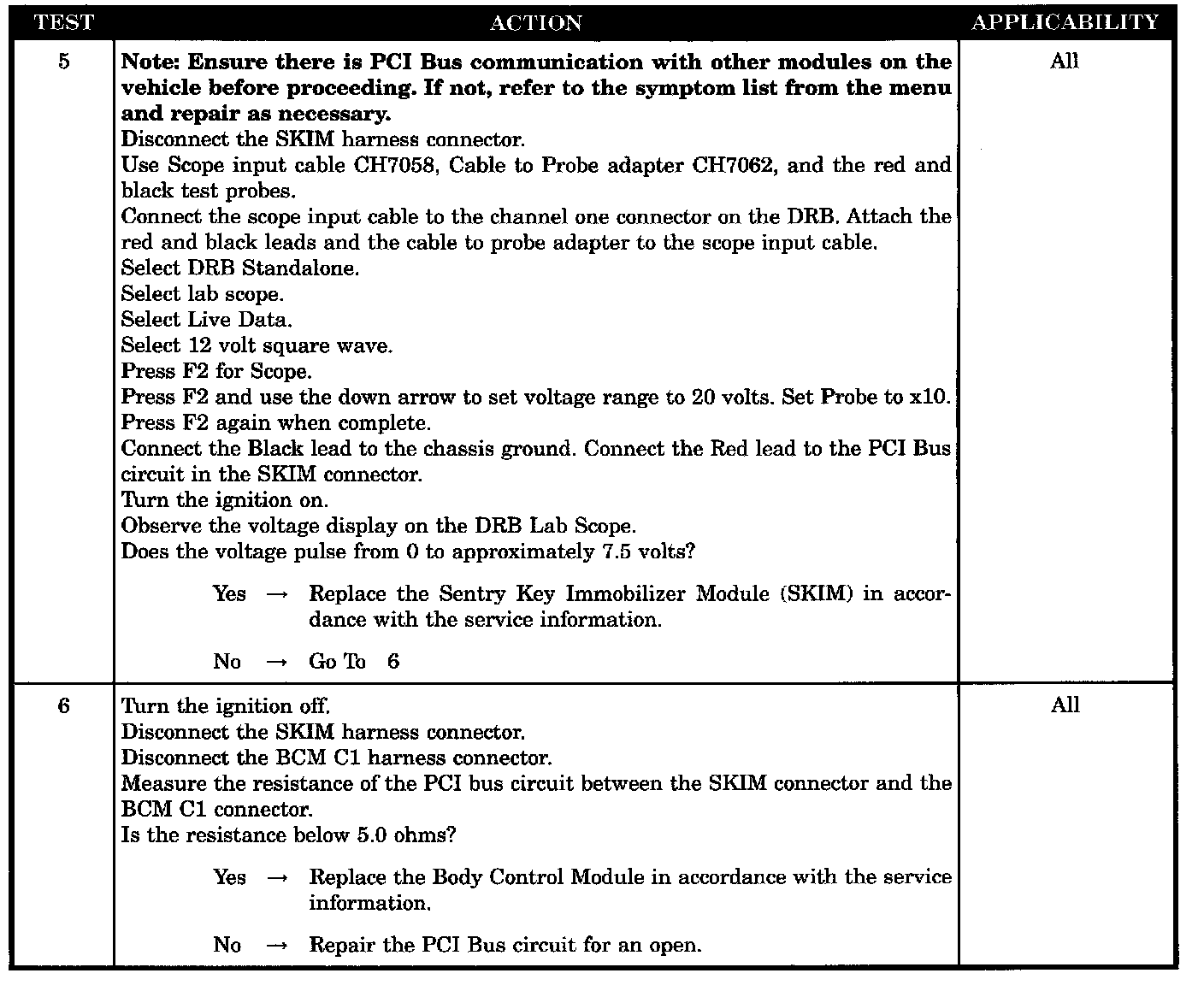

Tests 5 - 6:

SYMPTOM
BUS +/- SIGNALS OPEN FROM SENTRY KEY IMMOBILIZER MODULE

POSSIBLE CAUSES
- Attempt to communicate with the BCM
- Ground circuit open
- Fused ignition switch output circuit open
- Fused B(+) circuit open
- Sentry Key Immobilizer Module (SKIM)
- PCI bus circuit open
- Body control module
