PCI Bus Communication

Symptom:
PCI BUS COMMUNICATION

When Monitored and Set Condition:
PCI BUS COMMUNICATION

When Monitored: Ignition ON, every (7 ms).

Set Condition: When the CAB does not receive a message from the instrument cluster for 10 seconds.

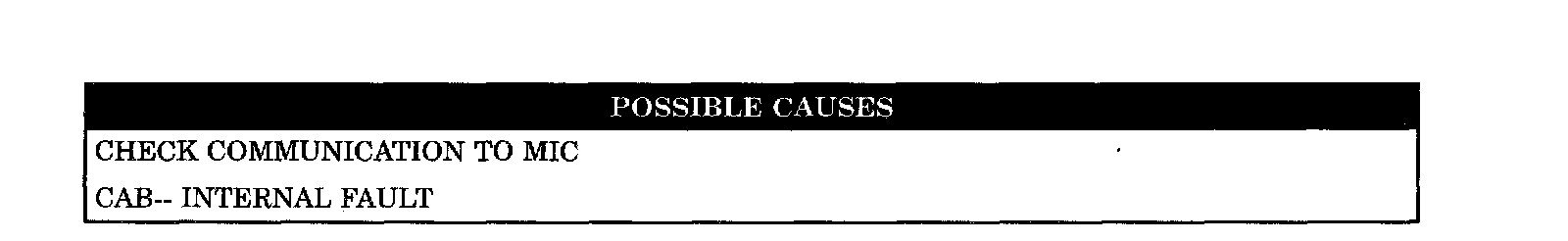

Possible Causes
