Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Wiper and Washer Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

Windshield Wiper And Washer Part 1:

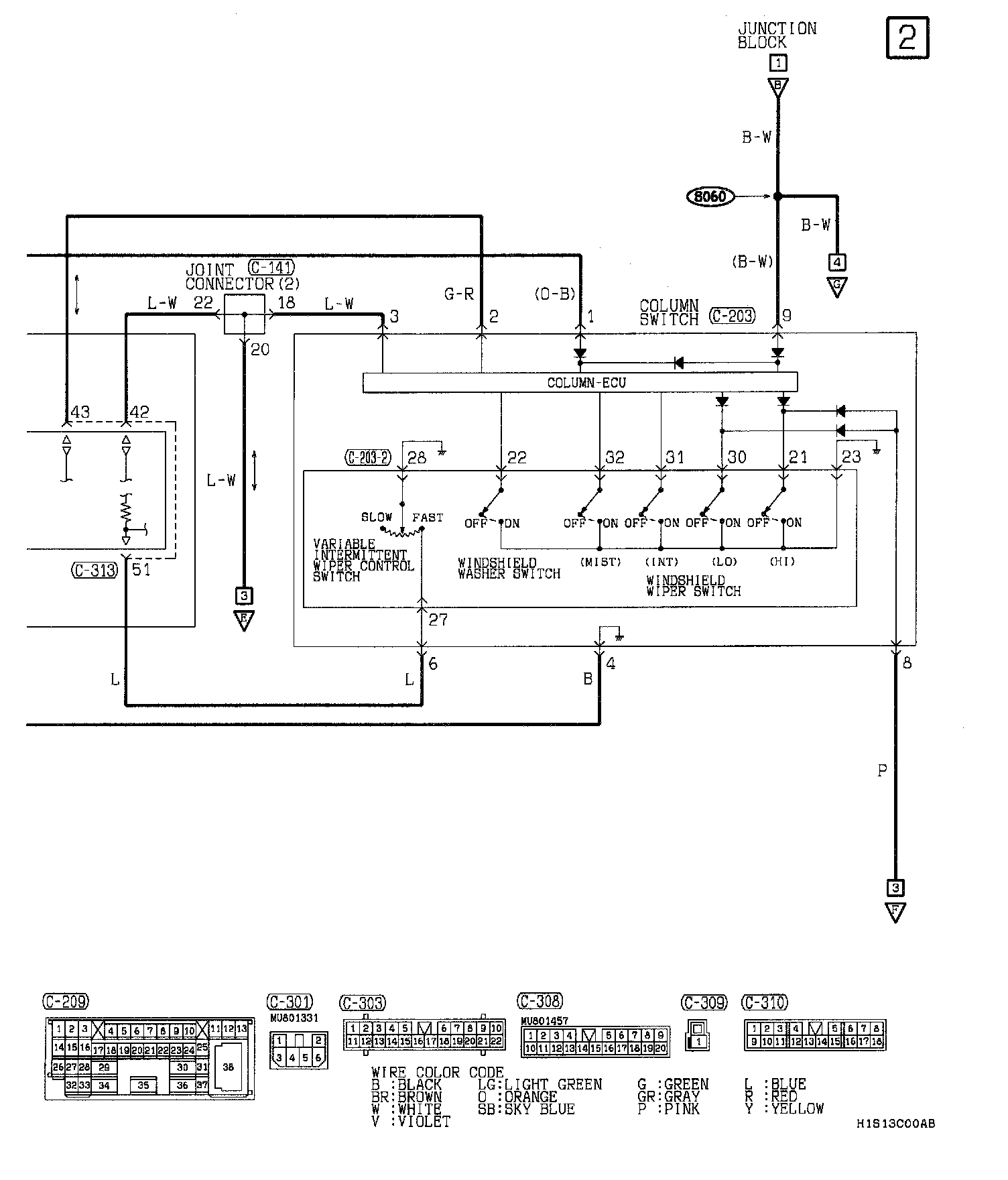

Windshield Wiper And Washer Part 2:



Windshield Wiper And Washer Part 3:

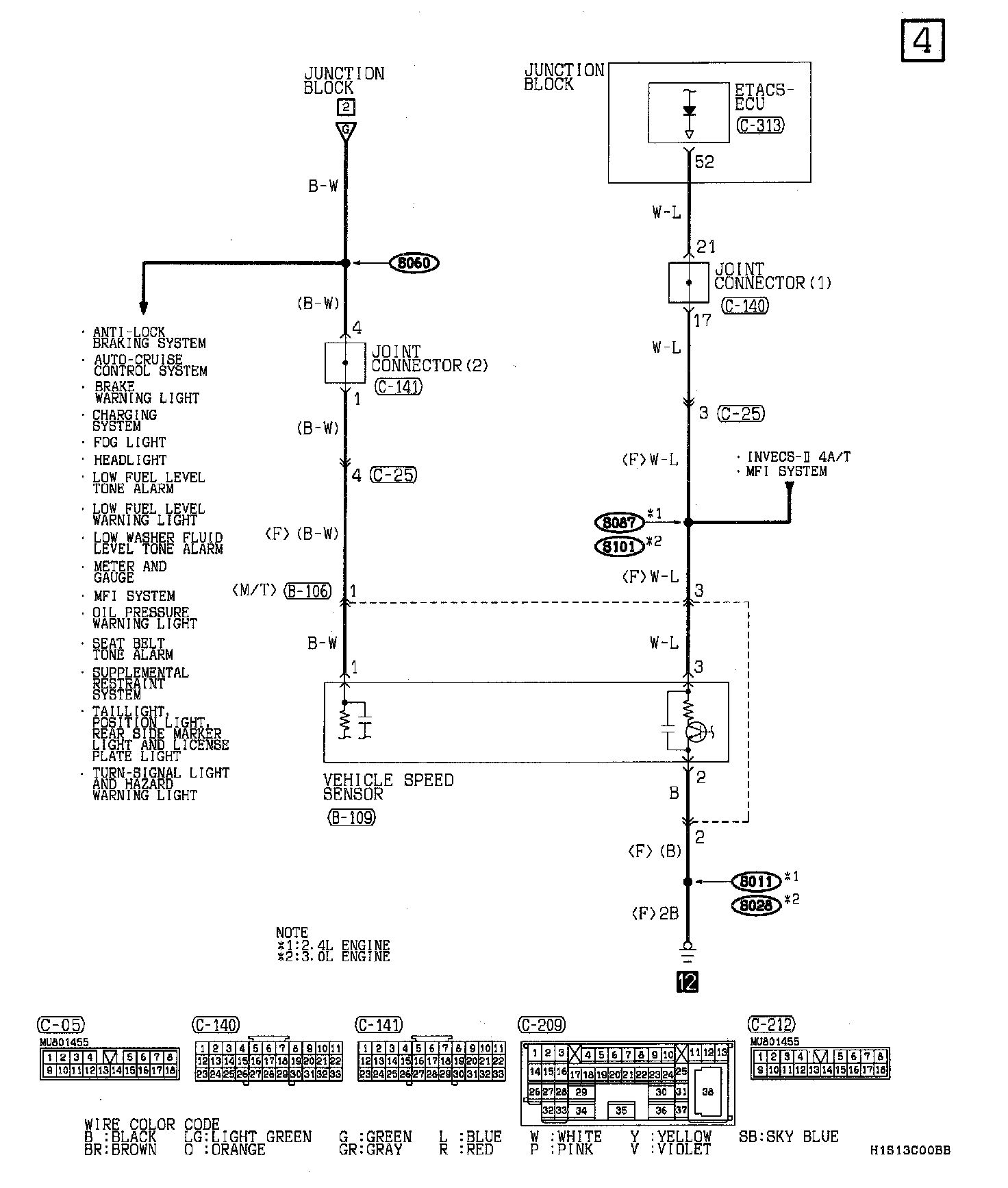

Windshield Wiper And Washer Part 4:
