Select Lever
SELECT LEVER

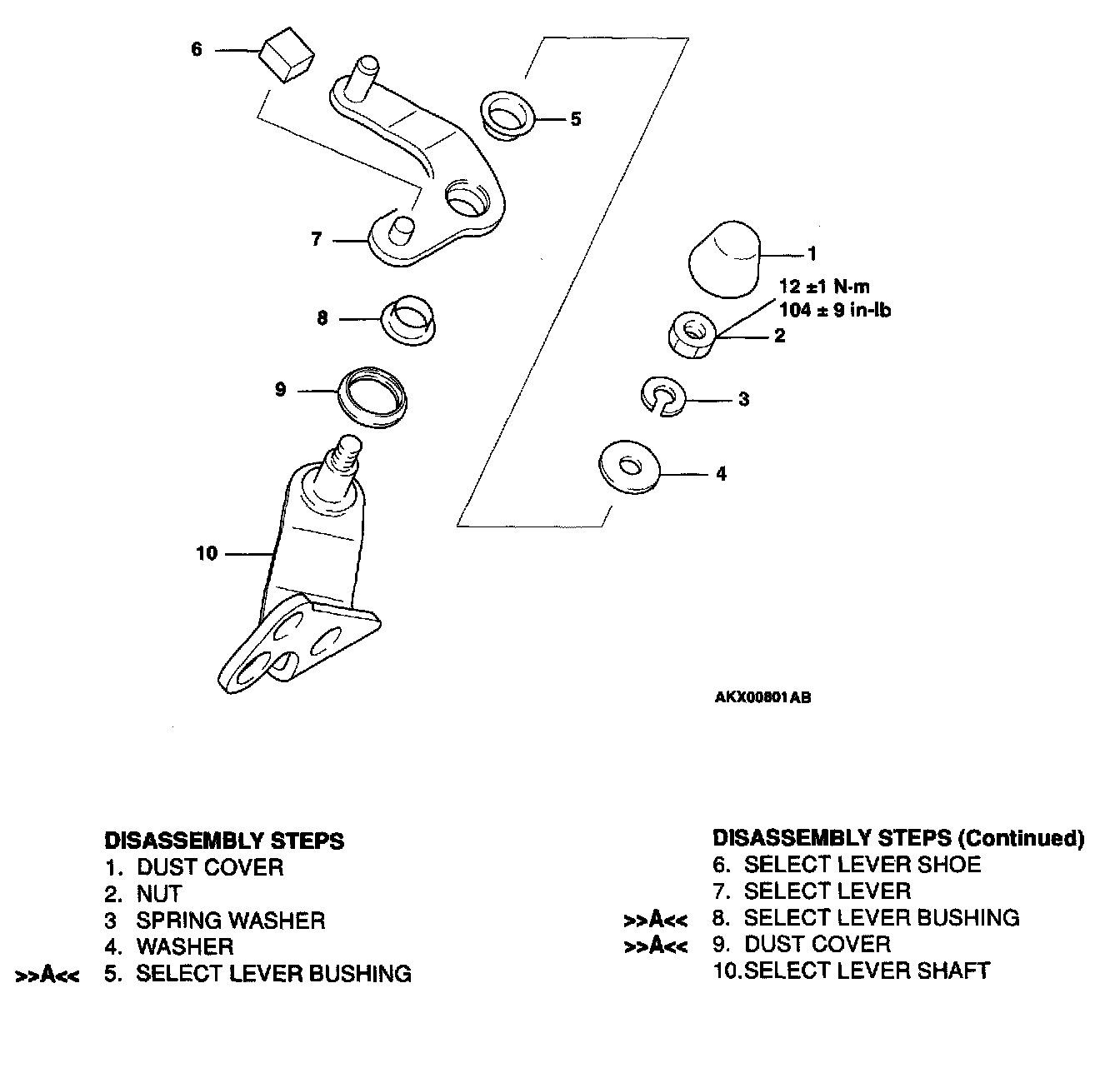

DISASSEMBLY AND ASSEMBLY
ASSEMBLY SERVICE POINT
>>A<

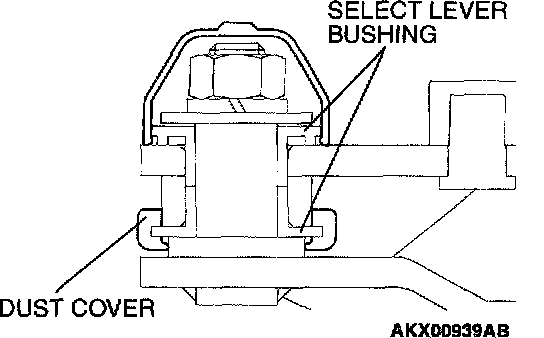

Use the figure to make sure the dust cover and select lever bushing installation direction is correct, and the distinguished parts are correctly assembled.
DISASSEMBLY AND ASSEMBLY
ASSEMBLY SERVICE POINT
>>A<
Use the figure to make sure the dust cover and select lever bushing installation direction is correct, and the distinguished parts are correctly assembled.
