Clutch Pedal Assembly: Service and Repair

CLUTCH PEDAL

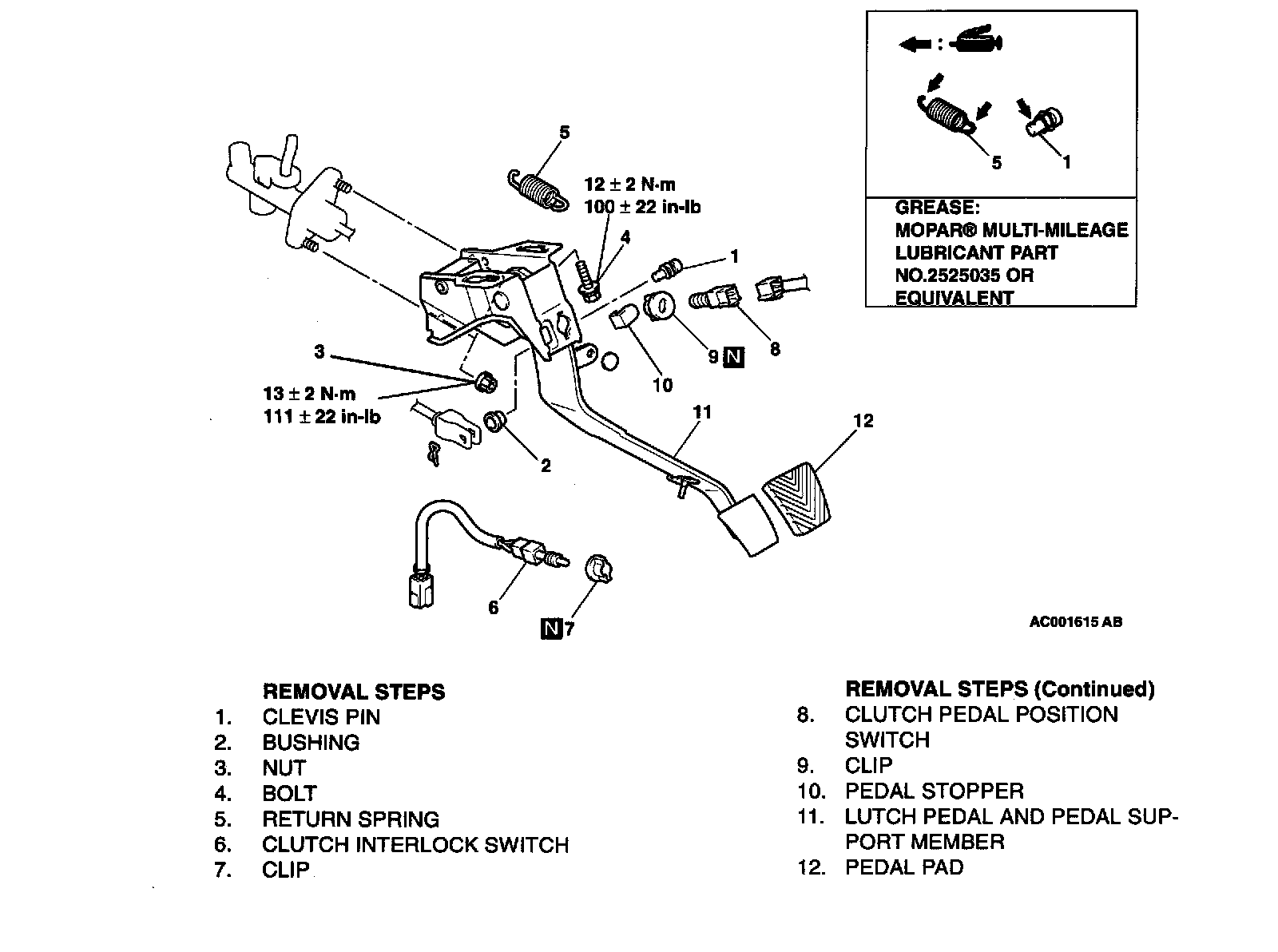

REMOVAL AND INSTALLATION
INSPECTION
- Check the bushing for wear.
- Check the clutch pedal for bending or twisting.
- Check the return spring for damage or deterioration.
- Check the turnover spring for damage or deterioration.
- Check the pedal pad for damage or wear.
