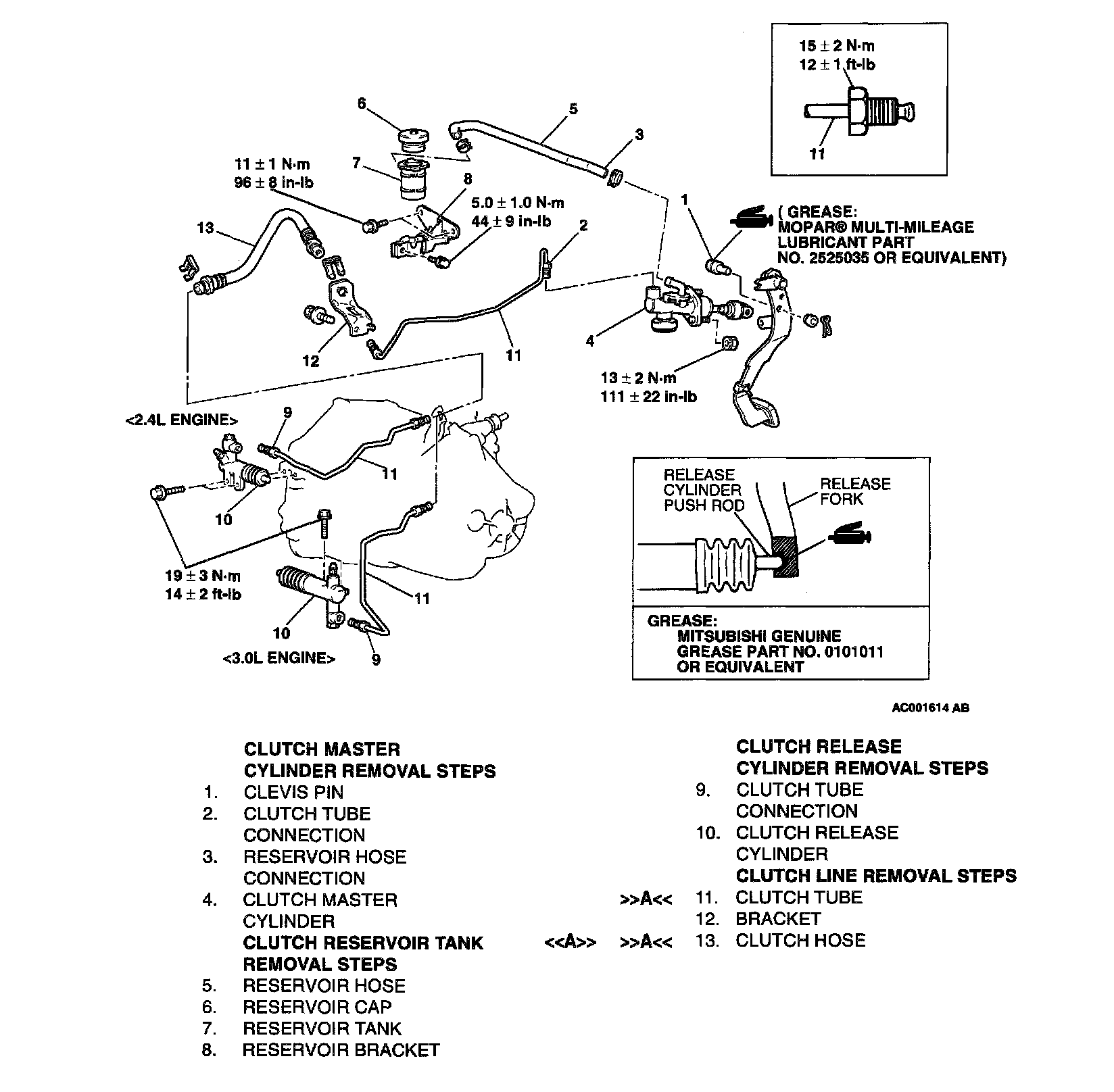

Removal and Installation
�(.:
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT

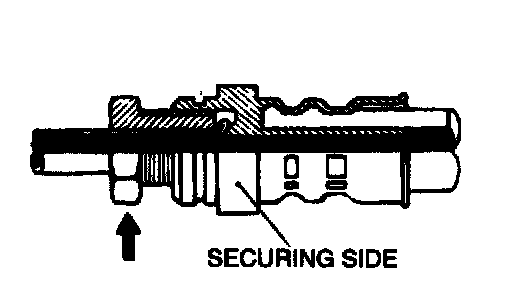

<>CLUTCH HOSE REMOVAL

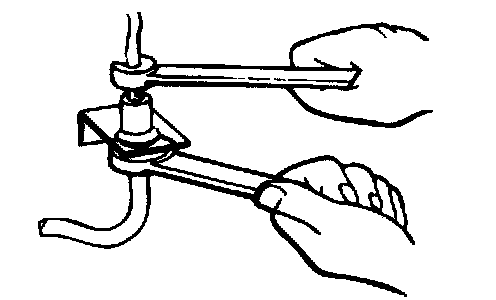

Holding the nut at the clutch hose side, loosen the bare nut on the clutch tube.
INSTALLATION SERVICE POINT
>>A<
1. Temporarily tighten the clutch tube flare nut by hand, and then tighten it to the specified torque, being careful that the clutch hose does not become twisted.
2. After tightening the clutch tube flare nut, check to be sure there is no leakage of the clutch fluid.
INSPECTION
- Check the bushing for wear.
- Check the master cylinder or clutch hose for fluid leakage.
- Check the clutch hose or tube for cracks or clogging.
