Disassembly and Assembly

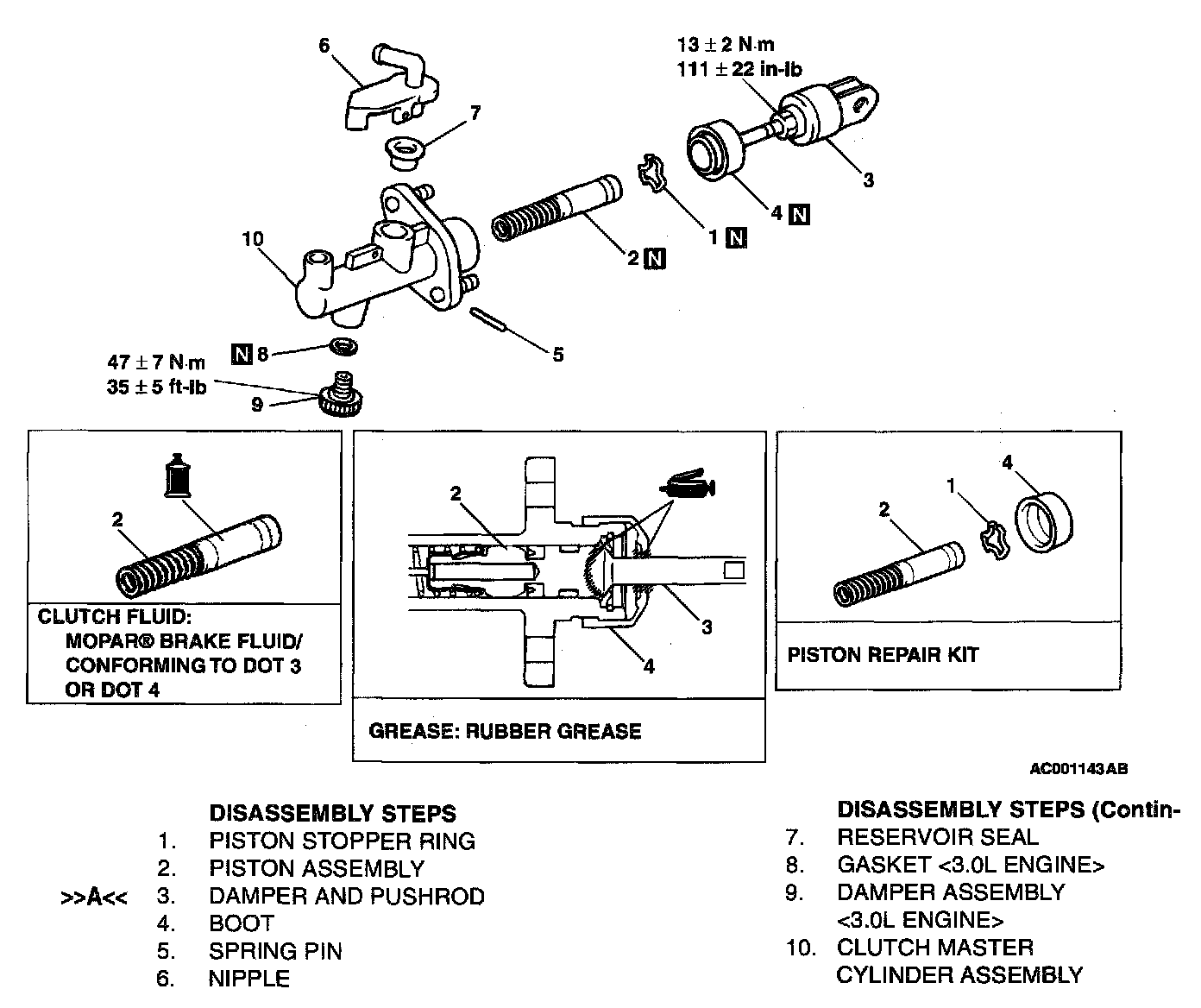

DISASSEMBLY AND ASSEMBLYCLUTCH MASTER CYLINDER
CAUTION: Do not disassemble the piston assembly.
ASSEMBLY SERVICE POINT
>>A<

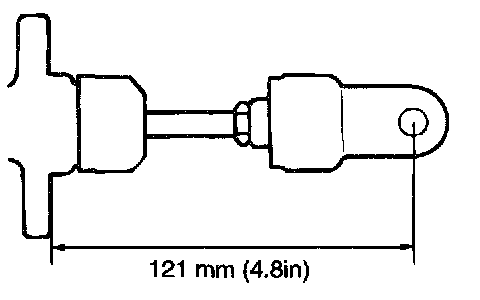

Set the length of the pushrod assembly to the shown dimension to make the adjustment of the clutch pedal easier.
INSPECTION
- Check the inside cylinder body for rust and scars
- Check the piston cup for wear and deformation
- Check the piston for rust and scars
- Check the pipe connection for clogging
