Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Tools and Equipment >> Automatic Transaxle Overhaul

Automatic Transaxle Overhaul

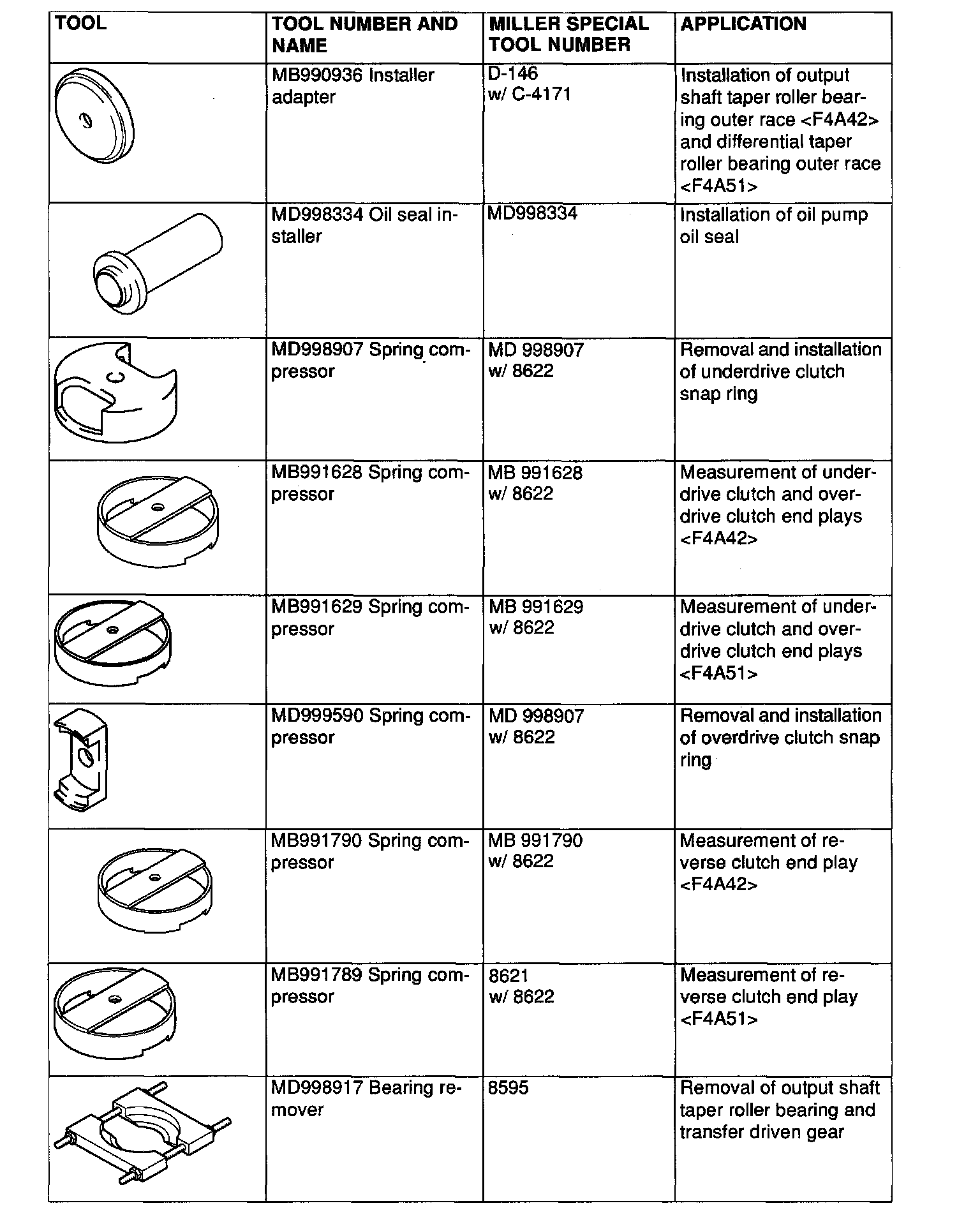

SPECIAL TOOL(S) Part 1 of 5

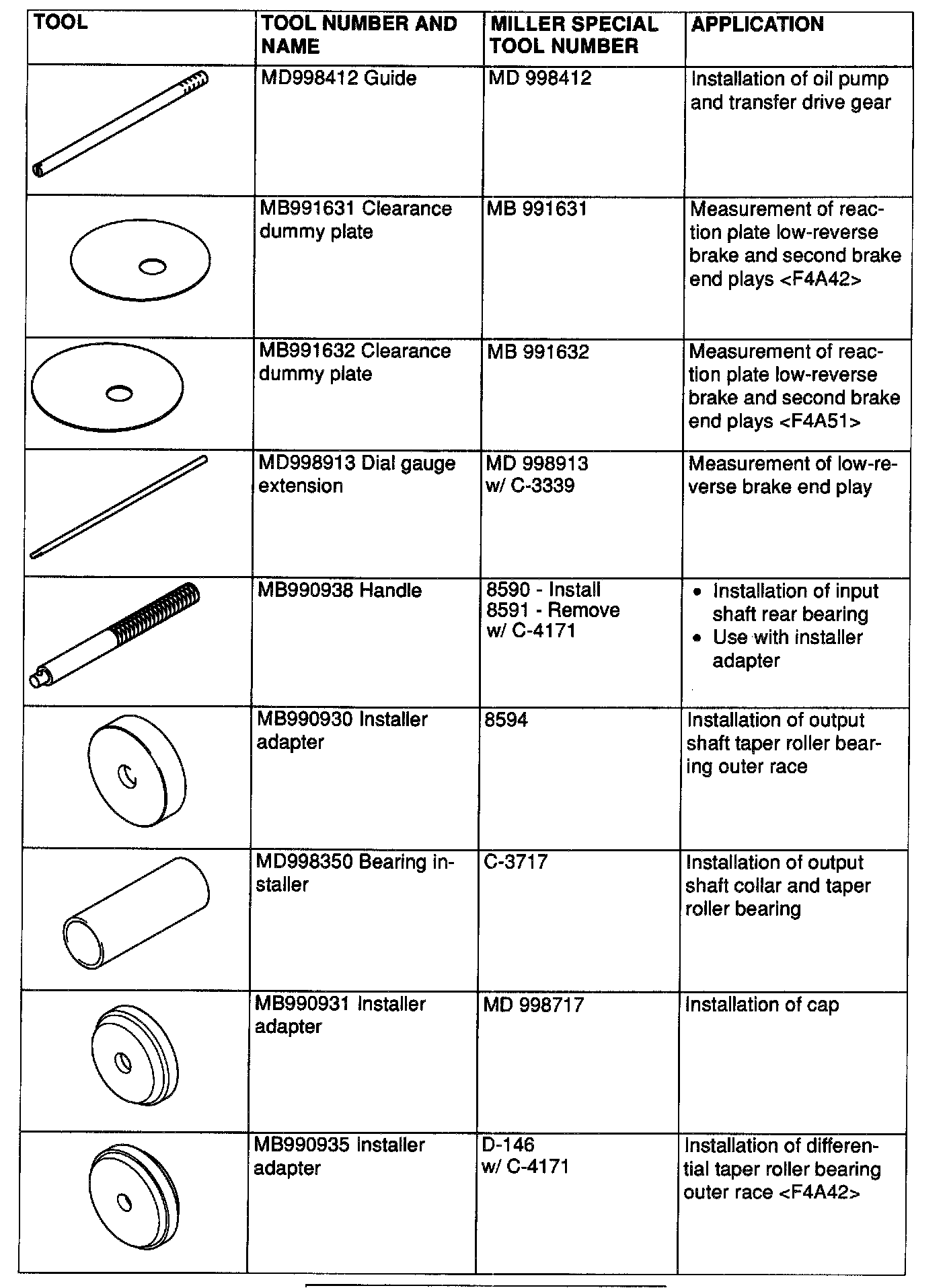

SPECIAL TOOL(S) Part 2 of 5

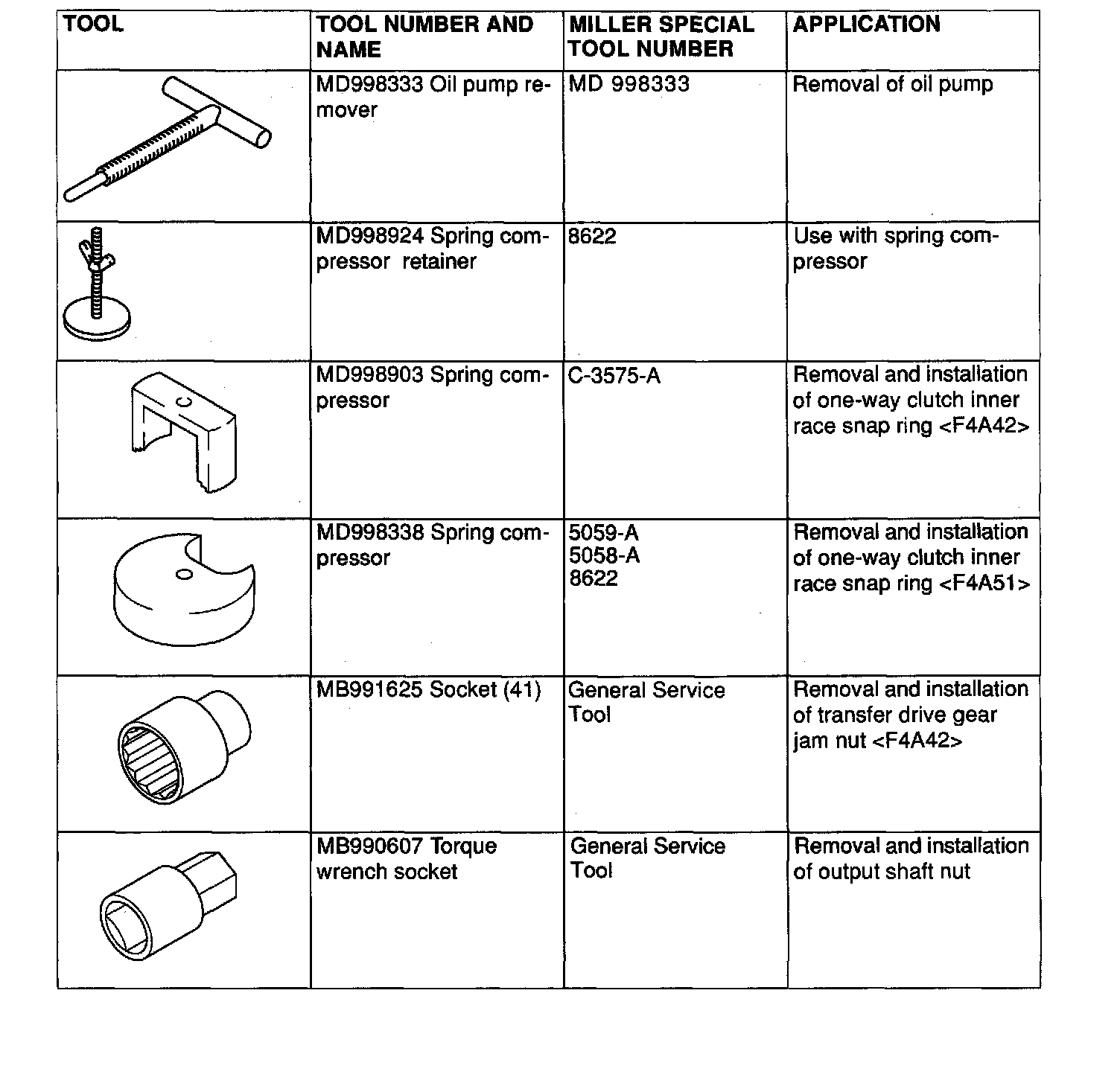

SPECIAL TOOL(S) Part 3 of 5

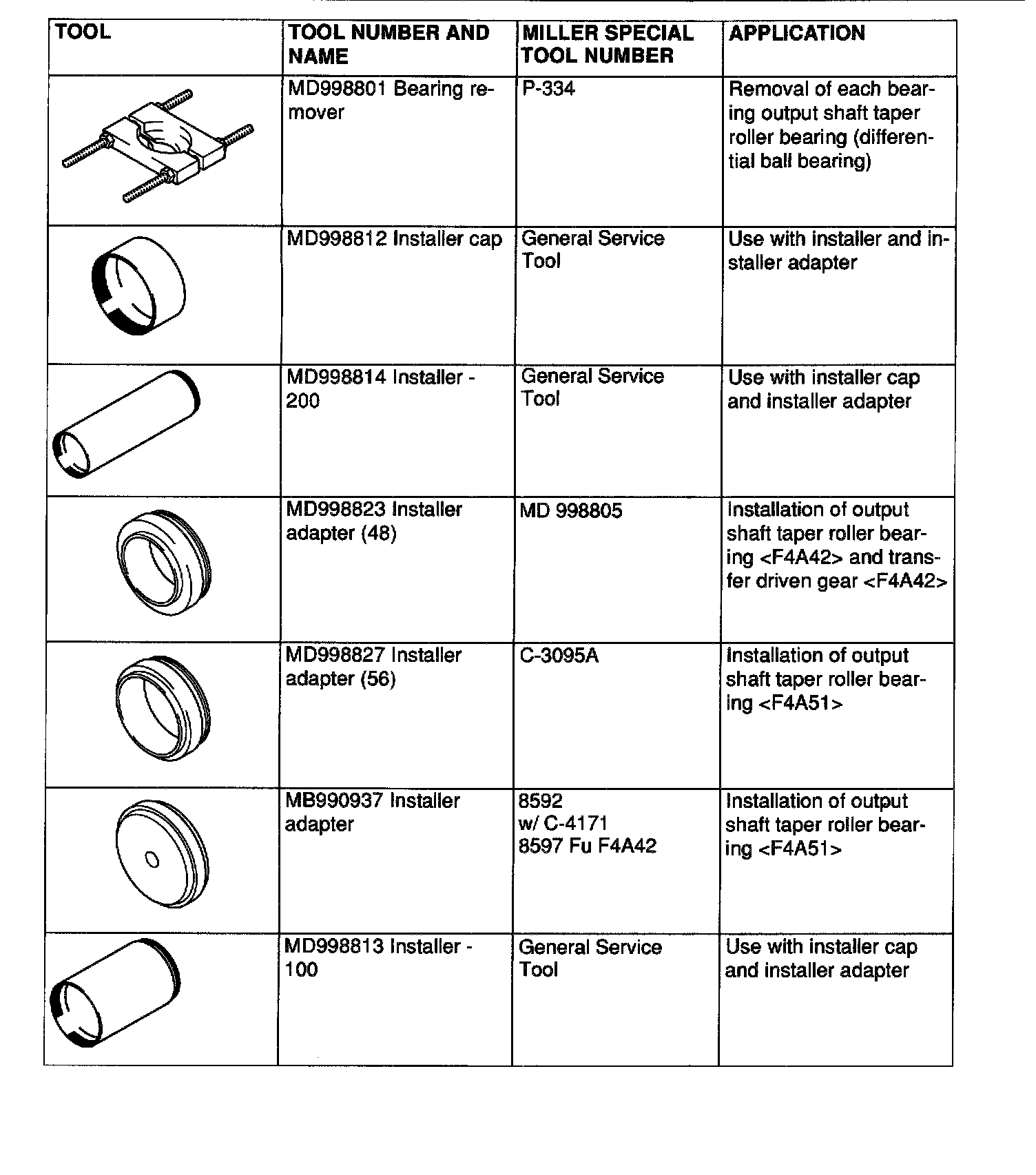

SPECIAL TOOL(S) Part 4 of 5

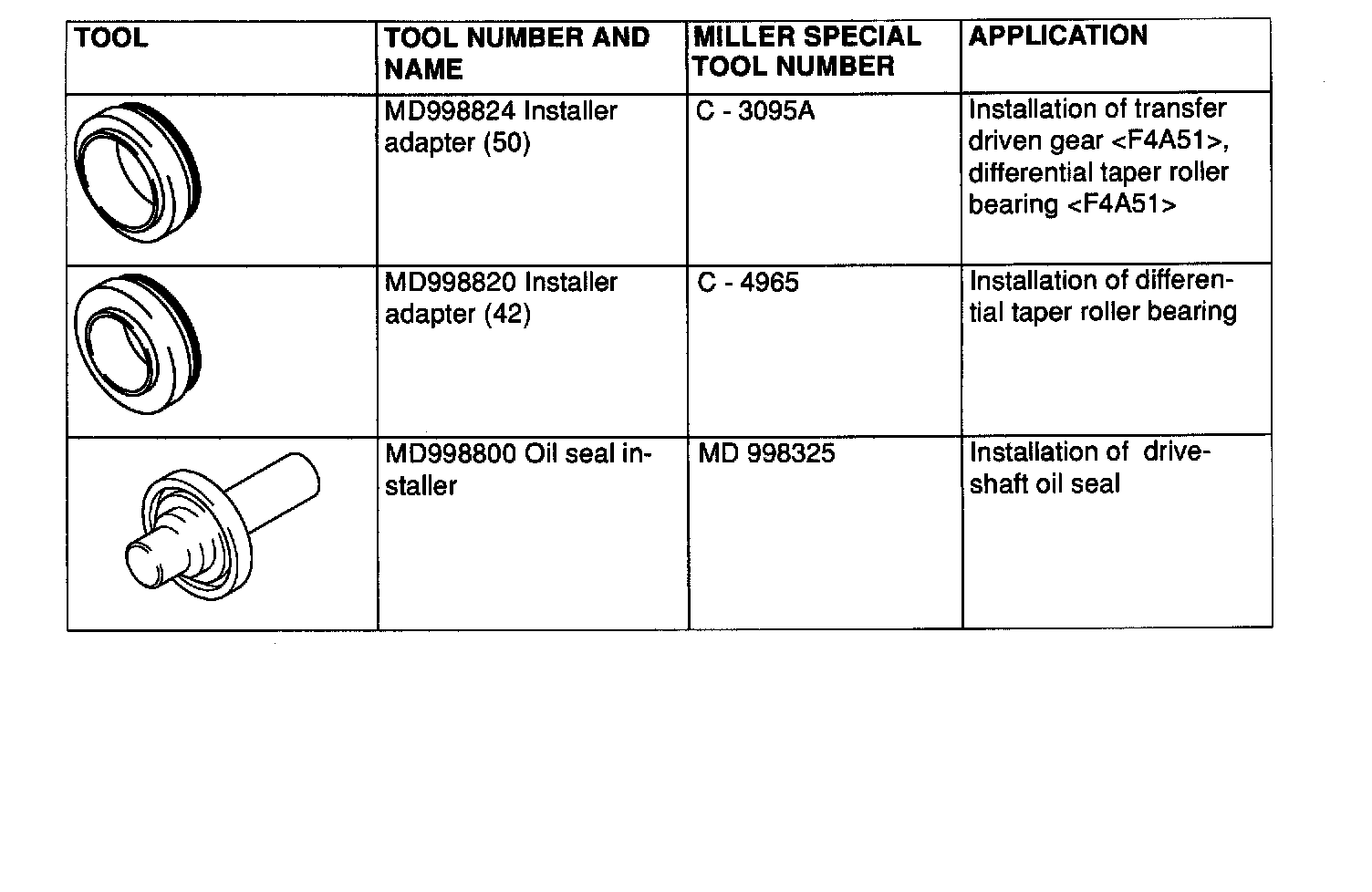

SPECIAL TOOL(S) Part 5 of 5
