Shifter A/T: Service and Repair

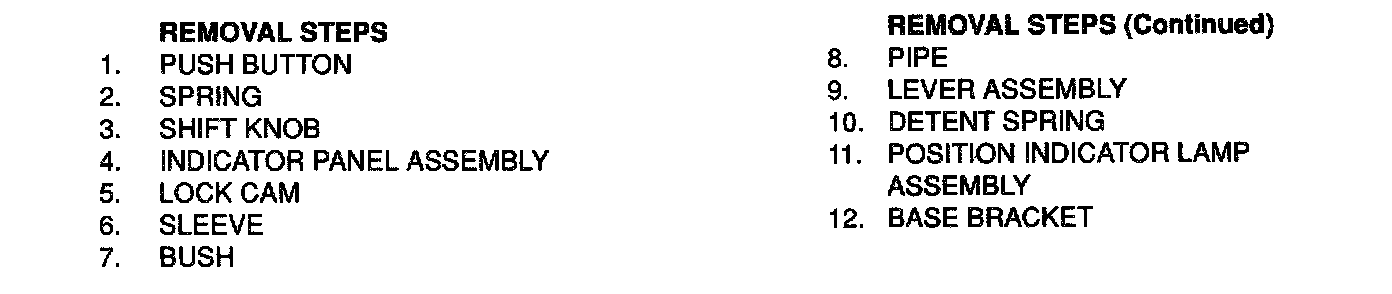

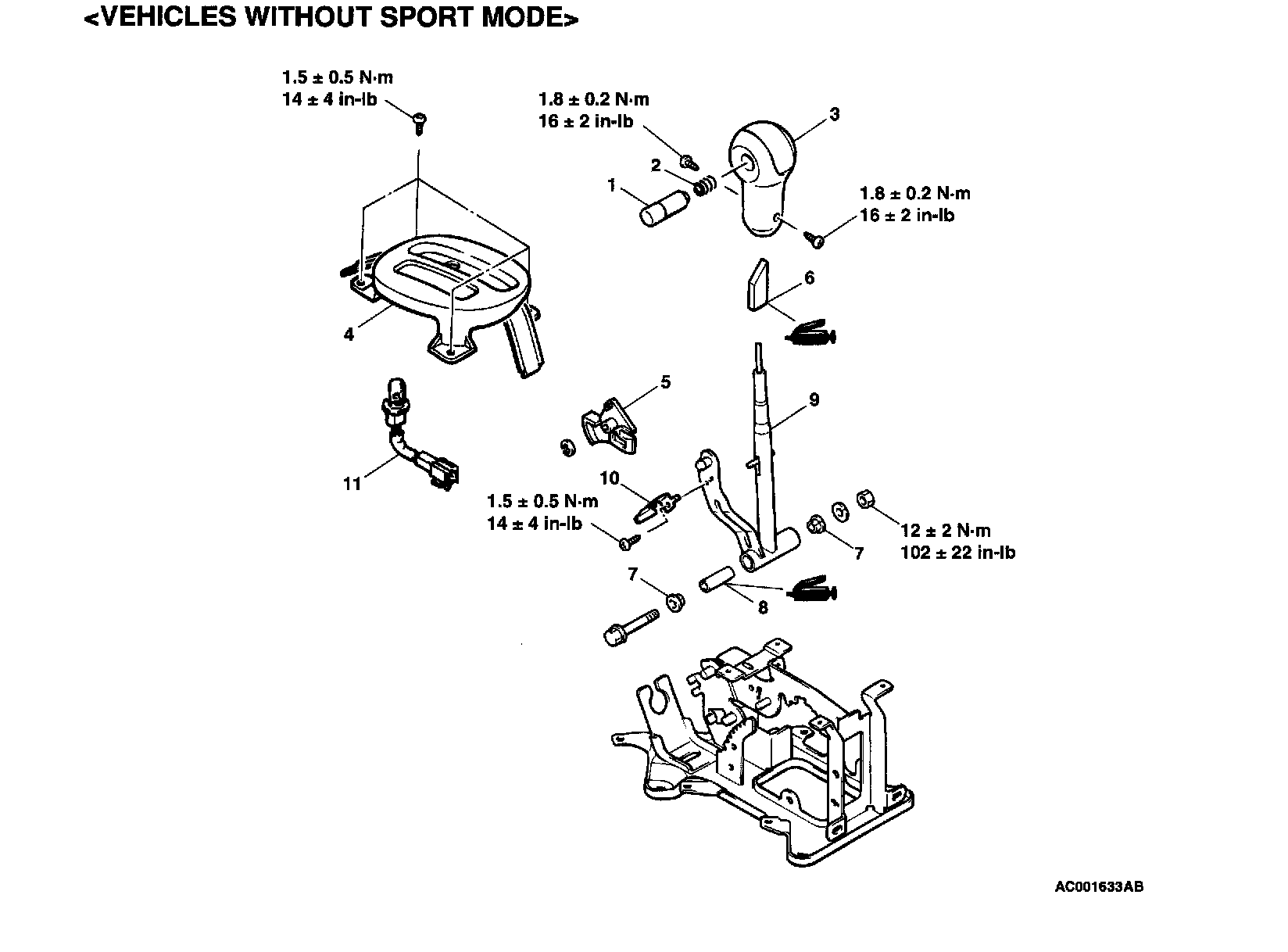

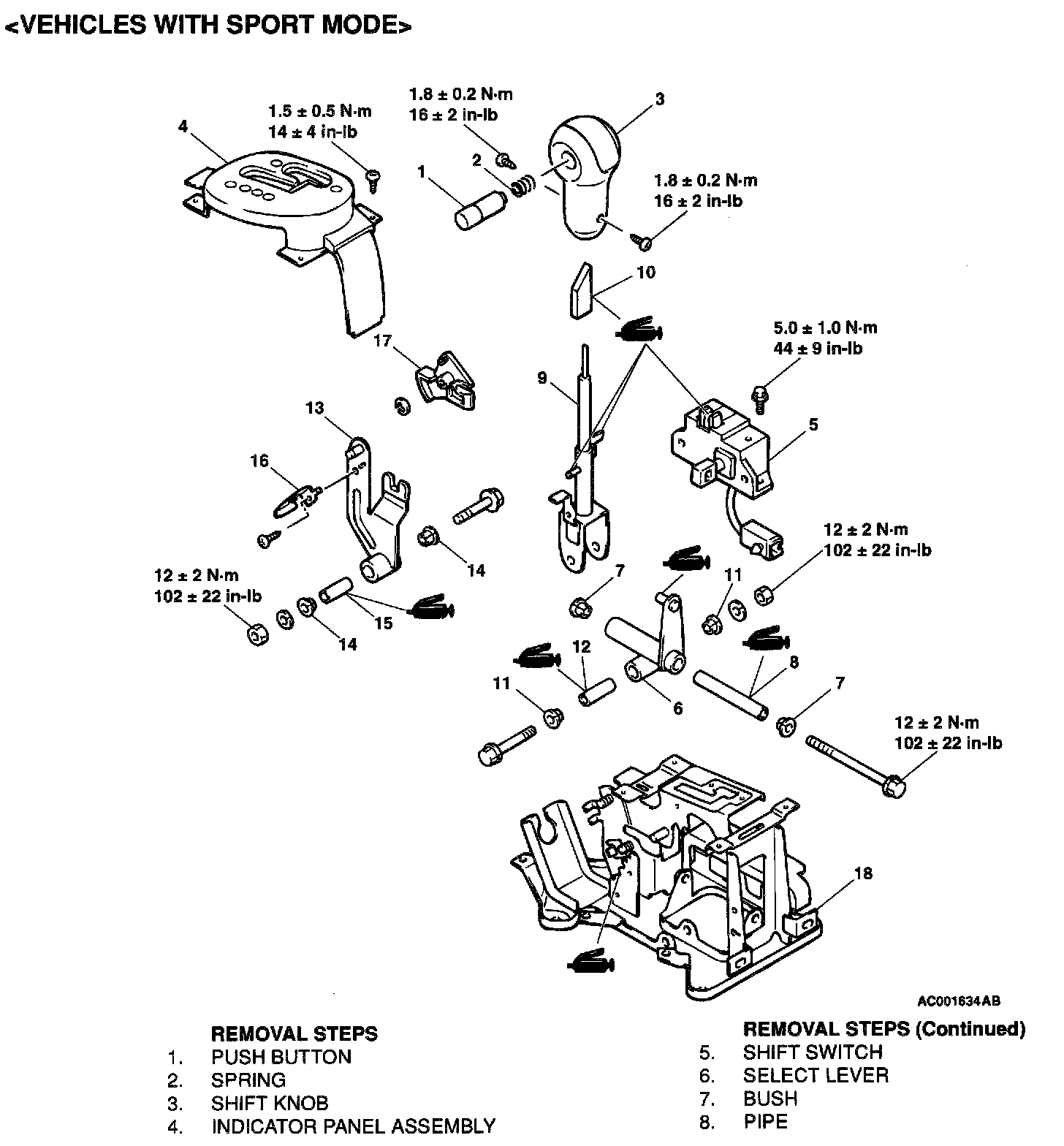

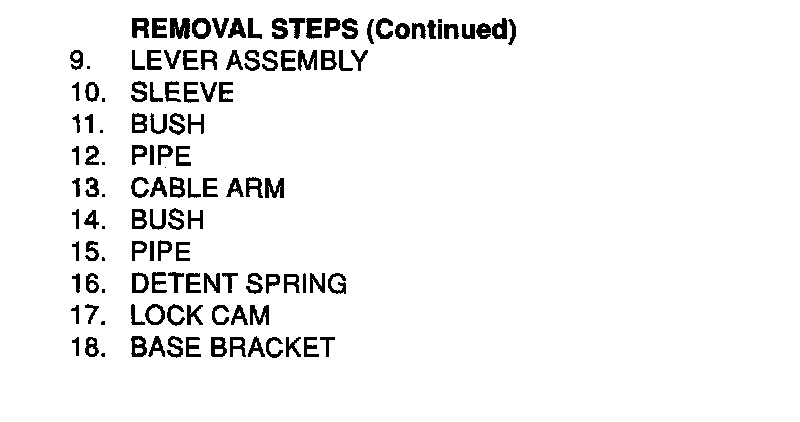

DISASSEMBLY AND ASSEMBLY



















INSPECTION

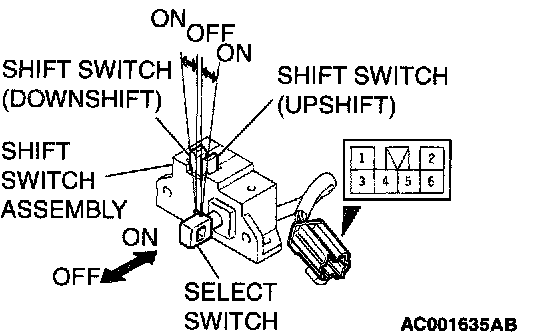

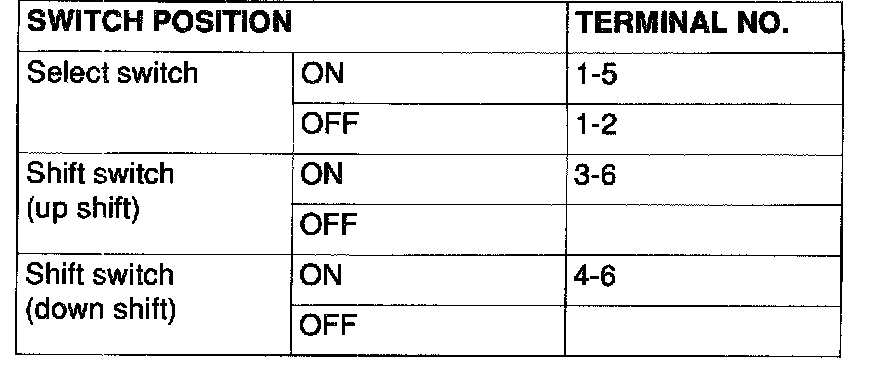

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK
