Introduction to A/T Key Interlock and Shift Lock Mechanisms

KEY INTERLOCK MECHANISM CHECK

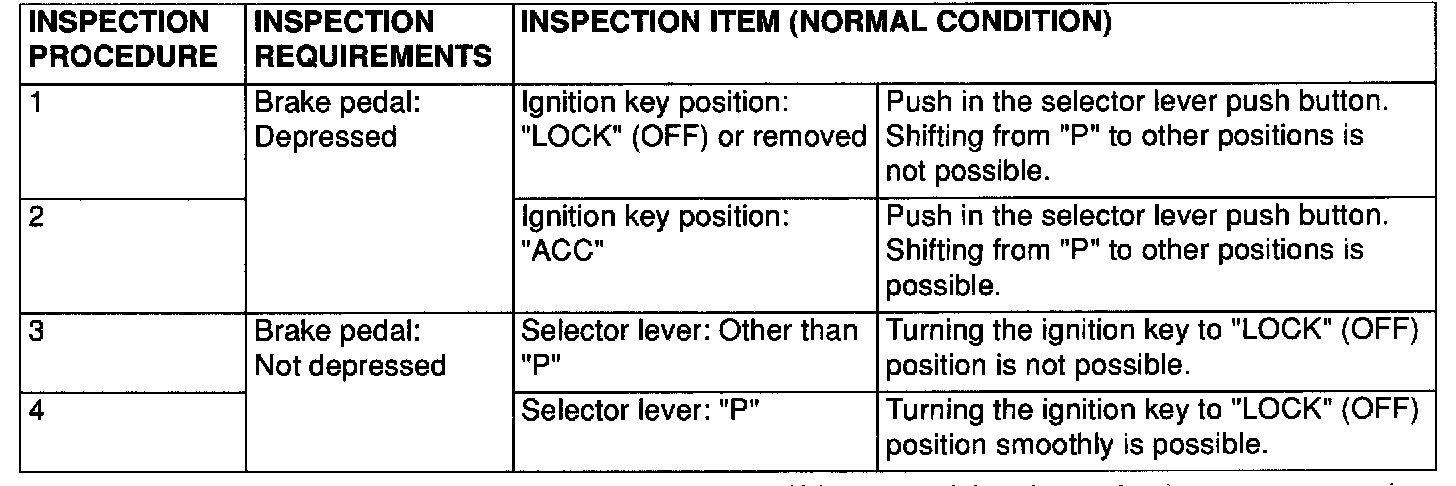

1. Carry out the following inspection.









2. When any of the above checks are not normal, adjust the key interlock cable in following procedure.
1) Remove the floor console.
2) Shift selector lever to "P."
3) Turn the ignition key to "LOCK" (OFF) position.

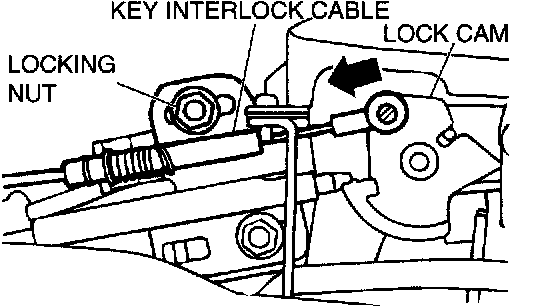

4) Loosen the locking nut of the key interlock cable.
5) Push the cable joint on the lock cam gently toward the arrow until the cable stops. Tighten the locking nut.
6) Install the floor console.
3. After adjusting, check the operation once more. If the operation is still incorrect, replace the key interlock cable.
