Automatic Transmission/Transaxle: Diagrams

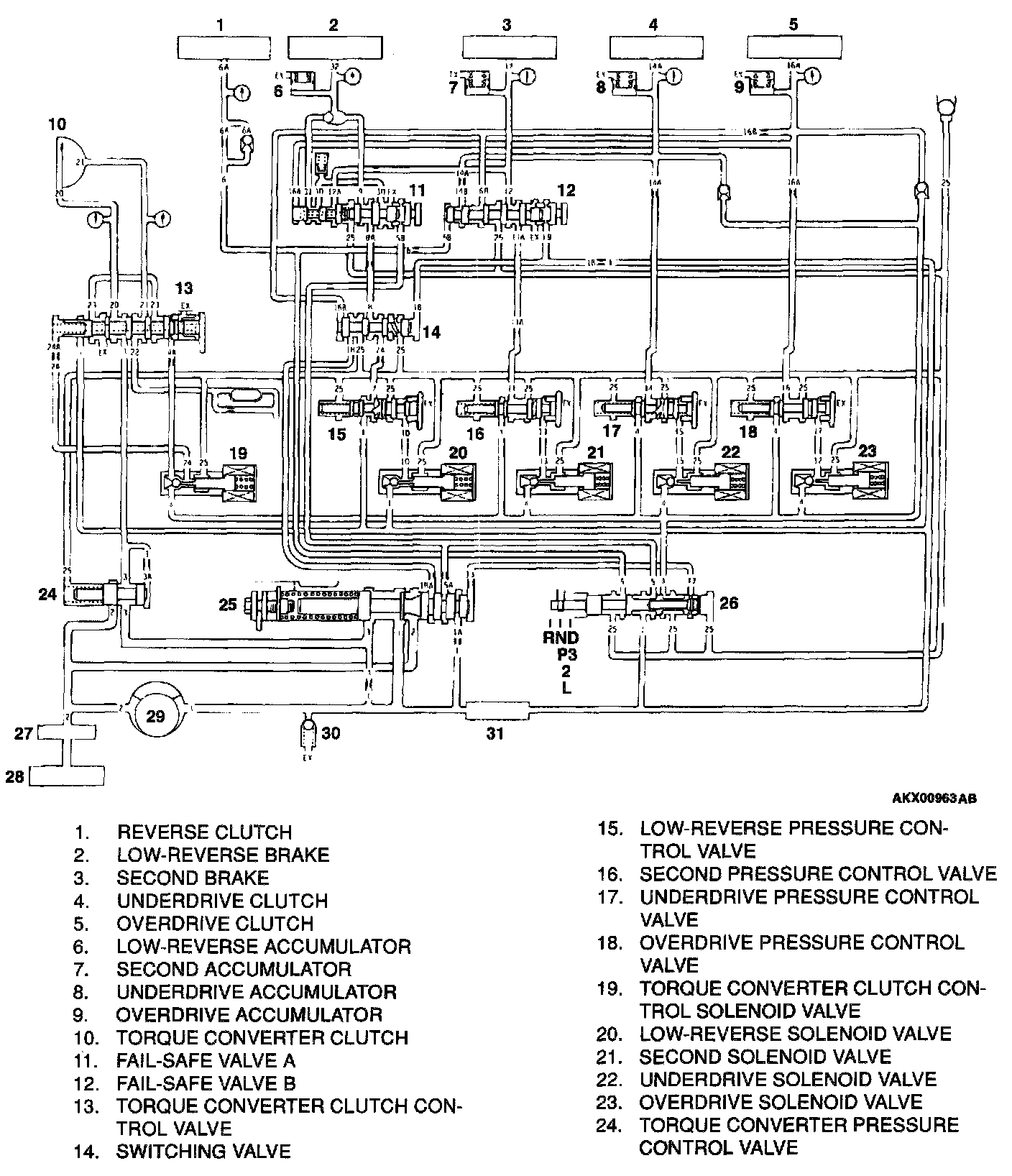

Hydraulic Circuit Part 1 of 2

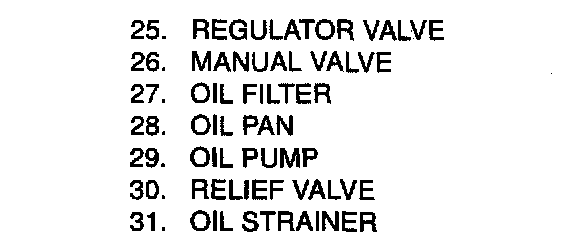

Hydraulic Circuit Part 2 of 2
