Rear Knuckle: Service and Repair

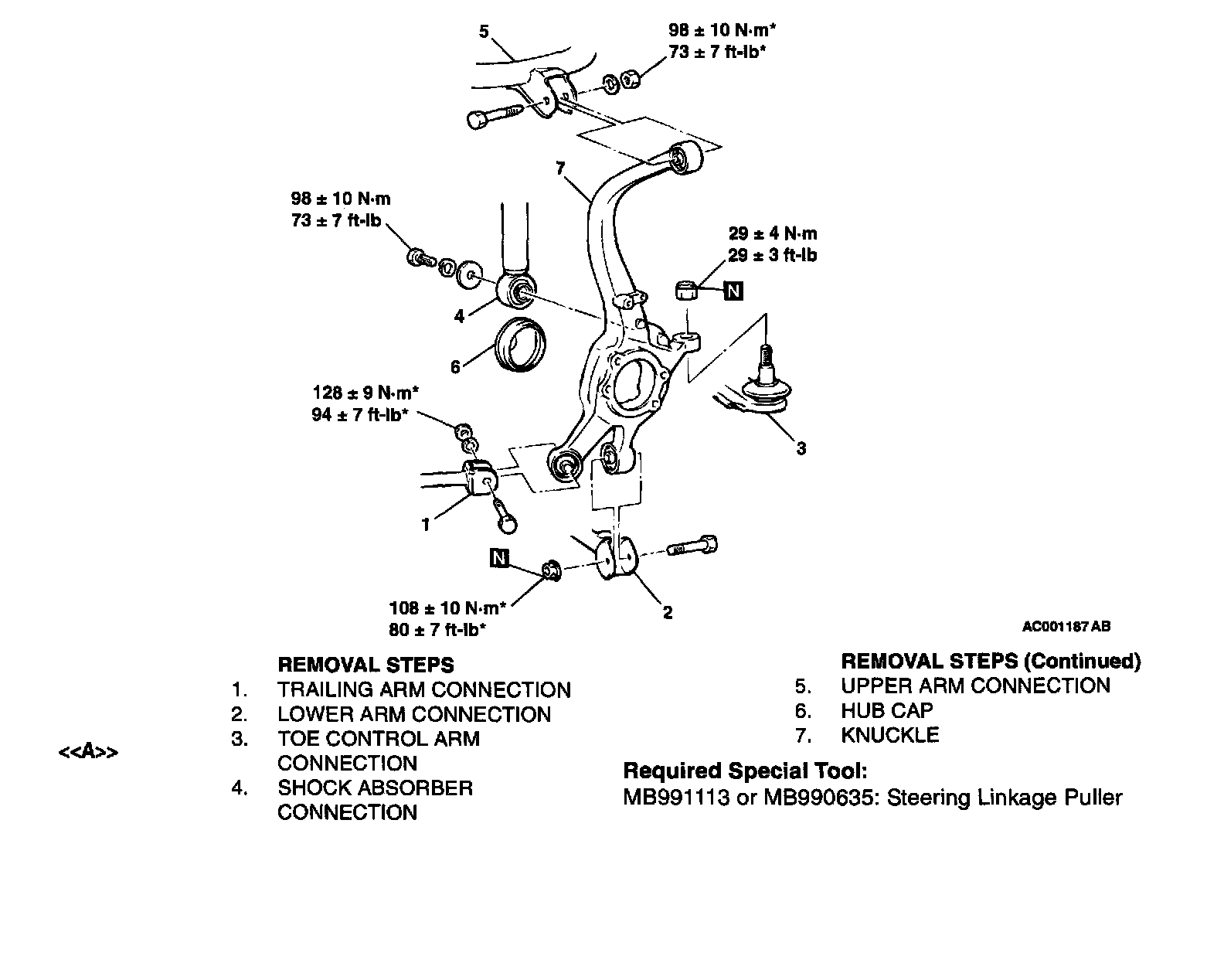

REMOVAL AND INSTALLATION





CAUTION: Indicates parts, which should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

REMOVAL SERVICE POINT

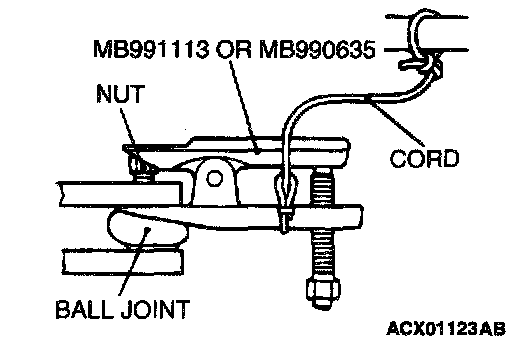

<> TOE CONTROL ARM DISCONNECTION

CAUTION:
- Use special tool MB991113 or MB990635 to loosen the nut from the ball joint instead of removing it.
- Hang special tool MB991113 or MB990635 with ropes to prevent it from falling.

KNUCKLE INSPECTION
Check the knuckle for wear or cracks.
