Upper Control Arm

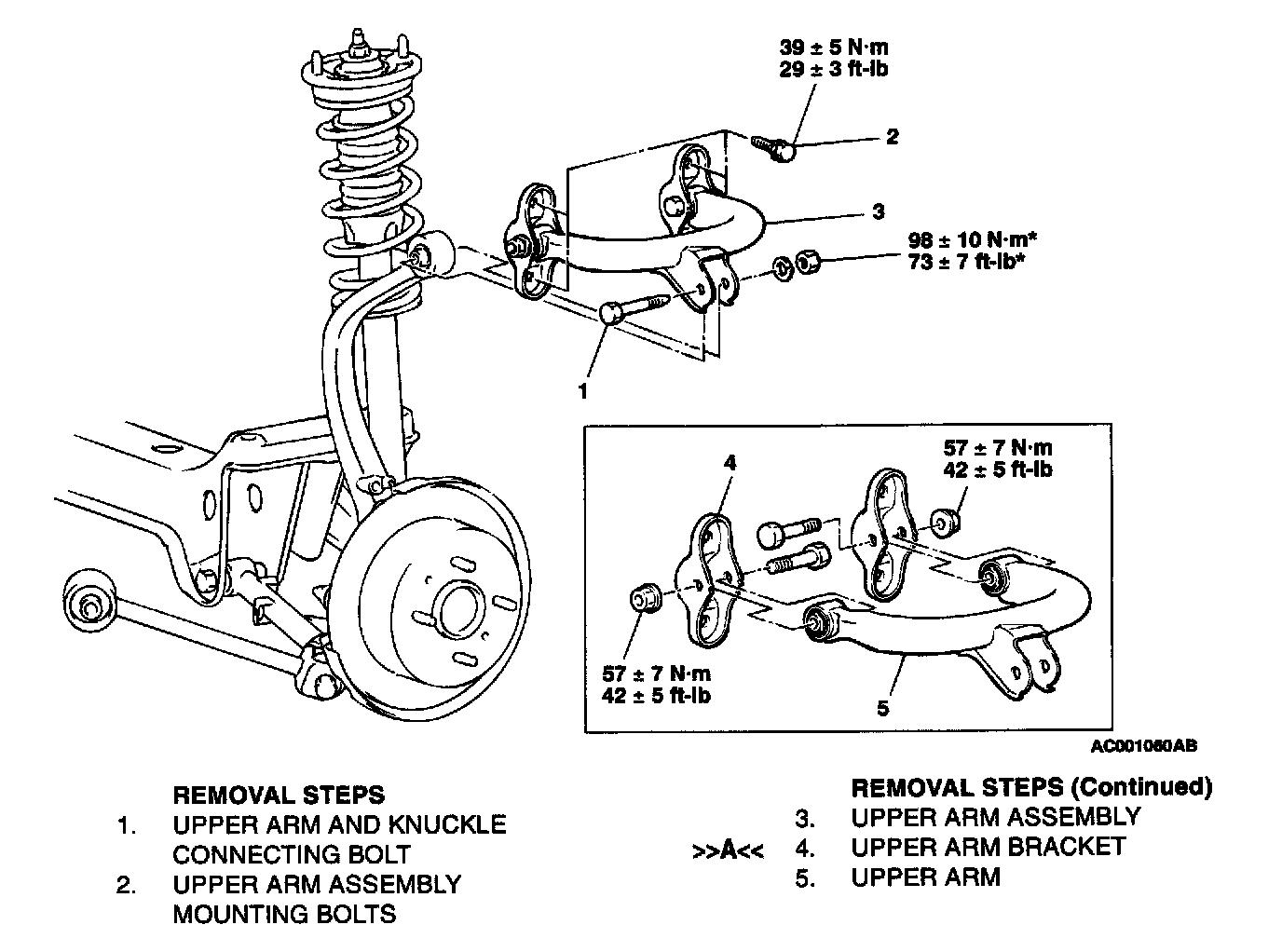

UPPER ARM ASSEMBLY





REMOVAL AND INSTALLATION





CAUTION: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the around in the unladen condition.

Installation Service Point

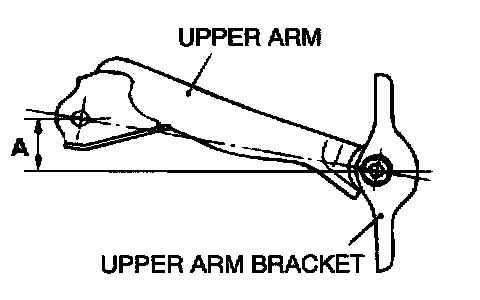

>>A<< Upper Arm Bracket Installation








Install the upper arm bracket so that the dimension shown in the illustration is at the standard value.
Standard value (A): 37.2 ± 2 mm (1.46 ± 0.08 inches)

INSPECTION
- Check the bushings for wear and deterioration.
- Check the upper arm for bends or damage.
- Check all bolts for condition and straightness.
