Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Grounding Point >> Locations

Grounding Point: Locations

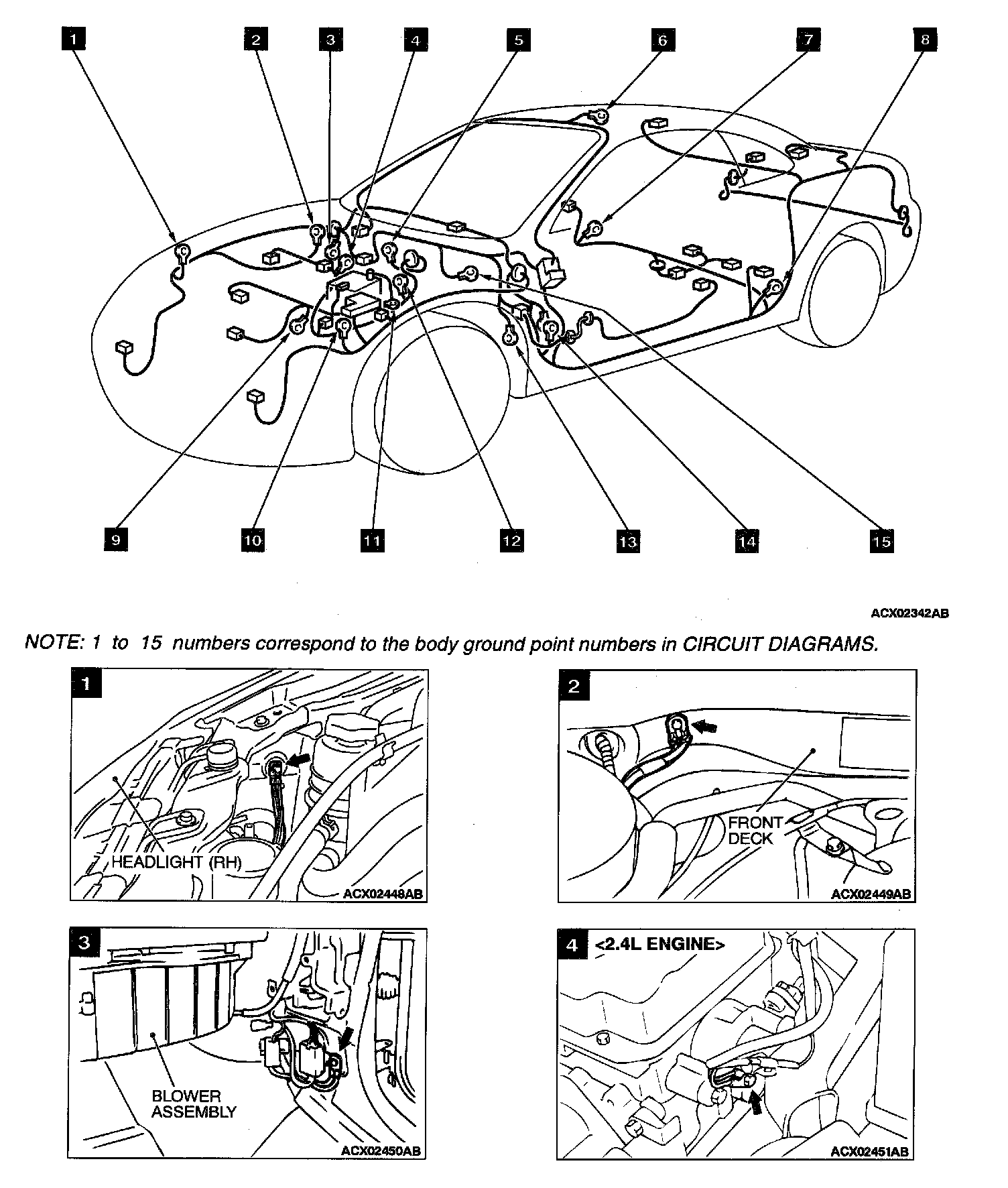

Overall View And Views 1 - 4:

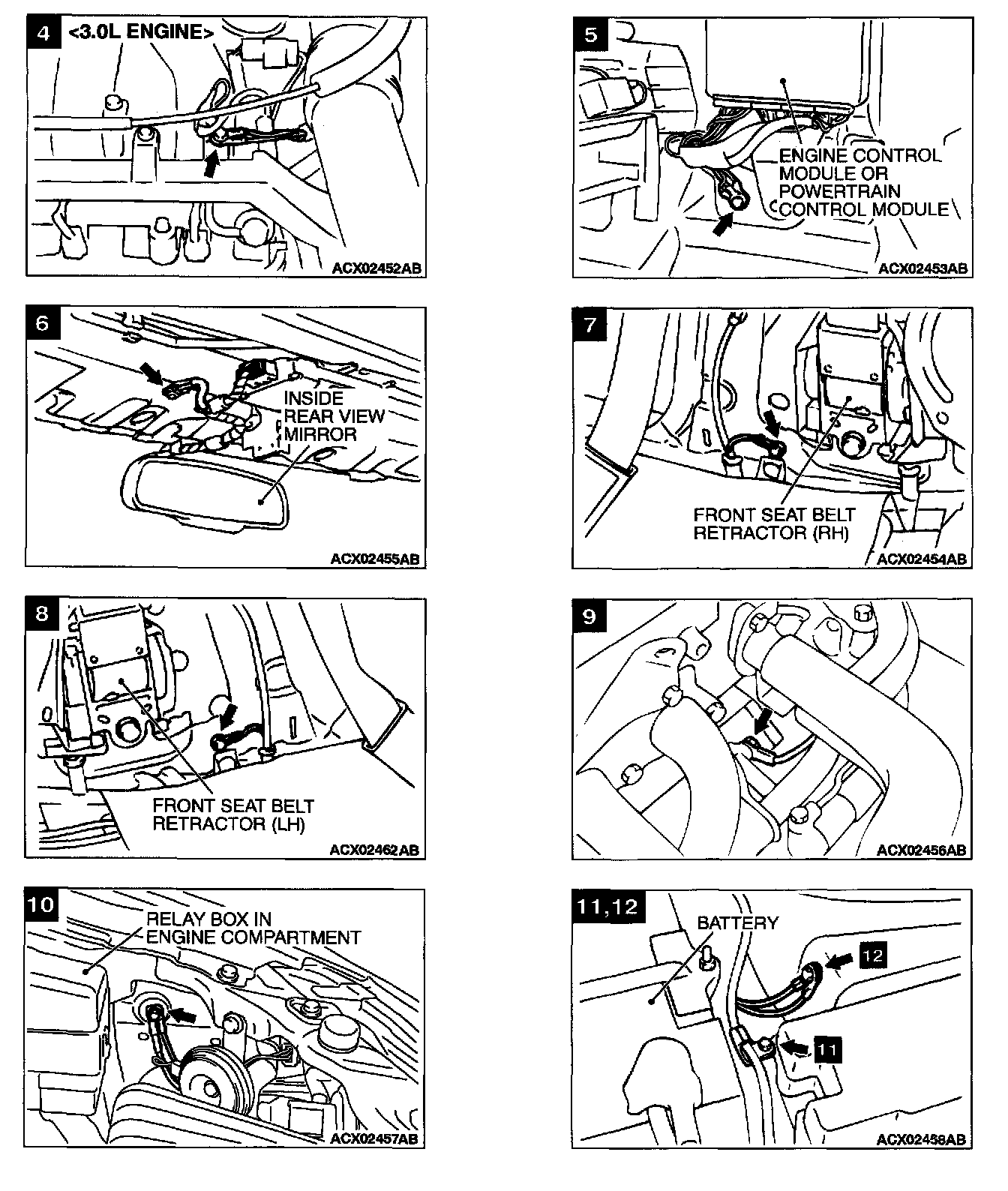

Views 4 - 12:

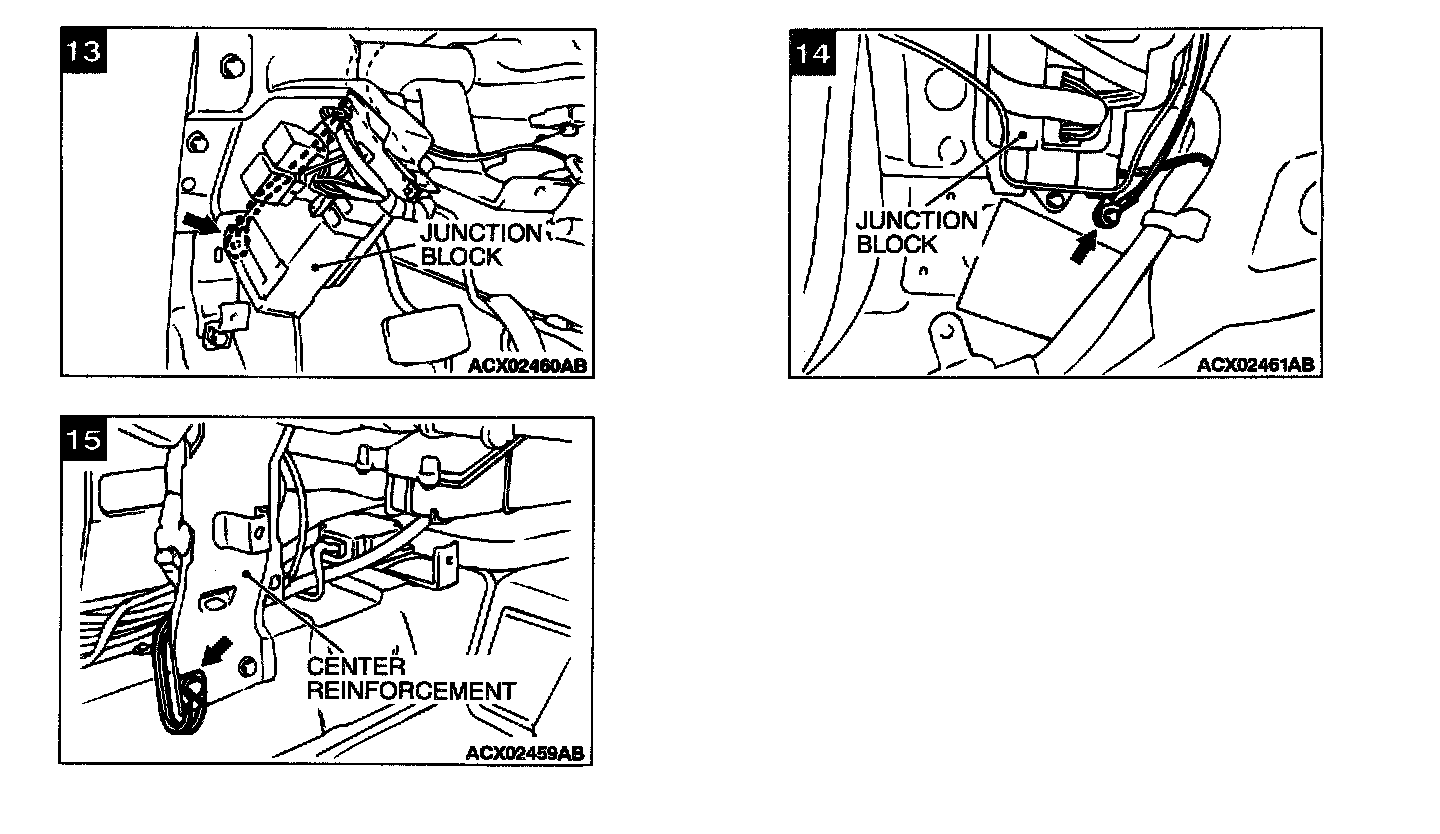

Views 13 - 15:
