Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Powertrain Management >> System Specifications

System Specifications

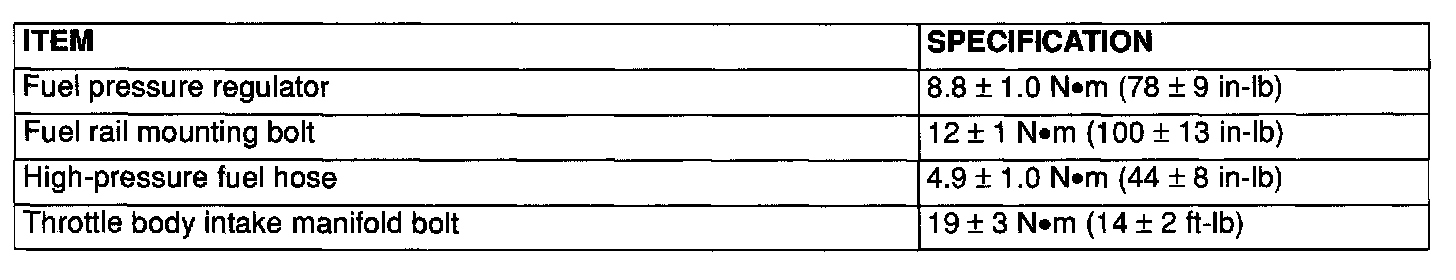

Fastener Tightening Specification:

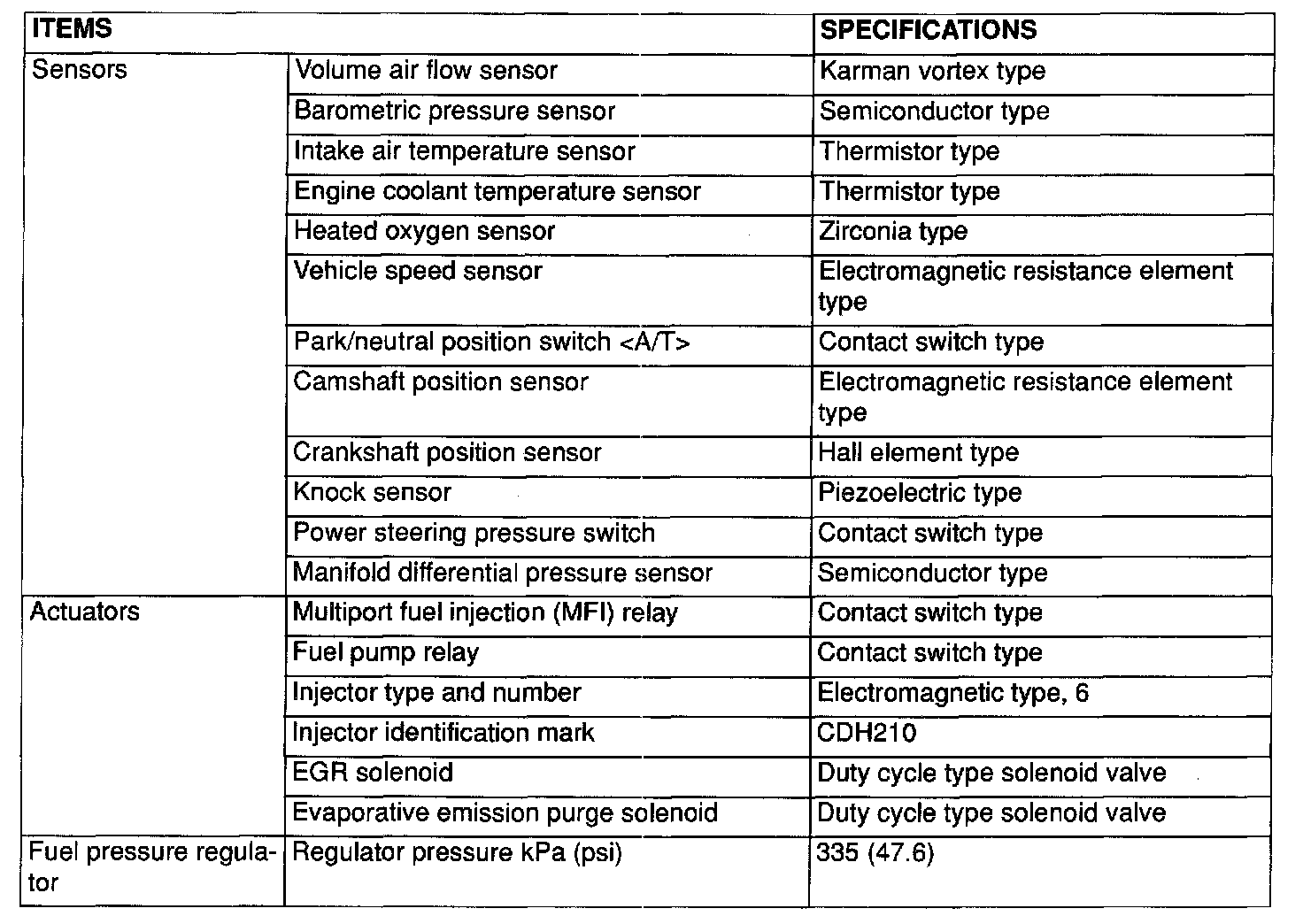

General Specifications ( Part 1 Of 2 ):

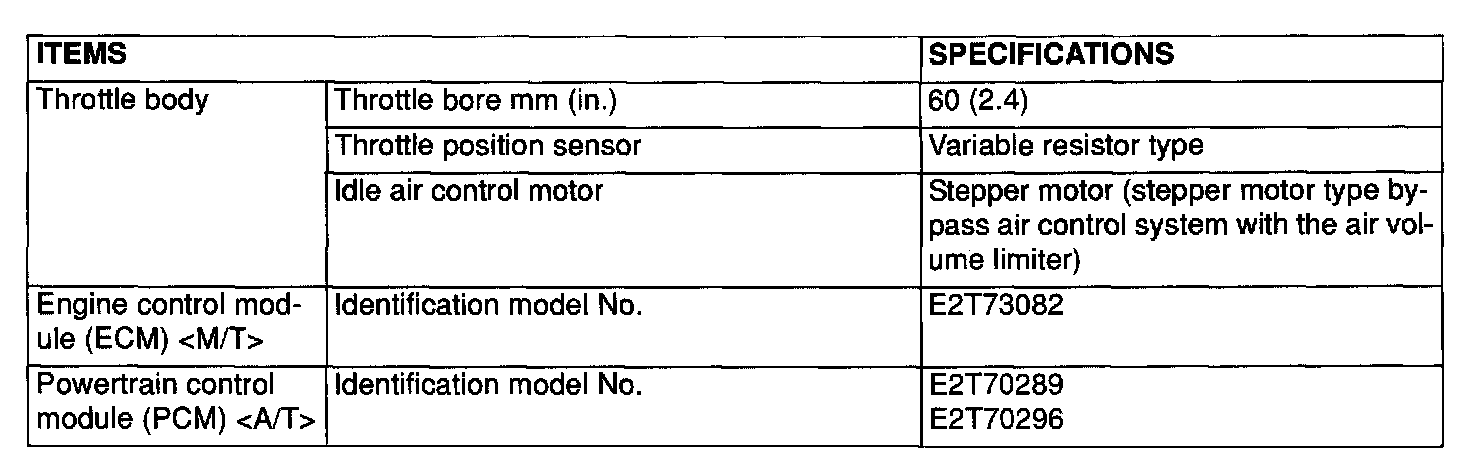

General Specifications ( Part 2 Of 2 ):

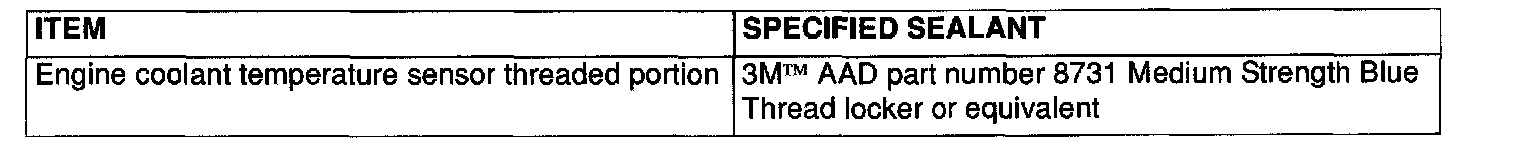

Sealant:
