Intake System Specifications

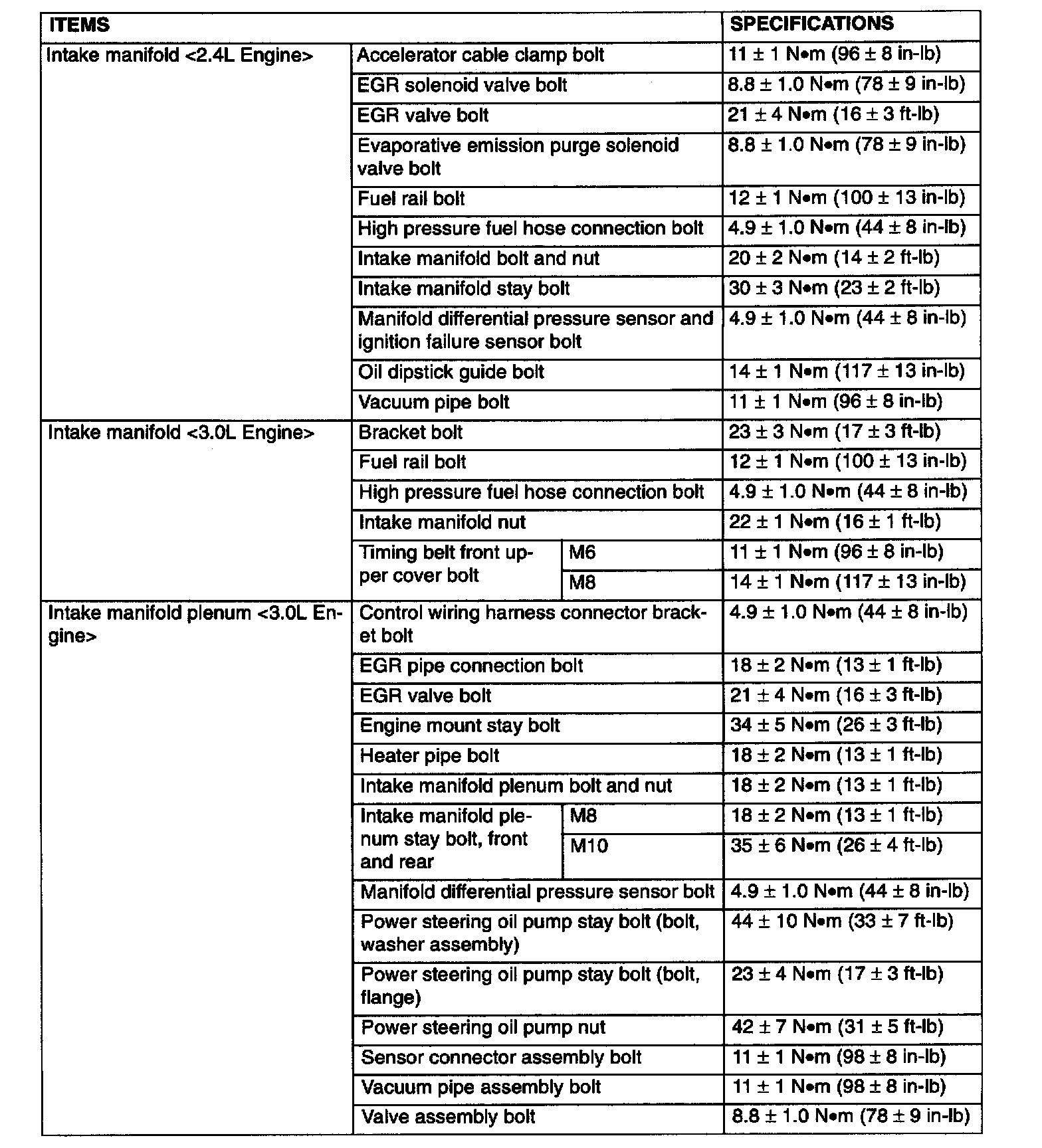

Intake System Fastener Tightening Specifications Part 1 of 2

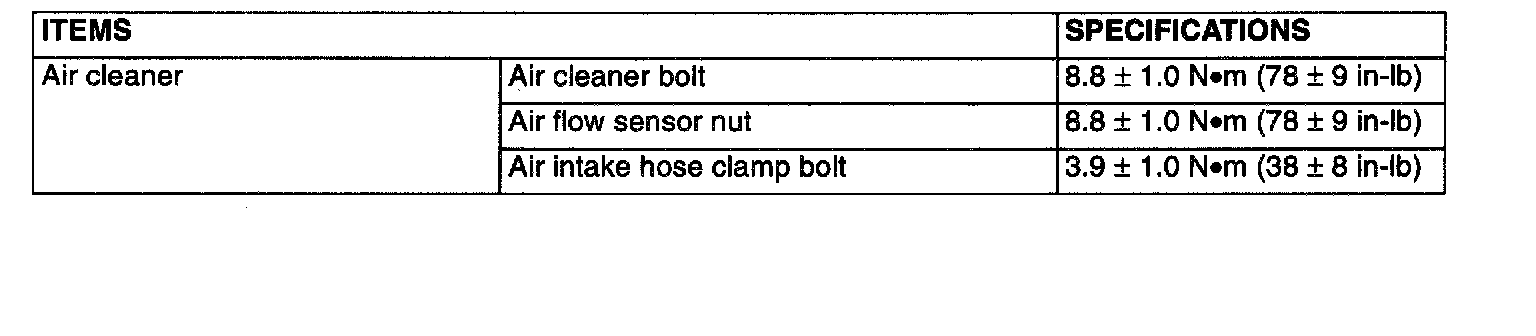

Intake System Fastener Tightening Specifications Part 2 of 2

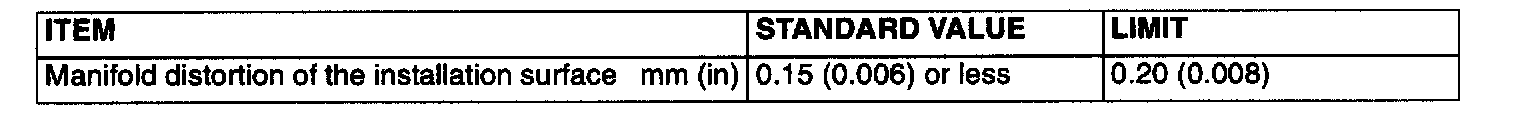

Intake System Service Specifications
