Home >> Chrysler >> 2001 >> Sebring Coupe V6-3.0L VIN H >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Instrument Cluster / Carrier

Instrument Cluster / Carrier

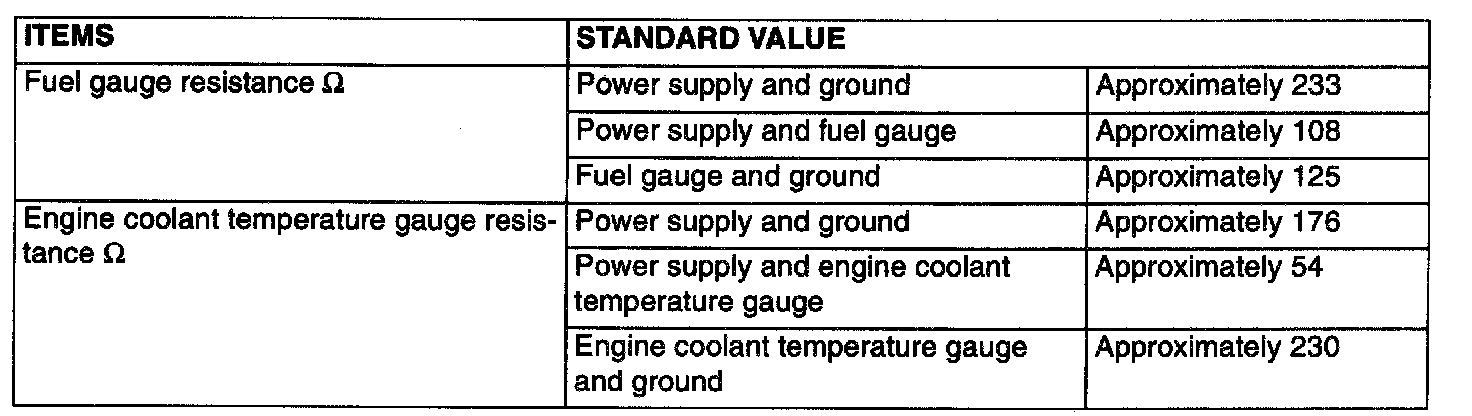

Service Specifications (Part 1):

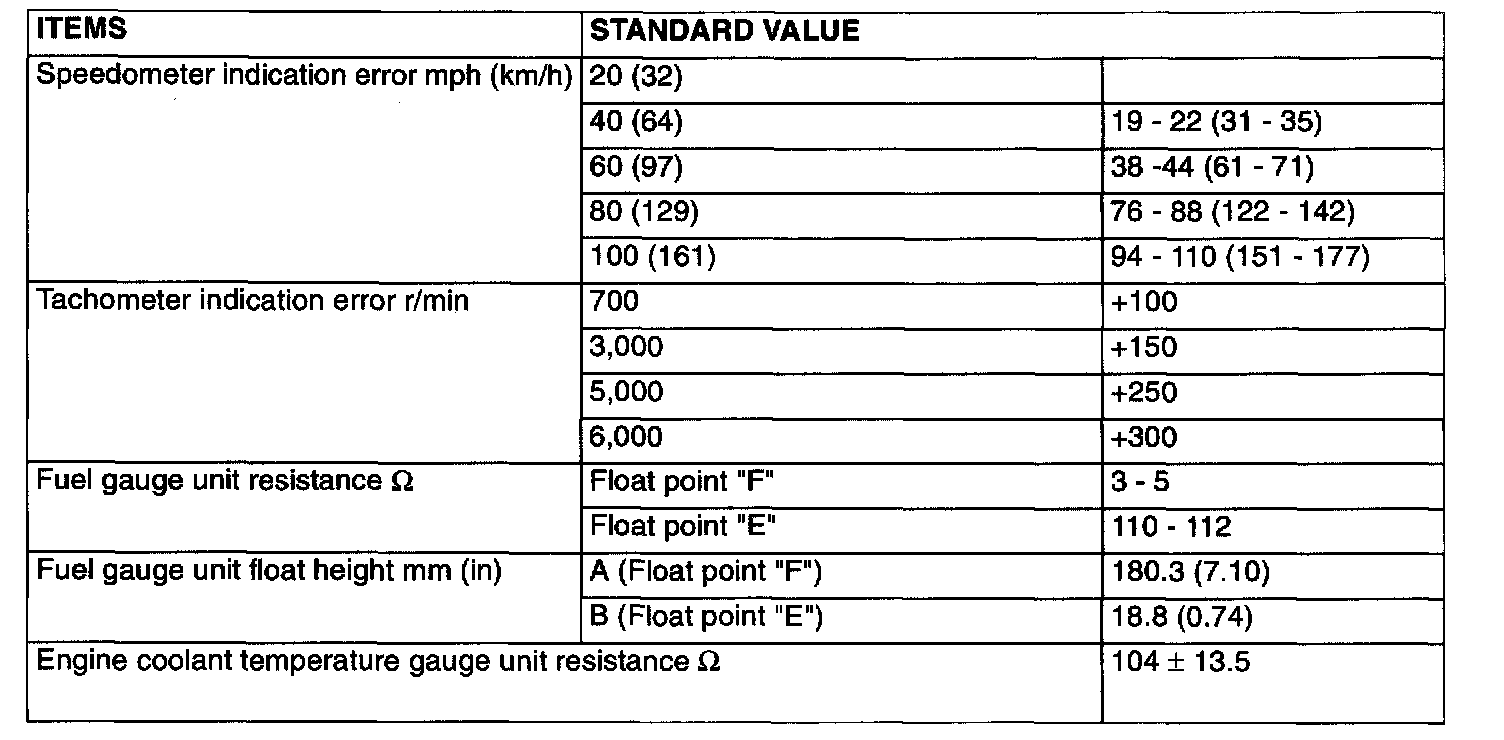

Service Specifications (Part 2):
