Parking Brake Warning Switch: Testing and Inspection

1. Remove the floor console.

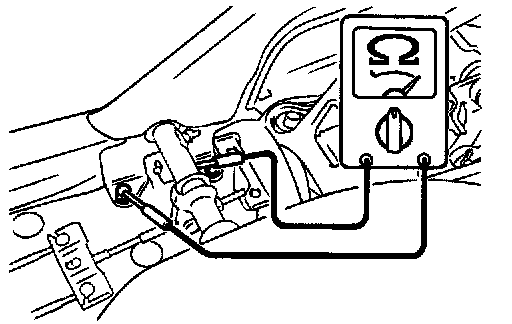

2. Check for continuity between the parking brake switch terminal and the switch mounting bolt.

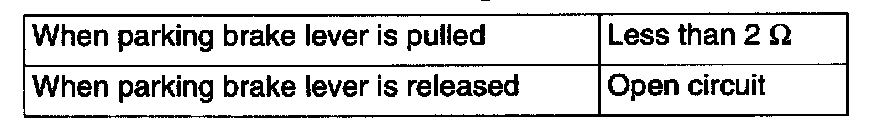

When parking brake lever is pulled: less than 2 ohms
When parking brake lever is released: Open circuit
