Dimmer Switch: Testing and Inspection

RHEOSTAT INSPECTION

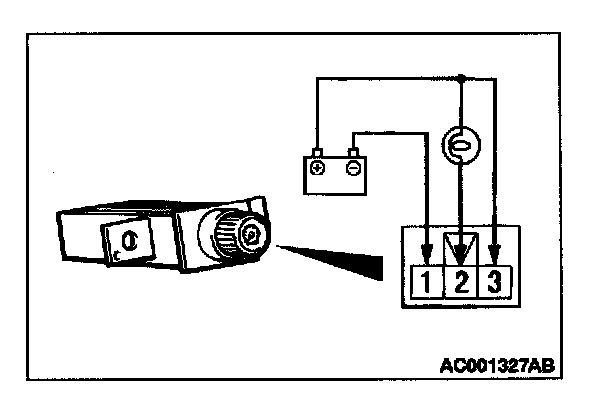

1. Connect the battery and the test bulb (40 W) as shown in the illumination.
2. Operate the rheostat, and if brightness changes smoothly without switching off, rheostat function is normal.
