Brake Switch (Cruise Control): Testing and Inspection




STOPLIGHT SWITCH
1. Disconnect the connector.

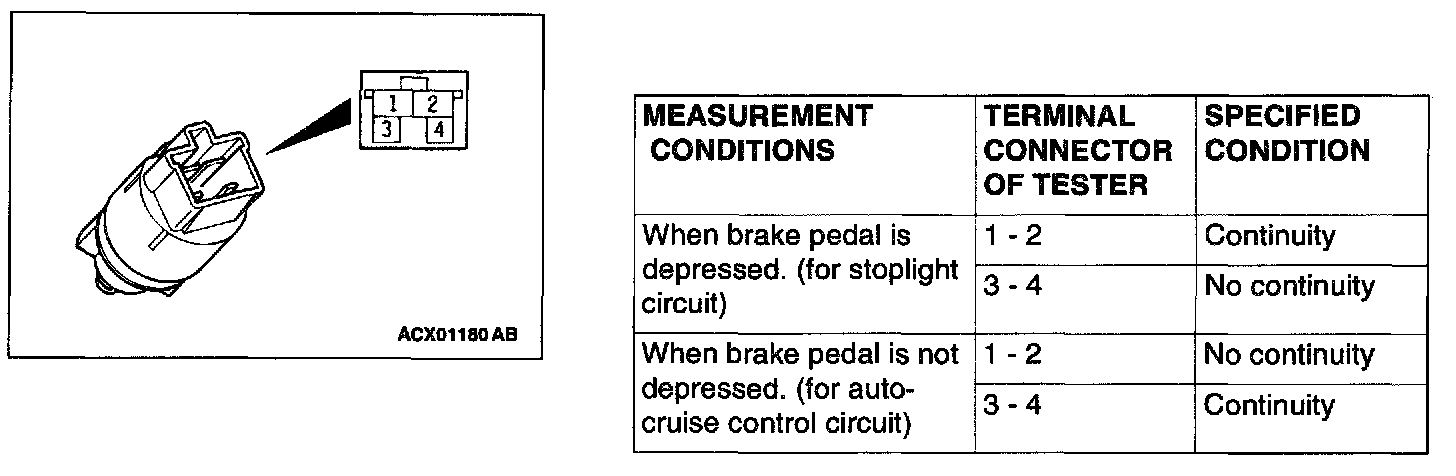

2. Check for continuity between the terminals of the switch.
