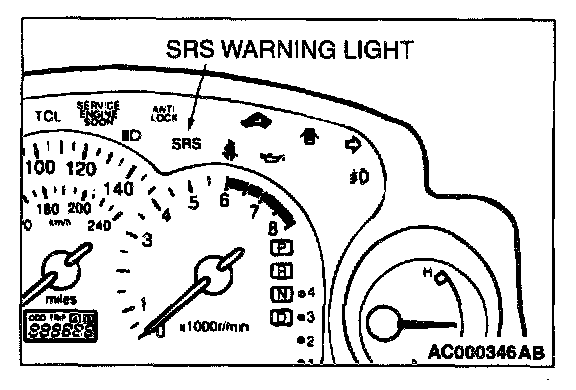

SRS Warning Light Check
SRS Warning Light Check
1.
Check that the SRS warning light illuminates when the ignition switch is in the "
ON
" position.
2.
Check that it illuminates for approximately
seven seconds
and then goes out.
3.
If not, check for diagnostic trouble codes.
