Description of On-Board Diagnostics

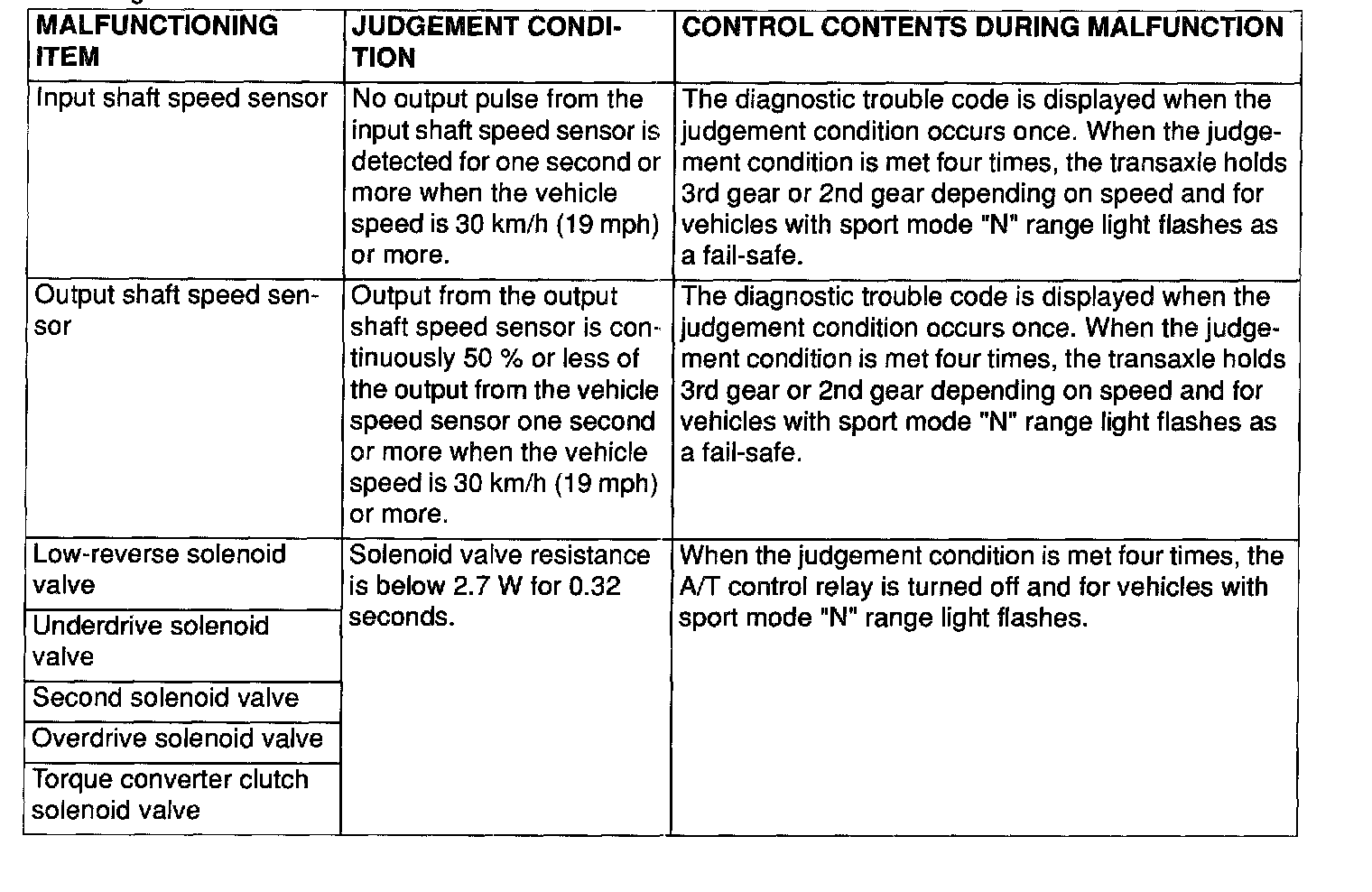

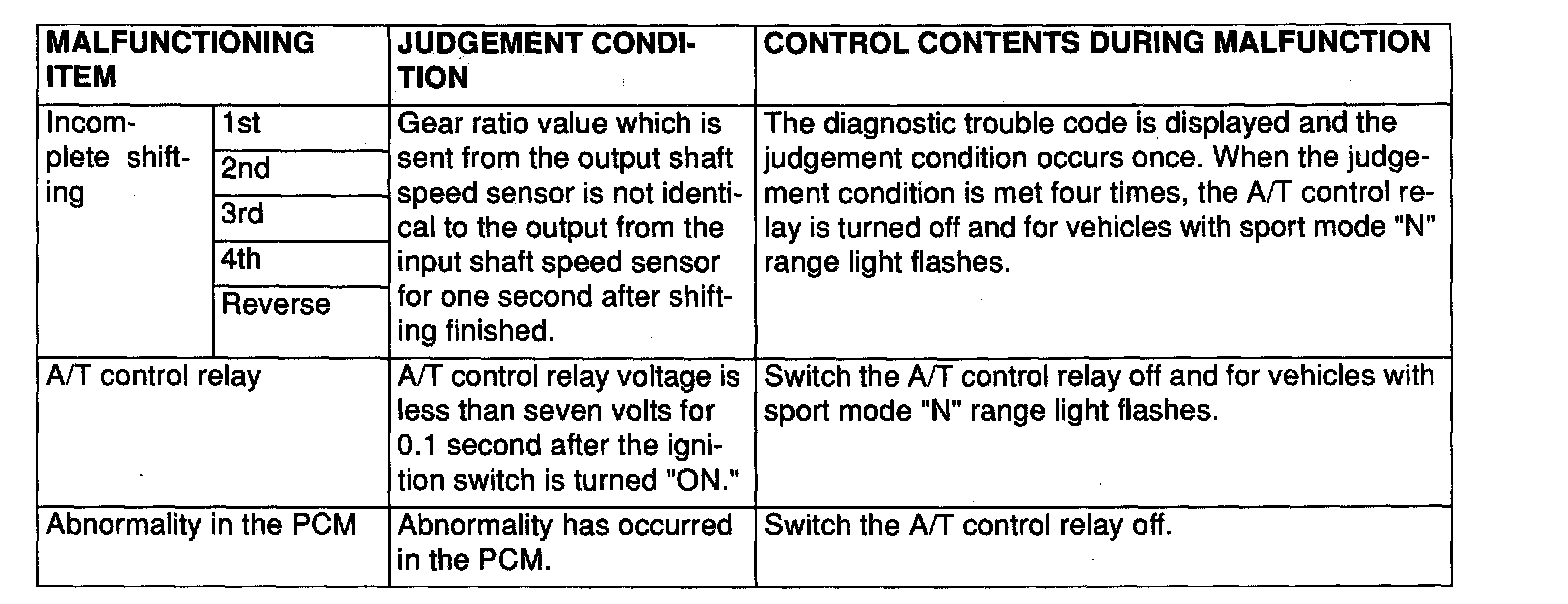

FAIL-SAFE/BACKUP FUNCTION
When malfunctions of the main sensors or actuators are detected by the PCM, the transaxle is controlled by pre-set control logic to maintain safe conditions for driving.
