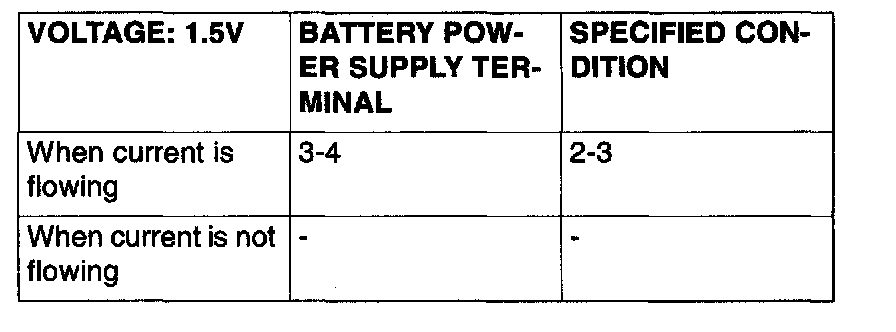

Ignition Coil Power Transistor Continuity Check

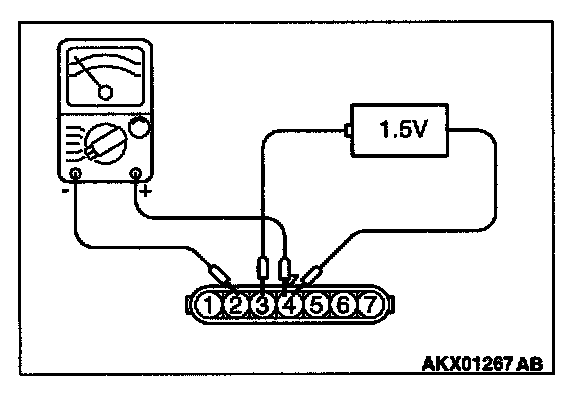

NOTE: An analog-type ohmmeter should be used.

NOTE: Connect the negative (-) probe of the ohmmeter to terminal 2.

CAUTION: This test must be performed quickly (in less than 10 seconds) to prevent coil from burning and ignition power transistor from breaking.

Replace the ignition power transistor if there is a malfunction.
