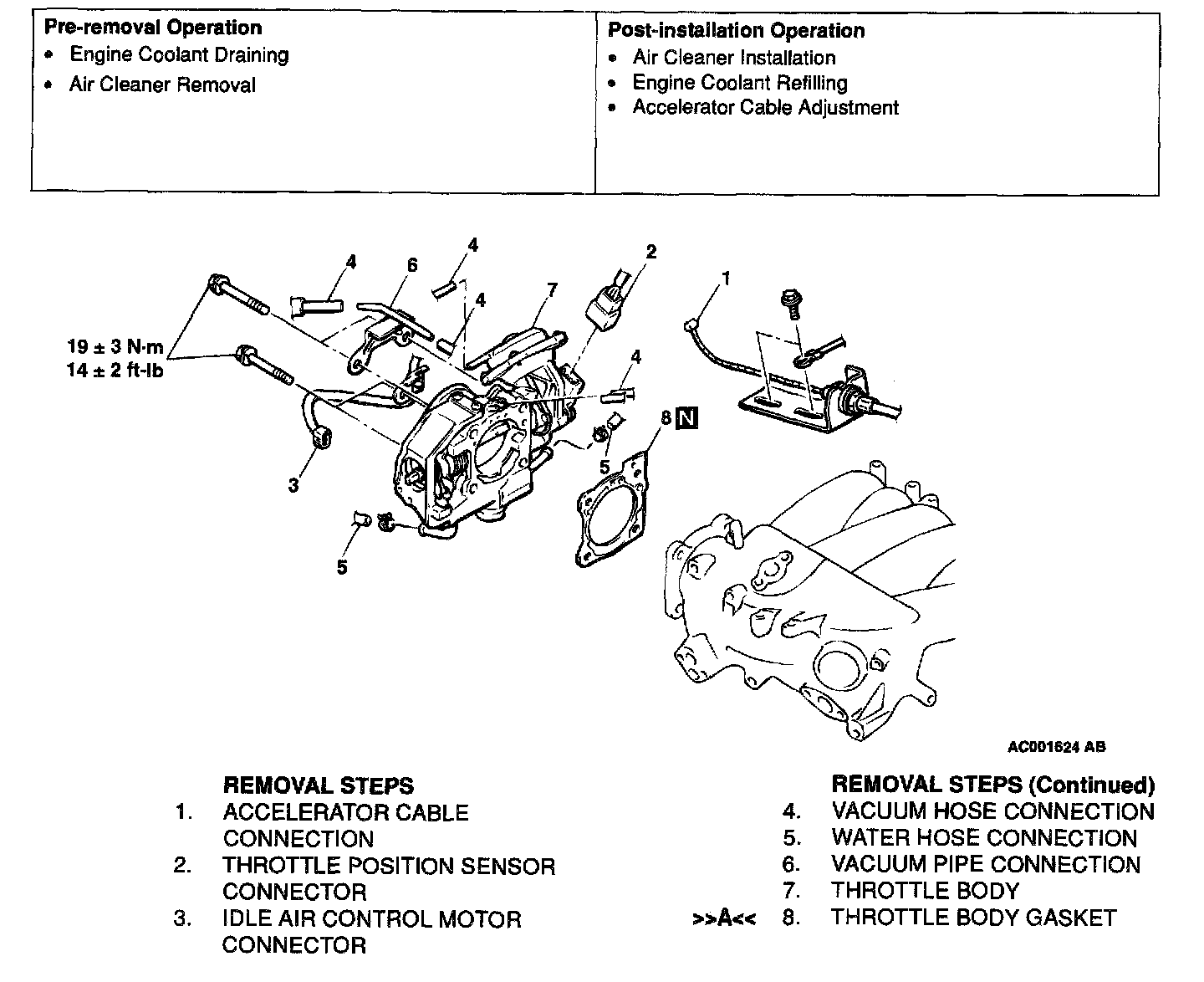

Removal and Installation
Removal And Installation:
INSTALLATION SERVICE POINT
>>A<
CAUTION: Poor idling etc. may result if the throttle body gasket is installed incorrectly.

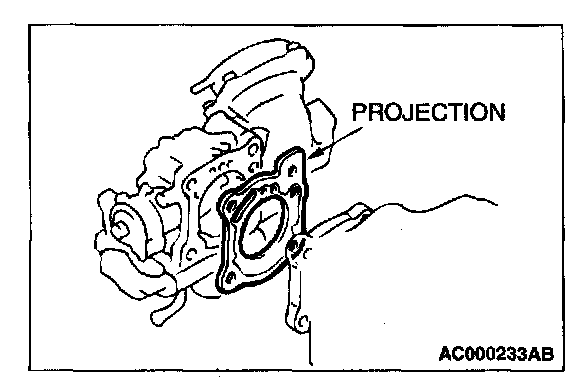

Install the throttle body gasket as shown in the illustration.
INSTALLATION SERVICE POINT
>>A<
CAUTION: Poor idling etc. may result if the throttle body gasket is installed incorrectly.
Install the throttle body gasket as shown in the illustration.
