Fuel Pump Connector Disconnection (Fuel Pressure Release)

WARNING: When moving the fuel pipe, etc., release fuel pressure to prevent fuel spray.

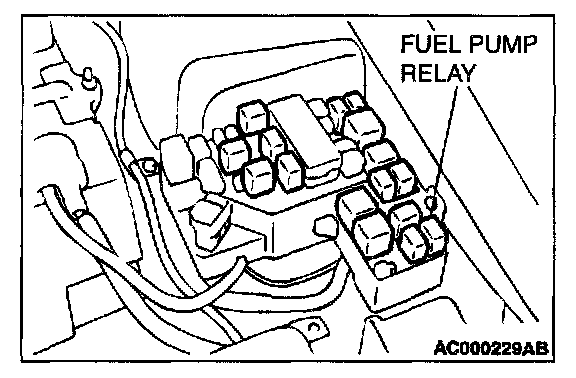

1. Disconnect the fuel pump relay.
2. Start the engine and let it run until it stops naturally. Turn the ignition switch "LOCK" (off) position.
3. Connect the fuel pump relay.
