Fuel Supply

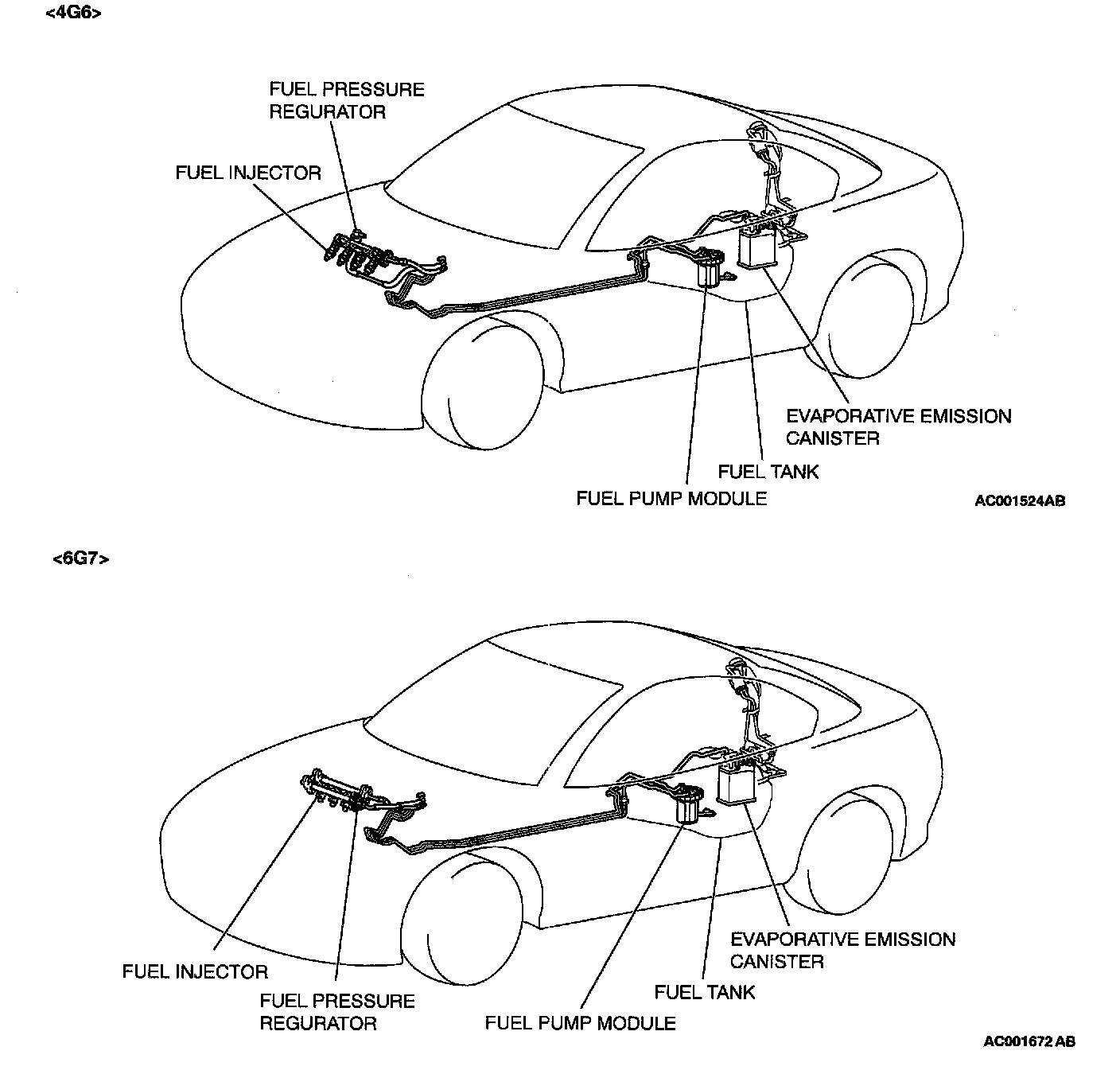

GENERAL DESCRIPTION
- The fuel tank is located under the floor of the rear seats to provide increased safety and a wider luggage space.
- A fuel cut-off valve has been adopted to prevent fuel from leaking out in case of a collision.
- A plastic fuel tank has been adopted to reduce weight,and improve anti-corrosion effectiveness.
- A fuel pump module, which unifies fuel pump, fuel filter, reservoir cup and fuel gauge unit,has been adopted to lighten weight and improve serviceability.
