Inspection Procedure 3

The Service Engine Soon/Malfunction Indicator Lamp Does Not Illuminate Right after the Ignition Switch Is Turned to the "ON" Position.

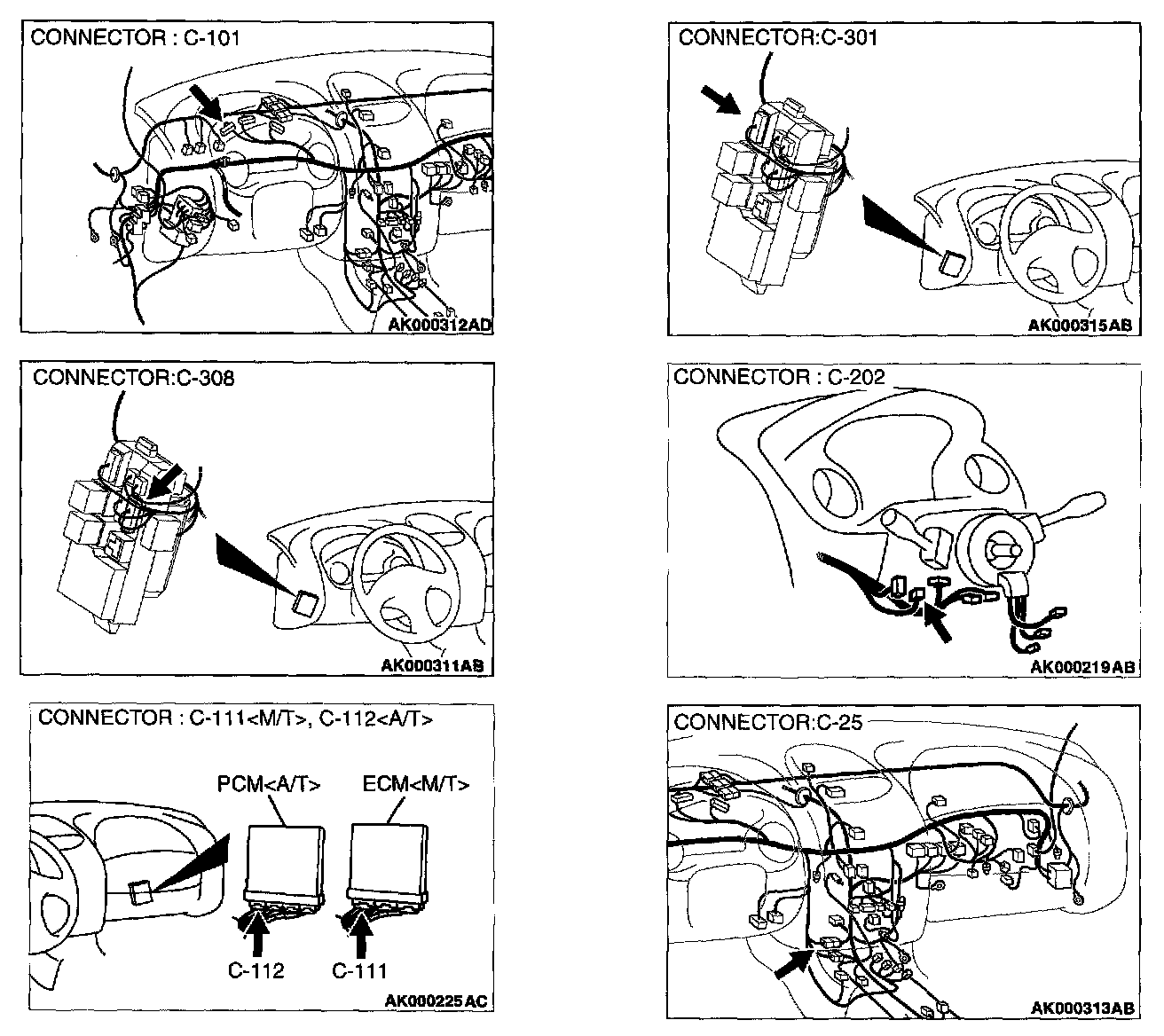

Connectors:

CIRCUIT OPERATION

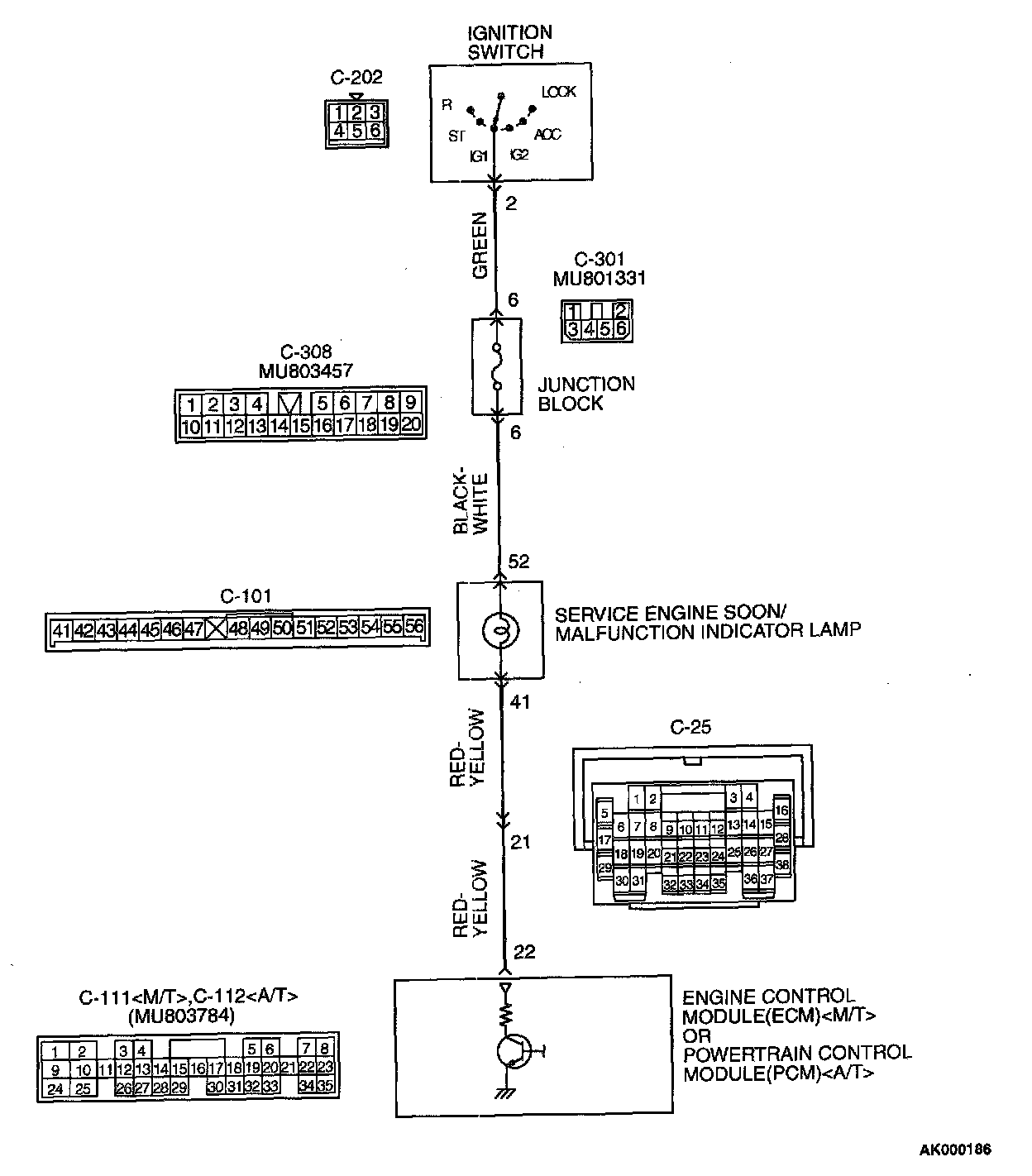

The service engine soon/malfunction indicator lamp power is supplied from the ignition switch. The ECM or PCM controls the ground of the service engine soon/malfunction indicator lamp by turning the power transistor in the ECM or PCM ON and OFF.

COMMENT
- The ECM or PCM causes the service engine soon/malfunction indicator lamp to illuminate for 5 seconds immediately after the ignition switch is turned to the "ON" position occurred.

TROUBLESHOOTING HINTS (The most likely causes for this case:)
- Burnt-out bulb.
- Defective service engine soon/malfunction indicator lamp circuit.
- Malfunction of the ECM or PCM .

DIAGNOSIS

Required Special Tool:
MB991502: Scan Tool (MUT-II)

STEP 1. Using scan tool MB991502, check data list item 16: Power Supply Voltage.

CAUTION: To prevent damage to scan tool MB991502, always turn the ignition switch to the "LOCK" (OFF) position before. connecting or disconnecting scan tool MB991502.

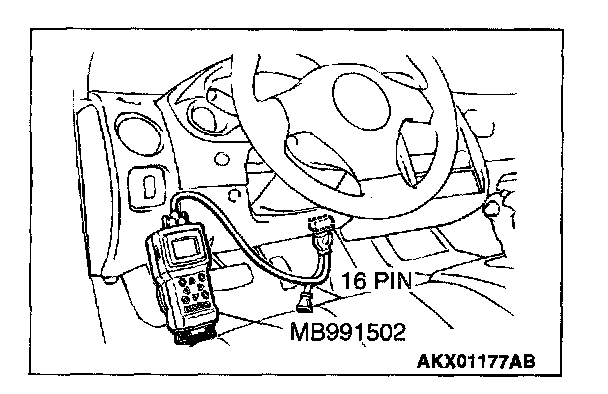

1. Connect scan tool MB991502 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Set scan tool MB991502 to the data reading mode for item 16, Power Supply Voltage.
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the voltage normal?

YES: Go to Step 2.

NO: Refer to INSPECTION PROCEDURE 29 - Power Supply System and Ignition Switch-IG System.

STEP 2. Check the burned-out bulb.

Q: Is the valve normal?

YES: Go to step 3.

NO: Replace the bulb. Then confirm that the malfunction symptom is eliminated.

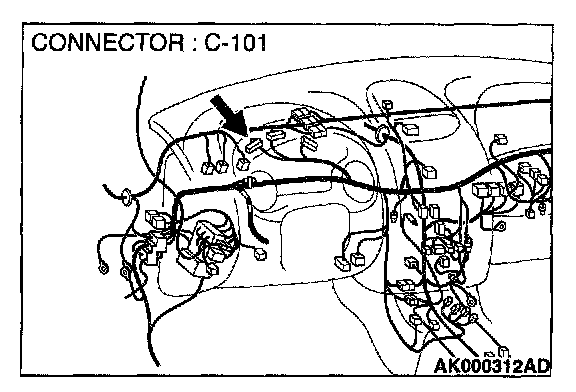

STEP 3. Check connector C-101 at the combination meter for damage.

Q: Is the connector in good condition?

YES: Go to step 4.

NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.

STEP 4. Check the power supply voltage at combination meter harness side connector C-101.
1. Disconnect the connector C-101 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.

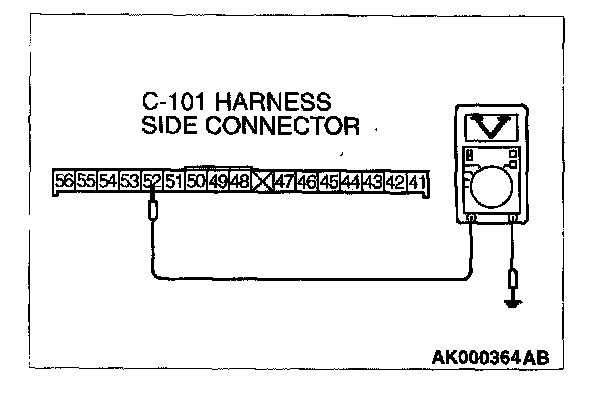

3. Measure the voltage between terminal 52 and ground. Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the voltage normal?

YES: Go to Step 5.

NO: Check harness connectors C-308 and C-301 at intermediate connector for damage, and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connectors are in good condition, repair harness wire between ignition switch connector C-202 terminal 2 and combination meter connector C-101 terminal 52 because of open circuit. Then confirm that the malfunction symptom is eliminated.

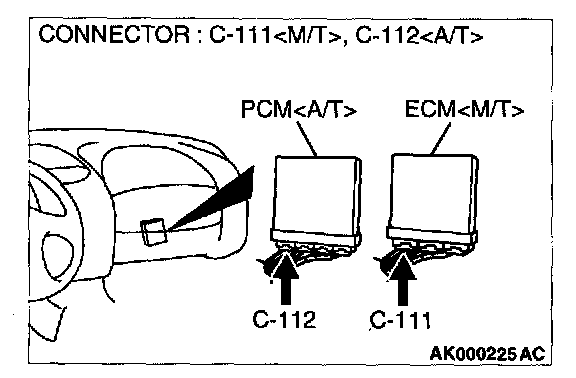

STEP 5. Check connector C-111 at ECM or connector C-112 at PCM for damage.

Q: Is the connector in good condition?

YES: Go to Step6.

NO: Repair or replace it. Refer to Harness Connector Inspection. Then confirm that the malfunction symptom is eliminated.

STEP 6. Check the power supply voltage ECM connector C-111 or PCM connector C-112 .
1. Disconnect the connector C-111 or C-112 and measure at the harness side.
2. Turn the ignition switch to the "ON" position.

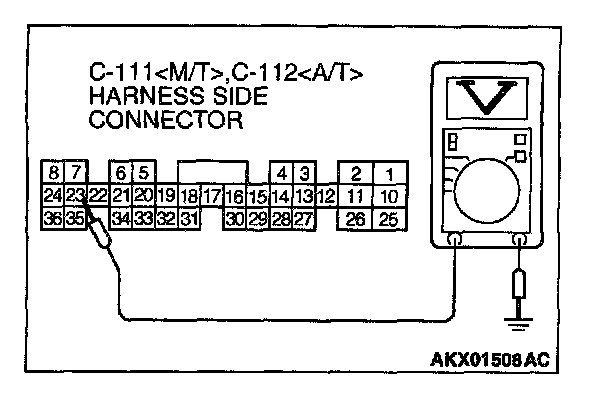

3. Measure the voltage between terminal 22 and ground.
- Voltage should be battery positive voltage.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the voltage normal?

YES: Replace the ECM or PCM. Then confirm that the malfunction symptom is eliminated.

NO: Check harness connectors C-25 at intermediate connector for damage, and repair or replace as required. Refer to Harness Connector Inspection. If intermediate connectors is in good condition, repair harness wire between combination meter connector C-101 terminal 41 and ECM connector C-111 terminal 22 or PCM connector C-112 terminal 22 because of open circuit. Then confirm that the malfunction symptom is eliminated.
