Symptom Chart
Symptom Chart
NOTE:
Check that the PCM ground circuit is normal before checking for the cause of the problem.

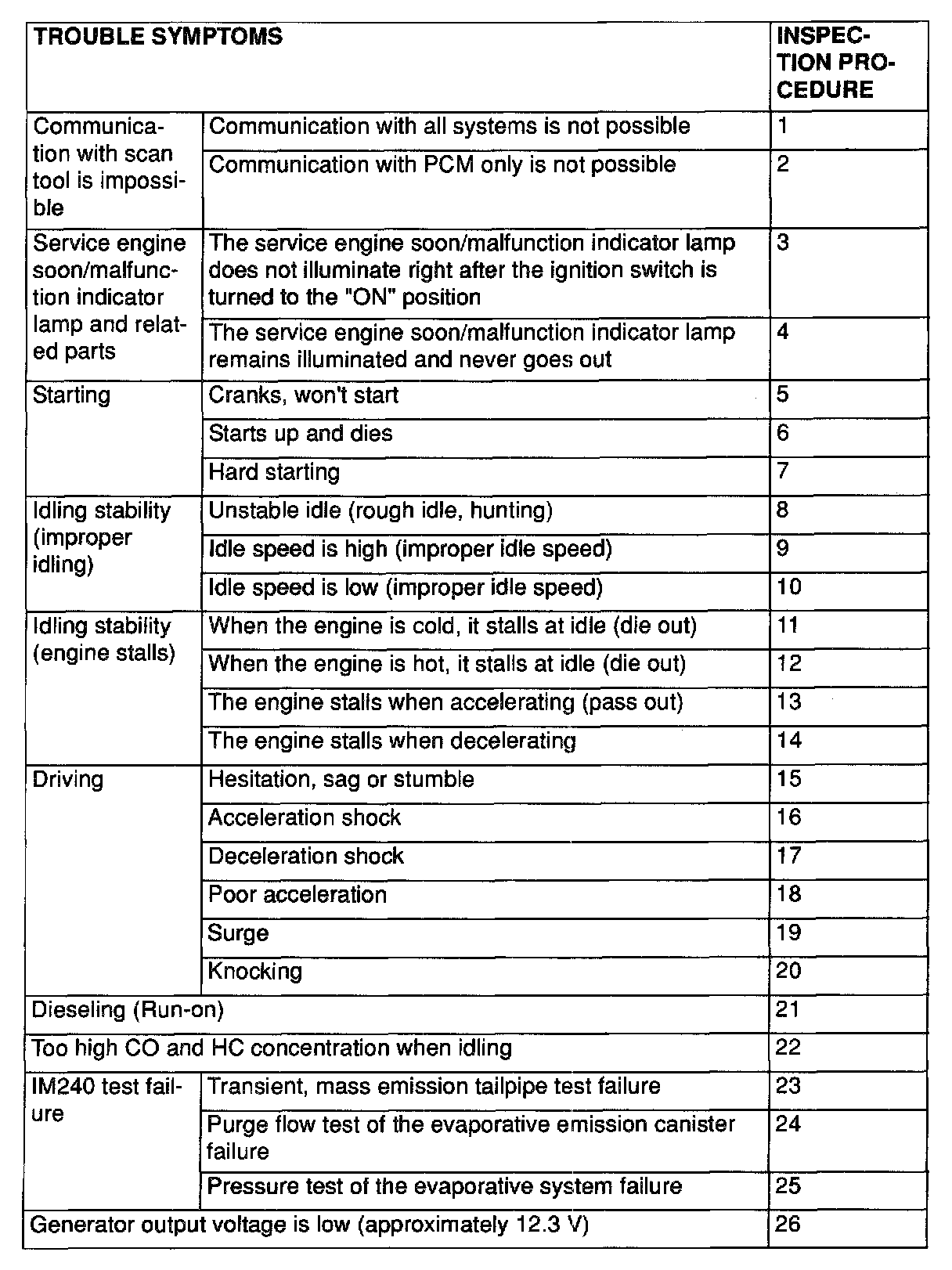

Symptom Chart (Part 1 of 2):

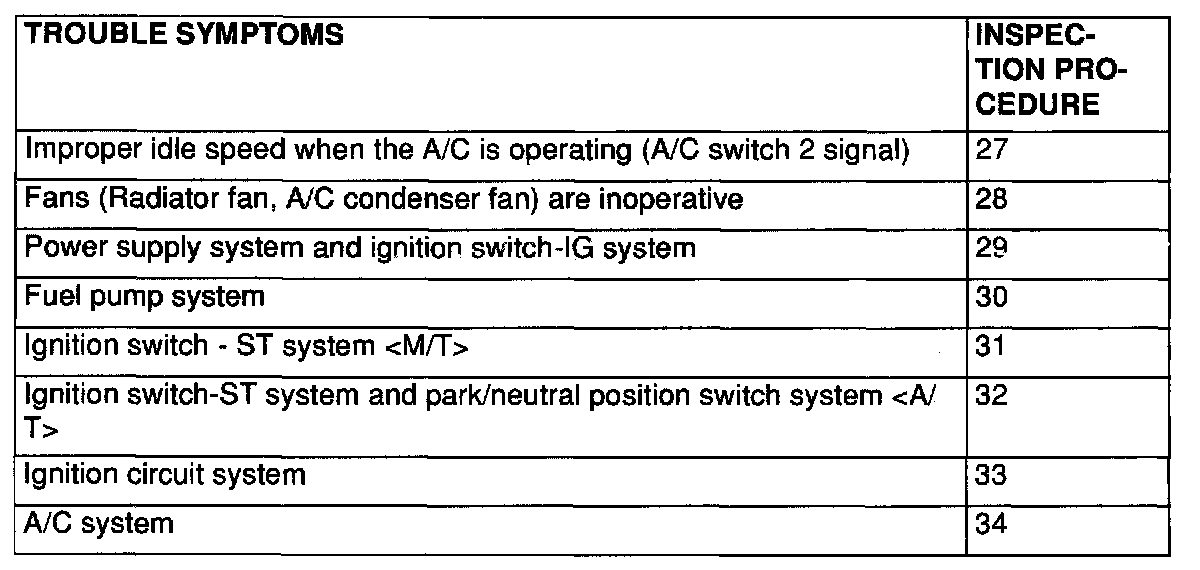

Symptom Chart (Part 2 of 2):
