General Description

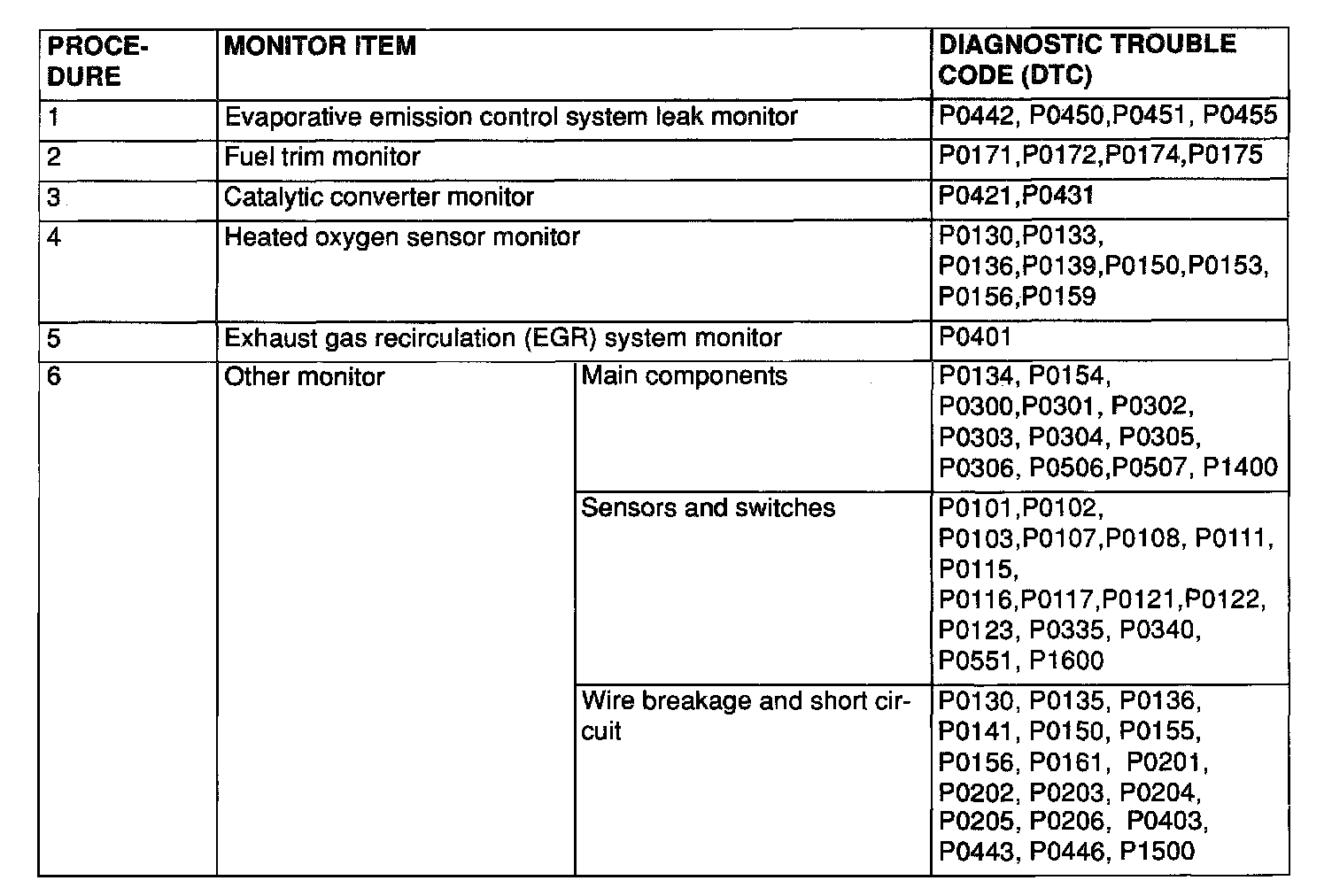

OBD-II DRIVE CYCLEAll kinds of diagnostic trouble codes (DTCs) can be monitored by carrying out a test drive according to the following six drive cycle pattern. In other words, doing such a drive regenerates any kind of trouble which involves illuminating the Service Engine Soon/Malfunction Indicator Lamp and verifies the repair procedure has eliminated the trouble (the Service Engine Soon/Malfunction Indicator Lamp is no longer illuminated).
CAUTION: Two technicians should always be in the vehicle when carrying out a test drive.
NOTE: Check that the diagnosis trouble code (DTC) is not output before traveling in the drive cycle pattern. Erase the DTC if it has been output
