Description of On-Board Diagnostics
>>
Fail-Safe Function Reference Table
Fail-Safe Function Reference Table

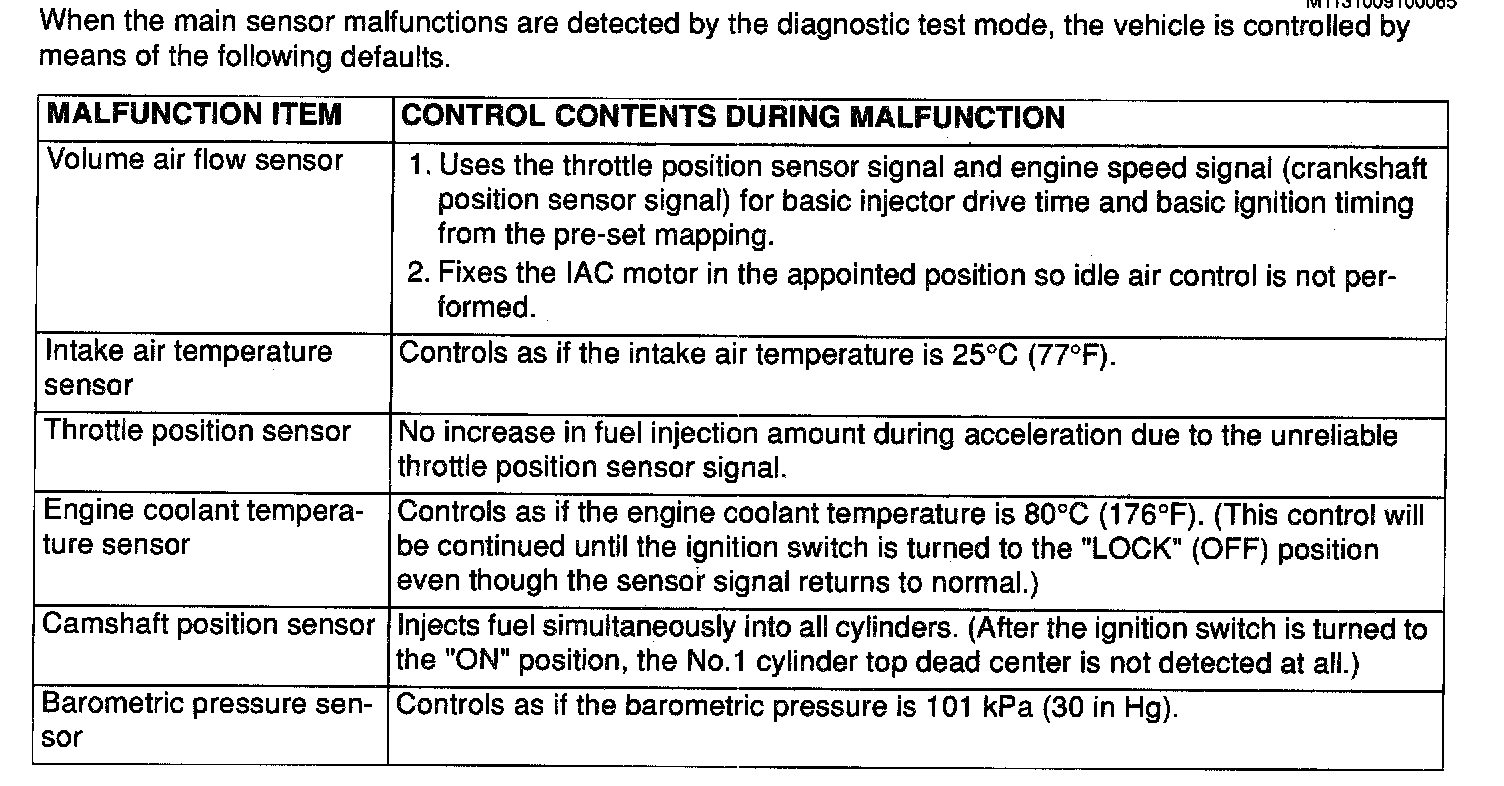

Fail-Safe/Backup Function Table (Part 1 of 2):

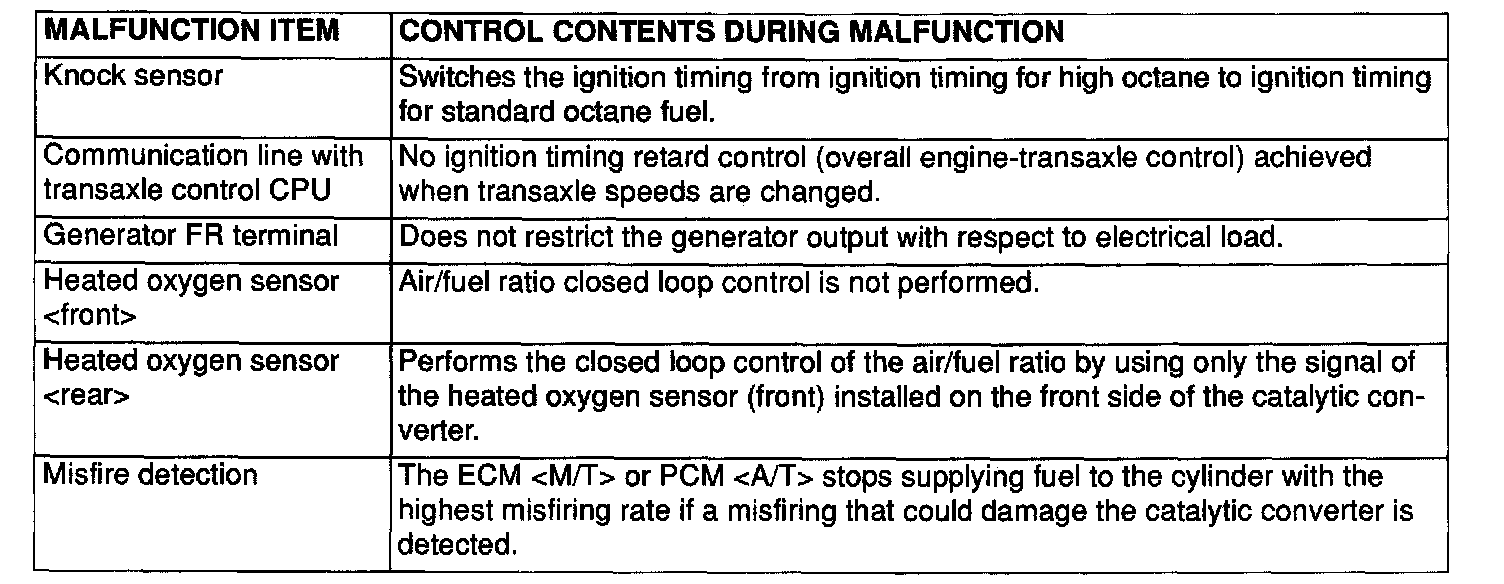

Fail-Safe/Backup Function Table (Part 2 of 2):
